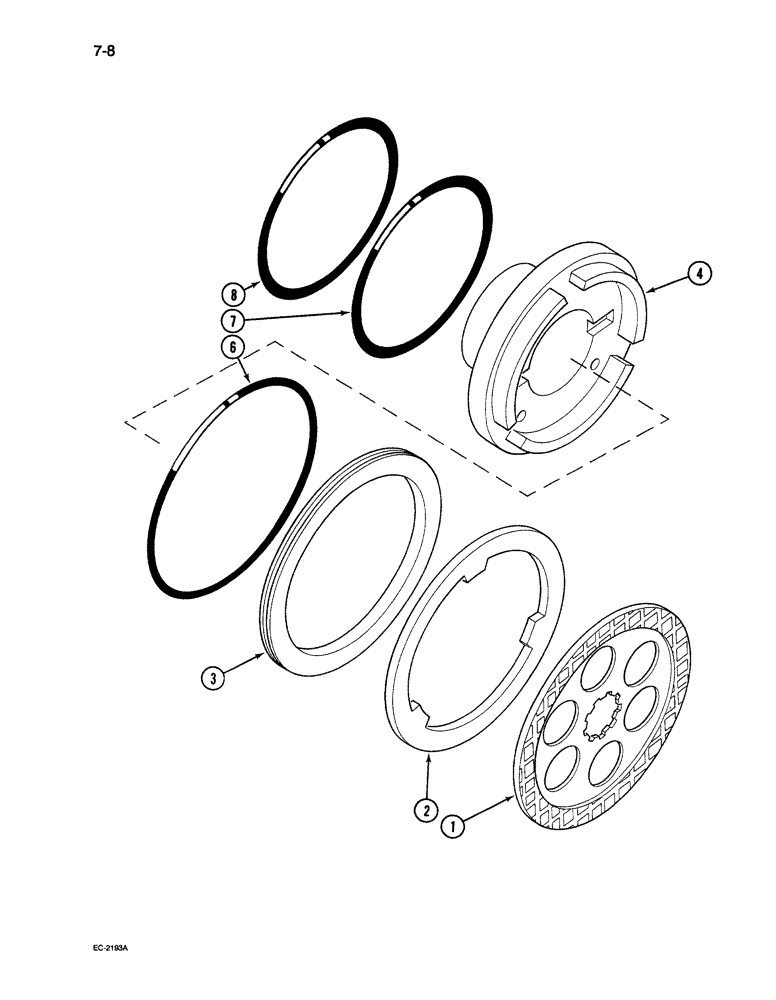

Запчасти Case 380B (7-08) - DIFFERENTIAL BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

brake center

2шт.

2

399736R3

RING

brake (Assemble with numbered face inboard)

2шт.

3

114621C1

PISTON

brake

2шт.

4

399770R2

BEARING CARRIER

CARRIER - differential bearing, right hand (See Figure 6-32)

1шт.

4

399769R2

BEARING CARRIER

CARRIER - differential bearing, left hand (See Figure 6-32)

1шт.

6

238-6274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

2шт.

Part of P/N 539535R91 Service Kit

1шт.

7

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

Part of P/N 539535R91 Service Kit

1шт.

8

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 ID x 3/16 inch wide

2шт.

Part of P/N 539535R91 Service Kit

1шт.

539535R91

O-RING KIT

service, brake o-rings (Includes: Ref.6, 7 and 8)

1шт.

6

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

2шт.

Optional heavy duty o-rings for abnormal brake usage

1шт.

7

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

2шт.

Optional heavy duty o-rings for abnormal brake usage

1шт.

8

1536081C1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 8, 90 Duro

7-1/2 x 3/16 inch wide, class 8

2шт.

Optional heavy duty o-rings for abnormal brake usage

1шт.
