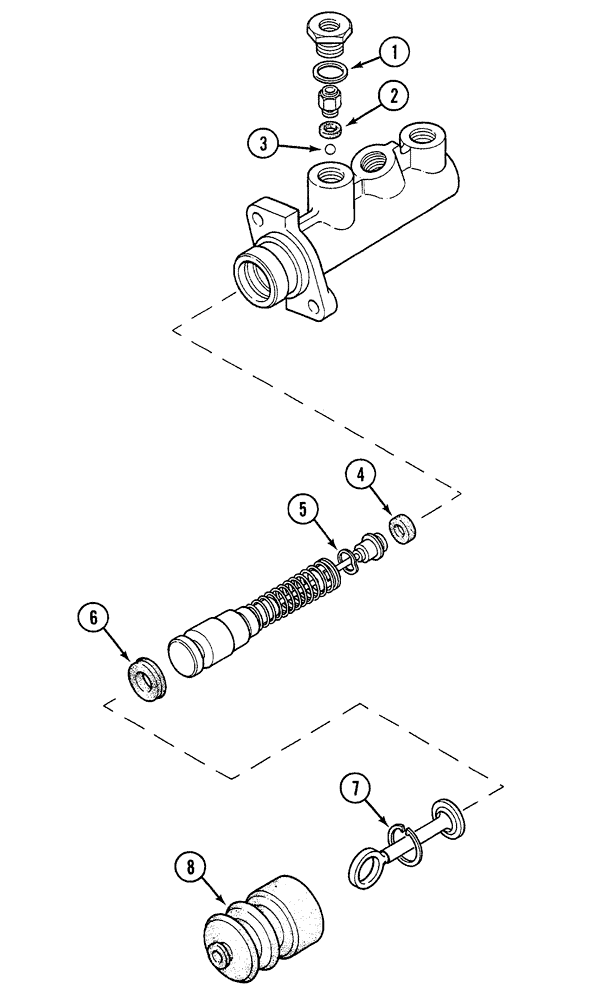

Запчасти Case 380B (7-06) - BRAKE MASTER CYLINDER (07) - BRAKES

1287843C91

MASTER CYLINDER

CYLINDER,MASTER ASSEMBLY - brake

2шт.

1

NSS

NOT SOLD SEPARAT

GASKET - flow valve (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow valve (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - flow valve (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP - valve (Order kit 1288228C1)

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

8

1288242C1

BELLOWS

BOOT - dust, brake master cylinder

1шт.

Part of P/N 1288228C1 Service Kit

1шт.

1288228C1

REPAIR KIT

KIT - service, brake master cylinder (Includes: Ref.1 through 8)

1шт.
