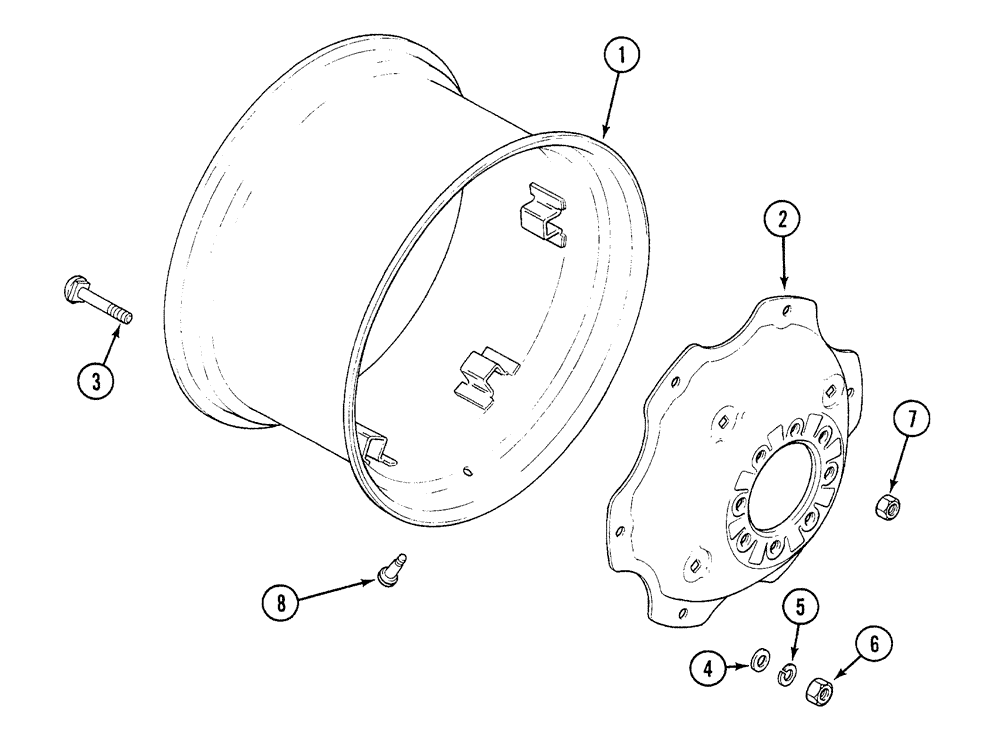

Запчасти Case 380B (6-58) - REAR WHEELS (06) - POWER TRAIN

1

1265033C92

RIM

WHEEL wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

2

374806R1

DISC, WHEEL

24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/15 x 9/64 inch

2шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2)

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A

2шт.
