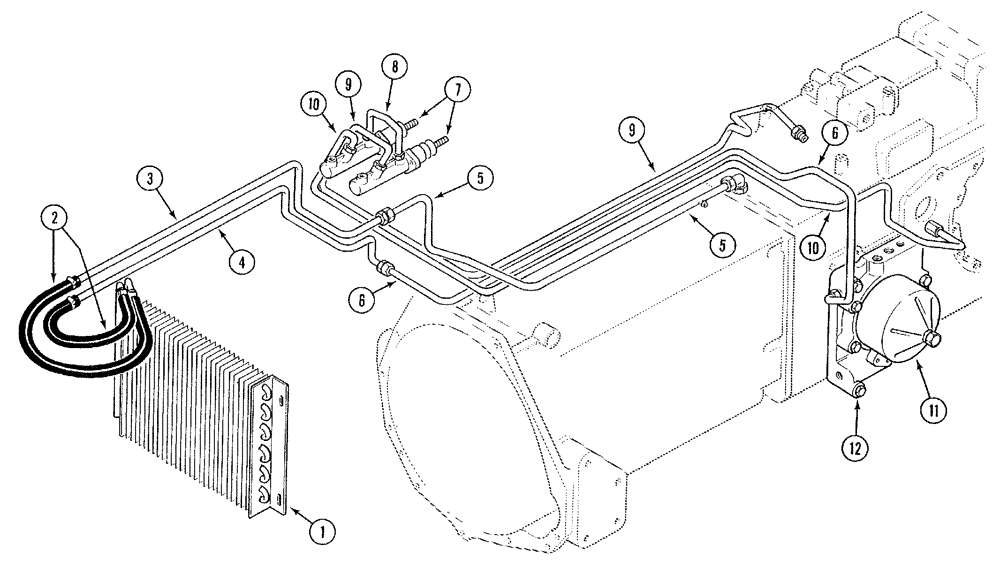

Запчасти Case 380B (1-10) - PICTORIAL INDEX - OIL COOLER AND BRAKE TUBES (00) - PICTORIAL INDEX

1

Oil Cooler, Page 8-5

1шт.

2

Oil Cooler Inlet and Outlet Hoses, Page 8-5

1шт.

3

Oil Cooler Front Return Tube, Page 8-5

1шт.

4

Oil Cooler Front Supply Tube, Page 8-5

1шт.

5

Oil Cooler Rear Return Tube, Page 8-5

1шт.

6

Oil Cooler Rear Supply Tube, Page 8-5

1шт.

7

Brake Master Cylinders, Page 7-7

1шт.

8

Master Cylinder Equalizer Tube, Page 7-5

1шт.

9

Right Hand Brake Tube, Page 7-5

1шт.

10

Lett Hand Brake Tube, Page 7-5

1шт.

11

Hydraulic Oil Filter, Page 8-3

1шт.

12

Multiple Control Valve, Page 8-7, 8-9

1шт.
