Запчасти Case 425 (120) - HYDRAULIC PUMP, TWELVE GALLON PER MINUTE CAPACITY (35) - HYDRAULIC SYSTEMS

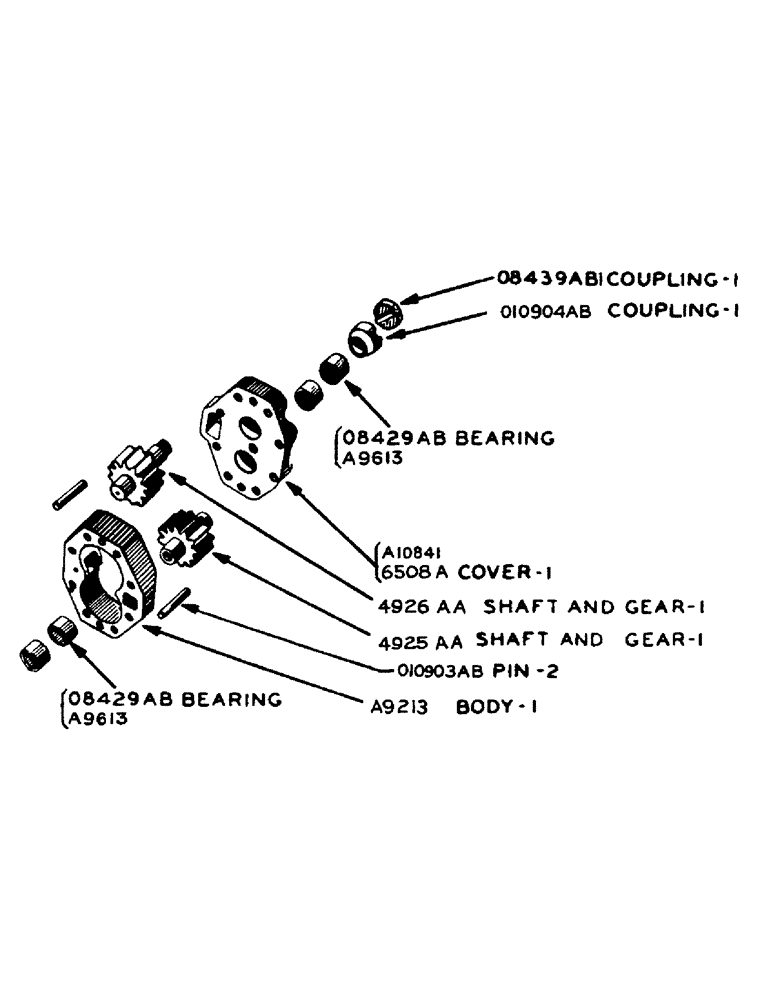

Схема запчастей Case 425 - (120) - HYDRAULIC PUMP, TWELVE GALLON PER MINUTE CAPACITY (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

A9213

BODY

- hydraulic pump

1шт.

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING - hydraulic pump shaft (BCASJ 7235) see O8429AB

4шт.

A10841

COVER

- hydraulic pump body (For use with A9613 bearings) see 6508A

1шт.

6508A

COVER

- hydraulic pump body (For use with O8429AB bearings) (See A10841)

1шт.

3/8" x 2-1/2" N.C. hex. bolt w/lockwasher

3шт.

3/8" x 3-1/4" N.C. hex. bolt w/lockwasher

5шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington no. GB-1412X) (See A9613)

4шт.

O8439AB1

X

COUPLING - hydraulic pump drive

1шт.

O10903AB

PIN

- dowel, hydraulic pump body

2шт.

O10904AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O10905AB

X

SNAP RING - hydraulic pump drive coupling

1шт.

4925AA

SHAFT

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

4926AA

SHAFT

IDLER GEAR AND SHAFT - hydraulic pump

1шт.

Выбрано товаров: 13
