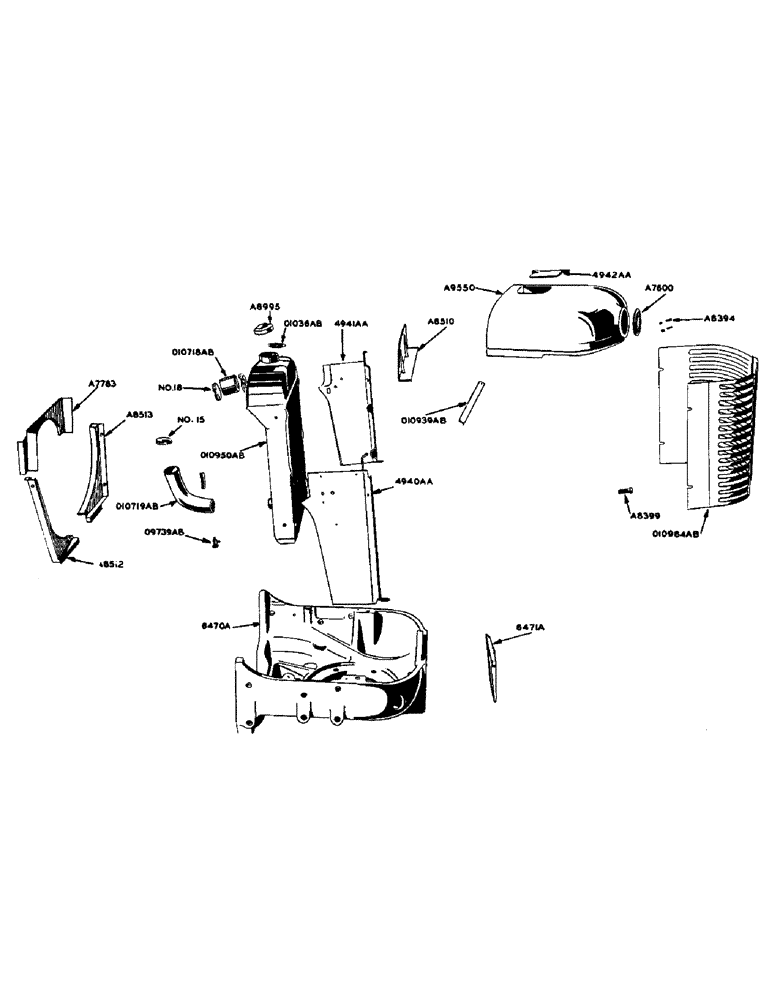

Запчасти Case 425 (070) - RADIATOR AND GRILLE (10) - ENGINE

A7600

EMBLEM CASE/IH

MEDALLION - grille

1шт.

A7783

SHROUD - radiator, upper

1шт.

1/4" - 20 Tinnerman speed grip nut - their #C7988 - 1420

4шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" x 5/8" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

A8394

PINS AND CLIPS - for medallion (Set of 4)

1шт.

A8510

BAFFLE - radiator upper

1шт.

1/4" x 1/2" N.C. rhd. mach. screw w/hex. nut

2шт.

1/4" x 1/2" N.F. rhd. mach. screw

2шт.

1/4" Shakeproof int. - ext. tooth lockwasher #4014-20-00

4шт.

A8512

SHROUD - radiator, R.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

3шт.

1/4" - 20 Tinnerman speed grip nut (Their no. C7988-1420)

3шт.

A8513

SHROUD - radiator, L.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" - 20 Tinnerman speed grip nut (Their no. C7988-1420)

2шт.

A8995

CAP

- radiator filler

1шт.

A9550

COVER - radiator grille

1шт.

1/4" - 20 Tinnerman speed grip nut - their #C7988-1420

4шт.

1/4" x 5/8" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

O1036AB

X

GASKET - radiator filler cap

1шт.

O6364AB

FLANGE - radiator filler neck

1шт.

O9739AB

X

VALVE - water drain, for radiator (1/4" P.T.)

1шт.

O10718AB

X

HOSE - radiator inlet

1шт.

No. 18 hose clamp (2-7/8" O.D. hose)

2шт.

O10719AB

HOSE

- radiator to water pump

1шт.

No. 15 hose clamp (2-3/8" O.D. hose)

2шт.

O10939AB

BRACE - radiator side member, top

1шт.

O10950AB

RADIATOR

1шт.

O10964AB

GRILLE - radiator

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

4шт.

O6480HT

X

SPACER - radiator grille bolt

1шт.

4940AA

MEMBER - radiator side, R.H.

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt w/lockwasher

2шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

1шт.

1/4" - 20 Tinnerman speed grip nut - #C7988-1420

2шт.

4941AA

MEMBER - radiator side, L.H.

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt w/lockwasher

2шт.

5/8" x 7/8" N.C. hex. bolt w/lockwasher

1шт.

1/4" - 20 Tinnerman speed grip nut - #C7988-1420

2шт.

4942AA

X

DOOR - radiator filler cap

1шт.
