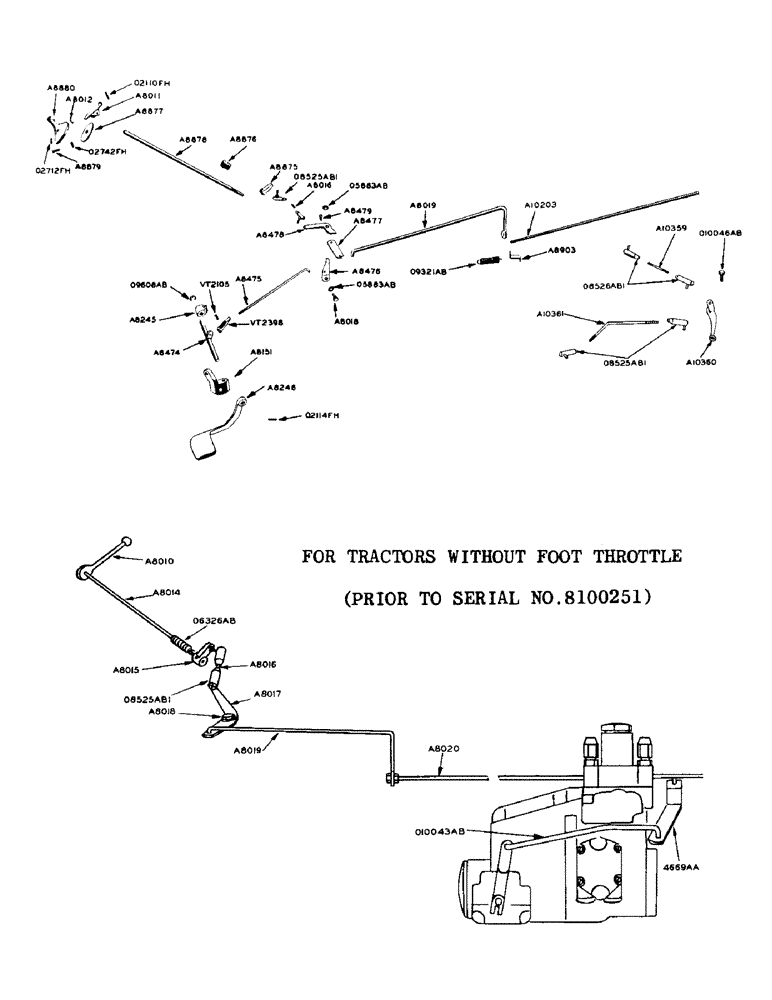

Запчасти Case 425 (046) - POWRCEL DIESEL ENGINE, THROTTLE CONTROL, FOR TRACTORS WITHOUT FOOT THROTTLE, PRIOR TO S/N 8100251 (10) - ENGINE

A8010

LEVER - hand, throttle control (Prior to serial no. 8067630) see A8880

1шт.

A8011

LOCK - throttle shut-off

1шт.

A8012

SPRING

- throttle shut-off lock

1шт.

A8014

SHAFT - throttle control (3/8" dia.) (In steering column) (Prior to serial no. 8067630) see A8878

1шт.

3/8" N.F. hex. nut

2шт.

3/8" plain washer

1шт.

A8015

LEVER - throttle, lower end of A8014 shaft (Prior to serial no. 8067630) see A8875

1шт.

1/4" x 3/4" N.C. sq. hd. cup pt. set screw w/hex. jam nut

1шт.

A8016

ROD

- throttle lever ball joint (1/4" x 1-7/16")

1шт.

A8017

BELL CRANK - throttle (Not used with foot throttle) see A8478

1шт.

A8018

STEP BOLT

STUD - A8476 lever

1шт.

A8019

ROD - throttle control, rear

1шт.

3/32" x 3/4" cotter pin

1шт.

A8020

ROD - throttle control, front (Prior to serial no. 8100251) see A10203

1шт.

3/8" N.F. hex. nut

2шт.

3/8" plain washer

2шт.

A8151

SUPPORT - foot throttle shaft

1шт.

1/2" x 2-3/4" N.C. hex. bolt

1шт.

A8245

SUPPORT - foot throttle shaft bearing, L.H.

1шт.

1/2" x 2-3/4" N.C. hex. bolt

1шт.

A8246

PEDAL - foot throttle

1шт.

A8474

SHAFT - foot throttle and lever

1шт.

A8475

ROD - foot throttle control

1шт.

1/16" x 1/2" cotter pin

1шт.

A8476

LEVER - foot throttle control rod, upper

1шт.

A8477

LEVER - throttle rods intermediate (For tractors equipped with foot throttle)

1шт.

A8478

BELL CRANK - throttle control (For tractors equipped with foot throttle)

1шт.

A8479

STUD - throttle control bell crank and intermediate lever (For tractors equipped with foot throttle)

1шт.

3/8" plain washer

1шт.

A8767

SPRING

- foot throttle pedal return (On A8020 rod) (1/2" O.D.) see A10436

1шт.

A8875

LEVER

- throttle, lower end of A8878 shaft (Serial no. 8067630 and after) see A8015

1шт.

1/4" x 3/4" N.C. sq. hd. cup pt. set screw w/hex. jam nut

1шт.

A8876

SPRING

- throttle hand lever, on A8878 shaft (Serial no. 8067630 and after) see O6326AB

1шт.

A8877

X

DISC - friction, throttle hand lever (Serial no. 8067630 and after) see O6320AB

1шт.

A8878

SHAFT - throttle control (1/2" dia.) (In steering column) (Serial no. 8067630 and after) see A8014

1шт.

1/2" N.F. hex. jam nut

2шт.

1/2" plain washer

1шт.

A8879

SCREW - adjusting, throttle control idle stop (Serial no. 8067630 and after)

1шт.

1/4" N.C. hex. jam nut

1шт.

A8880

LEVER - hand, throttle control (Serial no. 8067630 and after) see A8010

1шт.

A8903

CLIP - for A10436 spring

1шт.

A10203

ROD - throttle control, front (Serial no. 8100251 and after) see A8020

1шт.

A10359

LINK - throttle connecting, front rod to lever (Serial no. 8100251 and after)

1шт.

#10-32 mach. screw hex. nut

2шт.

A10360

LEVER - throttle control (Serial no. 8100251 and after) see 4669AA

1шт.

A10361

ROD - fuel pump to lever (Serial no. 8100251 and after)

1шт.

1/4" N.F. hex. jam nut

2шт.

A10436

VALVE SPRING

SPRING - foot throttle pedal return (Used with A8903 clip) (3/4" O.D.) see A8767

1шт.

O5883AB

WASHER - spring, throttle bell crank stud (For tractors not equipped with foot throttle)

1шт.

O5883AB

WASHER - spring, for A8018 and A8479 studs (For foot throttle)

2шт.

O6320AB

X

DISC - friction, throttle hand lever (Prior to serial 8067630) see A8877

1шт.

O6326AB

X

SPRING - throttle hand lever, on A8014 (Prior to serial no. 8067630) see A8876

1шт.

O8525AB1

X

BALL JOINT - throttle bell crank

2шт.

1/4" N.F. hex. nut

1шт.

1/4" lockwasher

2шт.

O8525AB1

X

BALL JOINT - throttle link, Serial Range: pump-lever

1шт.

O8526AB1

X

BALL JOINT - throttle link, front, Serial Range: rod-lever

2шт.

O9608AB

X

"E" RING - retaining, foot throttle shaft

1шт.

O10043AB

ROD - fuel pump throttle (Prior to serial no. 8100251)

1шт.

3/32" x 5/8" cotter pin

2шт.

O10046AB

SCREW - front throttle control lever pivot

1шт.

O2060FH

X

ROLL PIN - (1/8" x 3/4") throttle front rod (For A8767 spring)

1шт.

O2110FH

X

ROLL PIN - (3/16" x 3/4") on throttle control front rod (Prior to serial no. 8100251)

1шт.

O2110FH

X

ROLL PIN - (3/16" x 3/4") on throttle shut-off lock

1шт.

O2114FH

X

ROLL PIN - (1/8" x 1") foot throttle pedal

1шт.

O2712FH

X

ROLL PIN - (5/32" x 3/4") for throttle control hand lever

1шт.

O2742FH

X

ROLL PIN - (1/4" x 3/4") throttle control hand lever stop (Prior to serial no. 8067630)

1шт.

O2742FH

X

ROLL PIN - (1/4" x 3/4") throttle control hand lever idle stop (Serial no. 8067630 and after)

2шт.

VT2105

X

PIN - foot throttle control rod clevis yoke

1шт.

1/16" x 1/2" cotter pin

1шт.

VT2398

X

YOKE - foot throttle control rod clevis

1шт.

4669AA

LEVER - throttle control, front (Prior to serial no. 8100251) see A10360

1шт.
