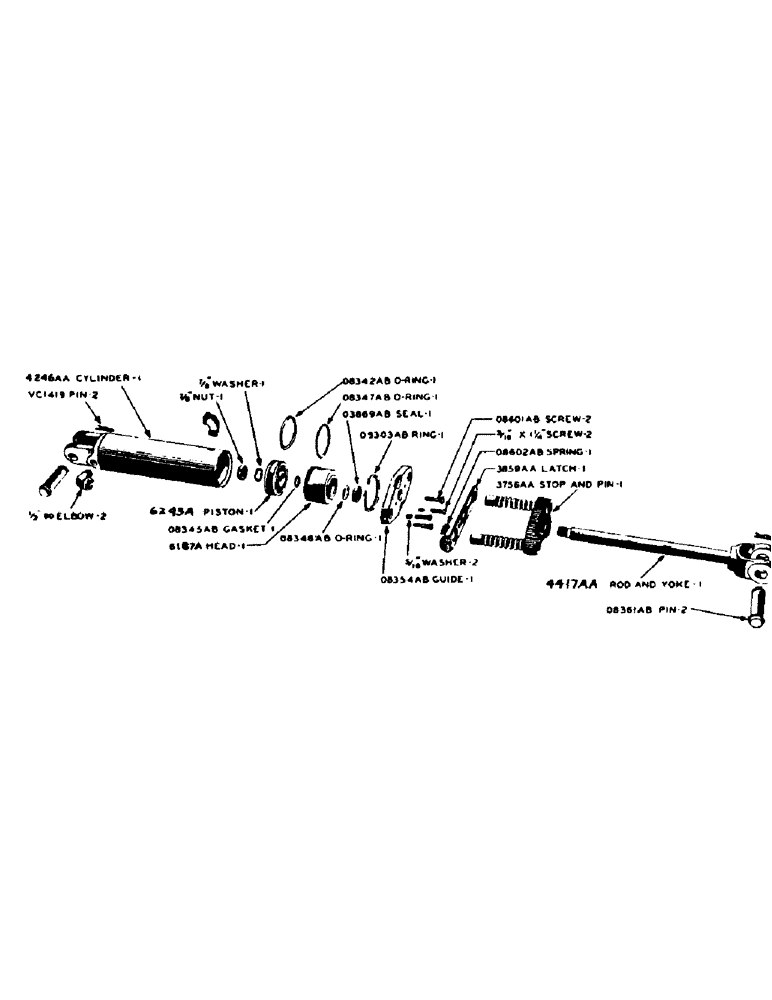

Запчасти Case 425 (135) - B3785AA PORTABLE CYLINDER, 3-1/4 INCH X 8 INCH (35) - HYDRAULIC SYSTEMS

6044A

HEAD (Use 4246AA)

1шт.

6187A

HEAD - hydraulic cylinder, inner

1шт.

Part of Cylinder # B3785AA

1шт.

6243A

PISTON - hydraulic cylinder

1шт.

Part of Cylinder # B3785AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of Cylinder # B3785AA

1шт.

O8342AB

X

"O" RING - piston

1шт.

Part of Cylinder # B3785AA

1шт.

O8345AB

X

GASKET - piston rod

1шт.

Part of Cylinder # B3785AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of Cylinder # B3785AA

1шт.

O8347AB

X

"O" RING - hydraulic cylinder

1шт.

Part of Cylinder # B3785AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of Cylinder # B3785AA

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

O8361AB

X

PIN - hydraulic cylinder yoke end

2шт.

O8601AB

X

SCREW - stop latch

2шт.

Part of Cylinder # B3785AA

1шт.

5/16" Shakeproof lockwasher #1218-4

2шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of Cylinder # B3785AA

1шт.

O9303AB

X

SNAP RING - cylinder head

1шт.

Part of Cylinder # B3785AA

1шт.

VC1419

X

COTTER - hair pin, for O8361AB yoke pin

2шт.

3756AA

STOP AND PIN - hydraulic cylinder limit

1шт.

Part of Cylinder # B3785AA

1шт.

B3785AA

CYLINDER - 3-1/4" x 8" hydraulic portable, Consists of P/N, 6187A, 6243A, 03869AB, 08342AB, 08345AB, 08346AB, 08347AB, 08354AB, 08601AB, 08602AB, 09303AB, 3756AA, 3859AA, 4246AA, 4417AA

1шт.

3859AA

X

LATCH - limit stop

1шт.

Part of Cylinder # B3785AA

1шт.

4246AA

CYLINDER AND HEAD - hydraulic portable

1шт.

Part of Cylinder # B3785AA

1шт.

1/2" - 90 degree street elbow

2шт.

4417AA

ROD AND YOKE - hydraulic cylinder piston

1шт.

Part of Cylinder # B3785AA

1шт.

7/8" N.F. hex. light nut

1шт.

7/8" Shakeproof lockwasher type 12 #1234

1шт.

A7784

HOSE ASSY.

HOSE - hydraulic, 4026AA coupling to upper valve (1/2" I.D. x 12-3/4" long), portable cyl

2шт.

A8204

HOSE - coupling to portable cylinder (1/2" I.D. x 57-5/8" long) (Special)

2шт.

A8205

HOSE - coupling to portable cylinder (1/2" I.D. x 93-5/8" long) (Special)

2шт.

O8681AB

X

CLAMP - hose for portable hyd cyl

2шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, hose for portable hyd cyl

1шт.

O9611AB

X

HOSE - coupling to portable cylinder, front (1/2" I.D. x 92" long), hyd

1шт.

O9612AB

HOSE - coupling to portable cylinder, rear (1/2" I.D. x 104" long), hyd

1шт.
