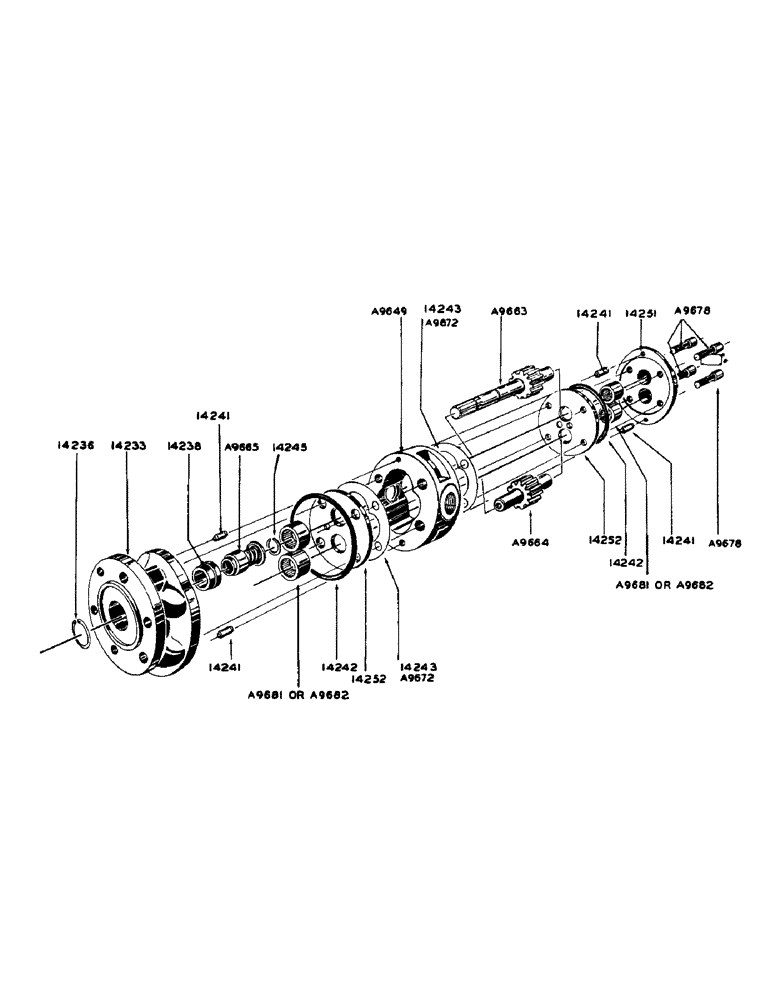

Запчасти Case 425 (129) - PARTS FOR A7586 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

14233

BRACKET

ADAPTER END

1шт.

14236

SNAP RING

- drive shaft, adapter end

1шт.

14238

FILE

SEAT - seal assembly

1шт.

14241

HOSE

DOWEL - pump body

4шт.

14242

"O" RING - seal

2шт.

NLS

NO LONGER SERVICED

GASKET - (.001" thick) pump body

1шт.

14245

RING, SNAP

SNAP RING - pump shaft

1шт.

14251

COVER - pump body

1шт.

14252

PLATE - wear, pump gears

2шт.

A9649

HOUSING - pump body

1шт.

A9663

SHAFT - drive

1шт.

A9664

SHAFT - driven

1шт.

A9665

X

SEAL ASSEMBLY

1шт.

A9672

X

GASKET - (.002" thick) pump body

1шт.

A9678

CAP SCREW

4шт.

A9681

BEARING - RBC

4шт.

NOTE: Both "RBC" and Magill bearings have been used. In repairing pumps the same type bearing must be used as original equipment.

1шт.

A9682

BEARING - Magill

1шт.

NOTE: Both "RBC" and Magill bearings have been used. In repairing pumps the same type bearing must be used as original equipment.

1шт.
