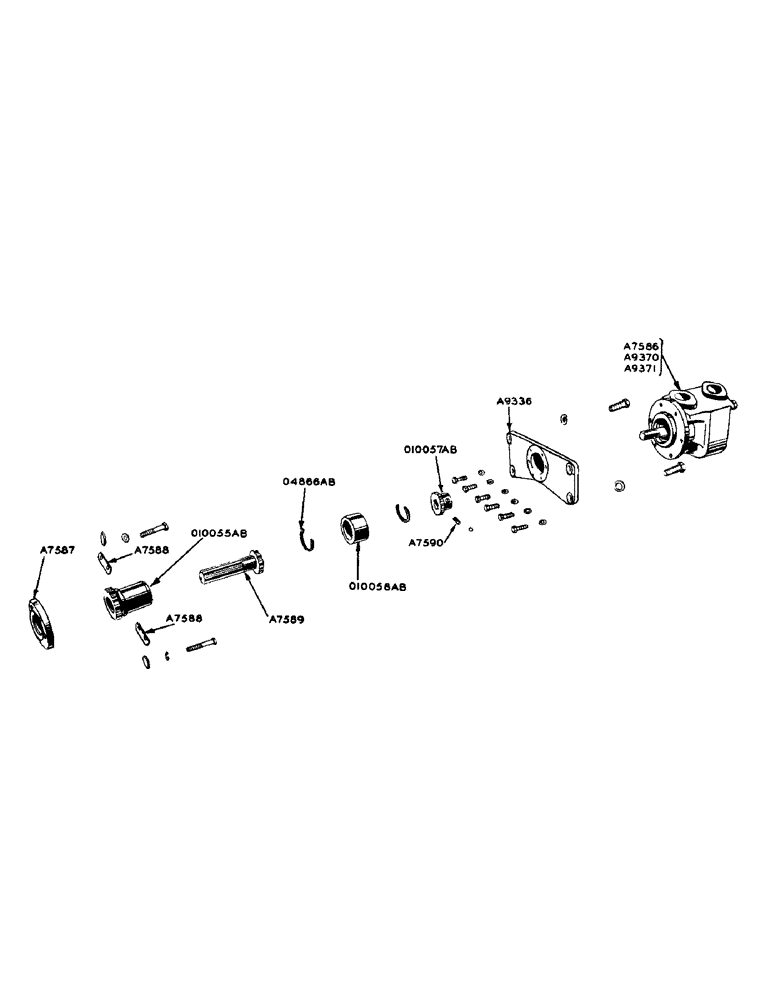

Запчасти Case 425 (128) - HYDRAULIC PUMP AND DRIVE MOUNTED ON FRONT END OF CRANKSHAFT (35) - HYDRAULIC SYSTEMS

A7586

PUMP - hydraulic (Hydreco 31 gal. per minute capacity no. 2025G2B4)

1шт.

A7587

ADAPTER - hydraulic pump drive

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

6шт.

A7588

STRAP - pump drive adapter

2шт.

A7589

SHAFT - pump drive

1шт.

A7590

SET SCREW - for O10057AB pump drive coupling

1шт.

A9336

FLANGE - hydraulic pump mounting

1шт.

7/16" x 1-1/2" N.F. hex. bolt w/nut and lockwasher

6шт.

5/8" x 1-3/4" N.C. hex. bolt w/lockwasher

4шт.

A9370

PUMP - hydraulic (Hydreco 18 gal. per minute capacity no. 2015-F2-B1)

1шт.

A9371

PUMP - hydraulic (Hydreco 25 gal. per minute capacity no. 2020-F2-B1)

1шт.

O4866AB

X

SNAP RING - pump drive shaft

2шт.

O10055AB

ADAPTER - pump drive shaft

1шт.

O10057AB

COUPLING - hydraulic pump shaft

1шт.

O10058AB

SLEEVE - pump drive, Serial Range: shaft-coupling

1шт.

O3914CS

SPRING - thrust, pump drive shaft

1шт.
