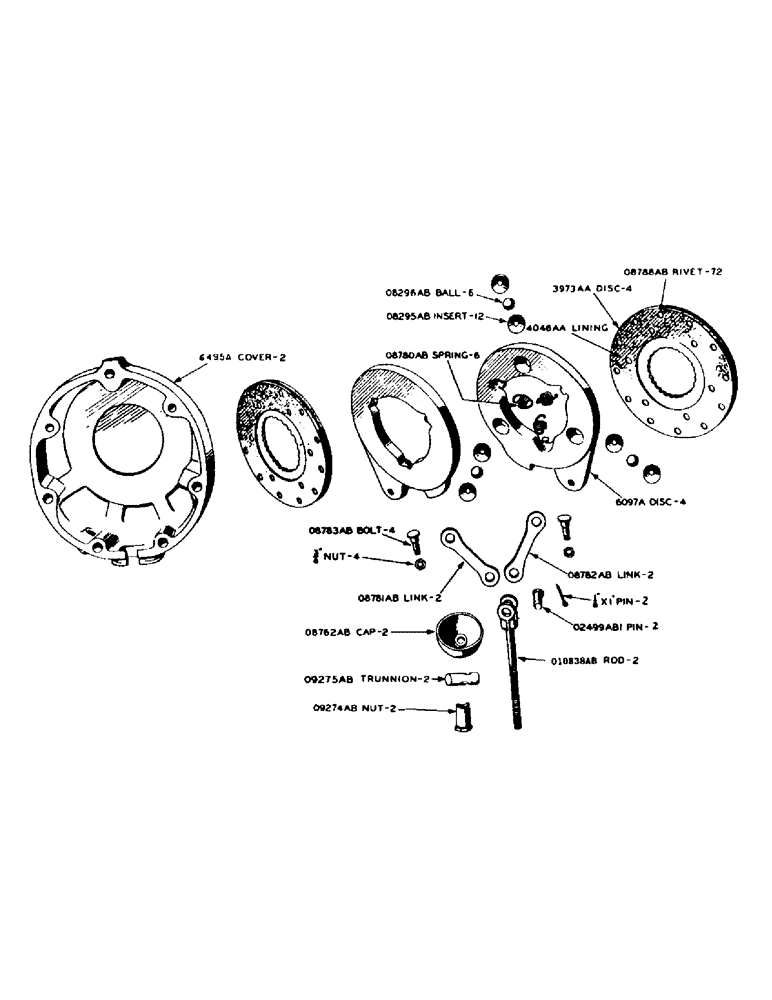

Запчасти Case 420 (097) - DIFFERENTIAL BRAKE (33) - BRAKES & CONTROLS

6097A

X

DISC - differential brake actuating

4шт.

6495A

COVER - differential brake

2шт.

1/2" x 3-3/4" N.C. hex. bolt w/lockwasher

8шт.

1/2" x 4-3/4" N.C. hex. bolt w/lockwasher

6шт.

O2499AB1

X

PIN - for O10838AB brake rod

2шт.

1/8" x 1" cotter pin

2шт.

O8295AB

X

INSERT - for 6097A disc

12шт.

O8296AB

X

BALL - for 6097A actuating disc (5/8" dia.)

6шт.

O8762AB

X

CAP - dust, on brake cover

2шт.

O8780AB

X

SPRING - actuating disc, single

6шт.

O8781AB

X

LINK - actuating disc, single

2шт.

O8782AB

X

LINK - actuating disc straddle

2шт.

O8783AB

X

BOLT - actuating disc link

4шт.

3/8" N.F. light hex. jam nut

4шт.

O8788AB

X

RIVET - differential brake lining

72шт.

O9274AB

X

NUT - brake rod

2шт.

O9275AB

X

TRUNNION - brake rod

2шт.

O10838AB

X

ROD - pull, differential brake

2шт.

3973AA

X

DISC - middle, with brake lining

4шт.

4046AA

X

LININGS - set of two, with O8788AB rivets, for 3973AA disc

4шт.
