Запчасти Case 420 (099) - REAR AXLE (27) - REAR AXLE SYSTEM

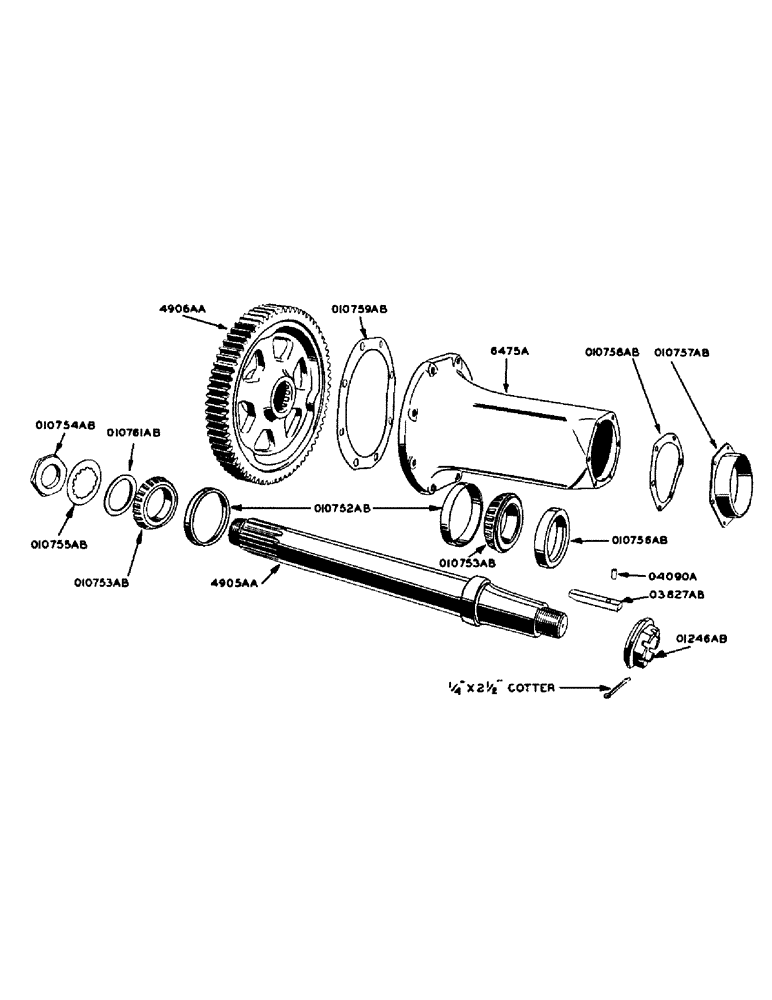

Схема запчастей Case 420 - (099) - REAR AXLE (27) - REAR AXLE SYSTEM

Артикул

Название

Примечание

Количество

6475A

X

HOUSING - rear axle

2шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

12шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

4шт.

6476A

HUB (Use 4906AA)

1шт.

O4090A

DOWEL PIN - rear wheel to axle key

2шт.

O1246AB

NUT - on rear axle, for rear wheel

2шт.

1/4" x 2-1/2" cotter pin

2шт.

O3317AB

WRENCH - socket, rear axle outer nut

1шт.

O3827AB

X

KEY - rear, Serial Range: wheel-axle

2шт.

O10752AB

X

CUP - rear axle shaft bearing (Timken no. 492-A)

4шт.

O10753AB

X

CONE - rear axle shaft bearing (Timken no. 495-AS)

4шт.

O10754AB

LOCK NUT - rear axle, for ring gear hub

2шт.

O10755AB

X

LOCKWASHER - rear axle, for ring gear hub

2шт.

O10756AB

X

OIL SEAL - rear axle

2шт.

O10757AB

X

GUARD - dust, rear axle

2шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

12шт.

O10758AB

X

GASKET - rear axle dust guard

2шт.

O10759AB

X

GASKET - rear axle housing

2шт.

O10761AB

WASHER - thrust, rear axle gear

2шт.

4905AA

SHAFT - rear axle, with collar

2шт.

4906AA

GEAR - ring, rear axle, with hub

2шт.
