Запчасти Case 420 (094) - DIFFERENTIAL SHAFT AND BRAKE ASSEMBLY (27) - REAR AXLE SYSTEM

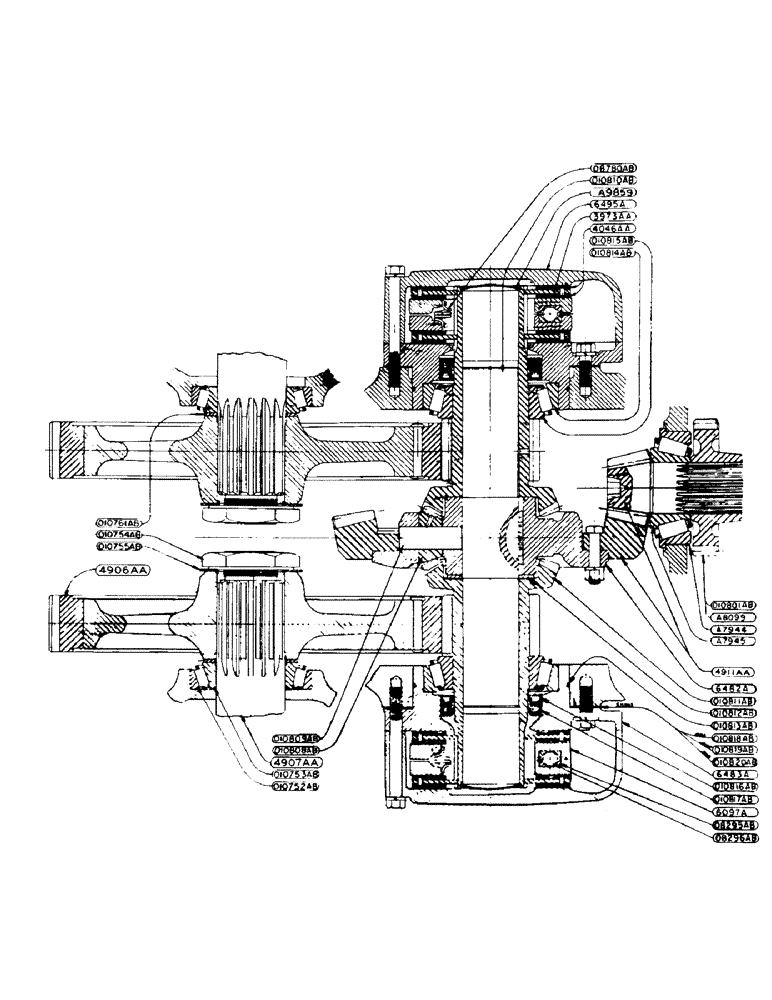

Схема запчастей Case 420 - (094) - DIFFERENTIAL SHAFT AND BRAKE ASSEMBLY (27) - REAR AXLE SYSTEM

Артикул

Название

Примечание

Количество

A8341

THIMBLE - to assemble O10816AB and O10817AB oil seal on differential gear and sleeve

1шт.

A9859

SHAFT - differential

1шт.

TX Woodruff key

1шт.

6482A

X

WHEEL - differential center

1шт.

"T" Woodruff key

1шт.

6483A

CARRIER - differential bearing and brake pad

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

1/8" hex. socket hd. pipe plug

2шт.

O10808AB

PINION - differential

3шт.

O10809AB

PIN - differential pinion

3шт.

O10810AB

SHAFT - differential (Use A9859 shaft and 1 - "TX" Woodruff key)

1шт.

O10811AB

X

GEAR AND SLEEVE - differential

2шт.

2-5/8" Welch plug

2шт.

O10812AB

X

WASHER - thrust, differential gear

1шт.

O10813AB

X

"O" RING - differential shaft bearing carrier

2шт.

O10814AB

X

CUP - differential bearing (Timken no. 592-A)

2шт.

O10815AB

X

CONE - differential bearing (Timken no. 596)

2шт.

O10816AB

OIL SEAL - differential bearing, inner (Synthetic rubber)

2шт.

O10817AB

X

OIL SEAL - differential bearing, outer (Leather)

2шт.

O10818AB

X

SHIM - differential shaft bearing carrier (.003" thick)

8шт.

O10819AB

X

SHIM - differential shaft bearing carrier (.005" thick)

6шт.

O10820AB

SHIM - differential shaft bearing carrier (.010" thick)

13шт.

Выбрано товаров: 22
