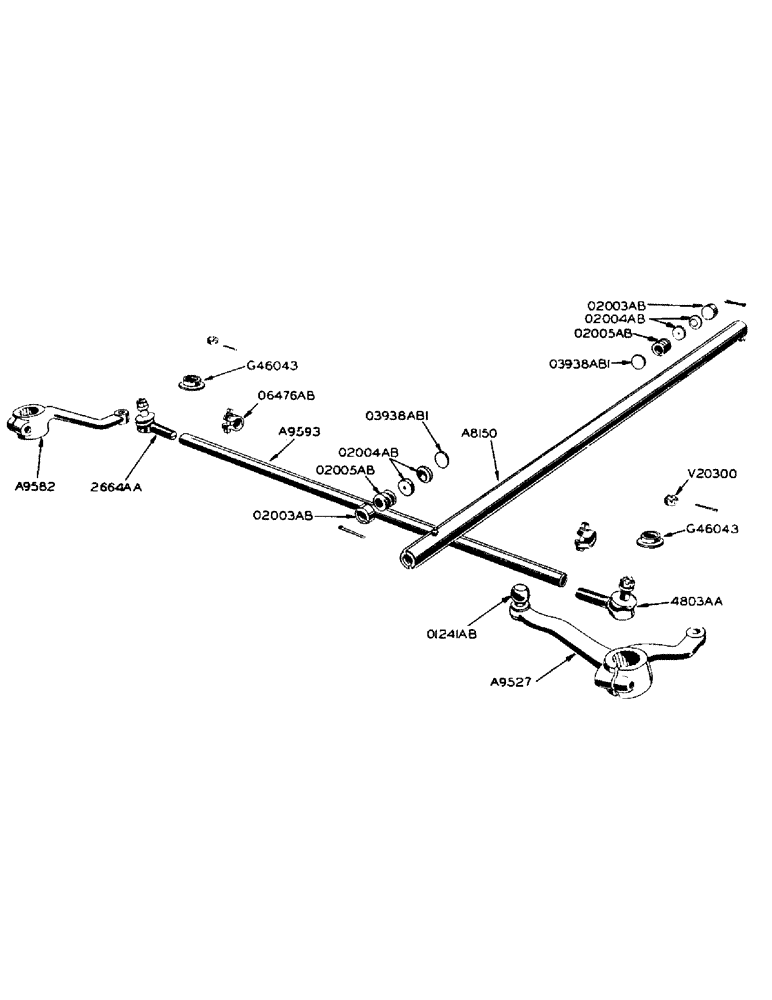

Запчасти Case 420 (110) - STEERING ARMS, TIE ROD AND DRAG LINK (25) - FRONT AXLE SYSTEM

A8150

LINK - steering drag, complete with springs and bearings

1шт.

1/8" str. Lincoln fitting #5000

2шт.

A9527

ARM - front wheel steering, L.H. with O1241AB ball and 1/2" x 3" N.F. hex. bolt, nut and lockwasher

1шт.

A9582

U-BOLT

ARM - front wheel steering, R.H., with 1/2" x 3" N.F. hex. bolt, nut and lockwasher

1шт.

A9593

TUBE - tie rod

1шт.

O1241AB

BALL - for L.H. steering arms

1шт.

O2003AB

X

SCREW - adjusting, drag link

2шт.

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING - drag link

4шт.

O2005AB

X

SPRING - drag link

2шт.

O3938AB1

X

SEAT - drag link

2шт.

O6476AB

X

CLAMP - tie rod tube, with 3/8" x 1-3/4" N.F. hex. bolt, hex. nut and lockwasher

2шт.

V20300

OPERATOR MANUAL

NUT - slotted hex.

2шт.

1/8" x 1" cotter pin

2шт.

2664AA

X

END - tie rod, R.H.

1шт.

1/8" str. Lincoln fitting #5000

1шт.

4803AA

X

END - tie rod, L.H.

1шт.

1/8" str. Lincoln fitting #5000

1шт.

G46043

COVER

- dust, tie rod end

2шт.
