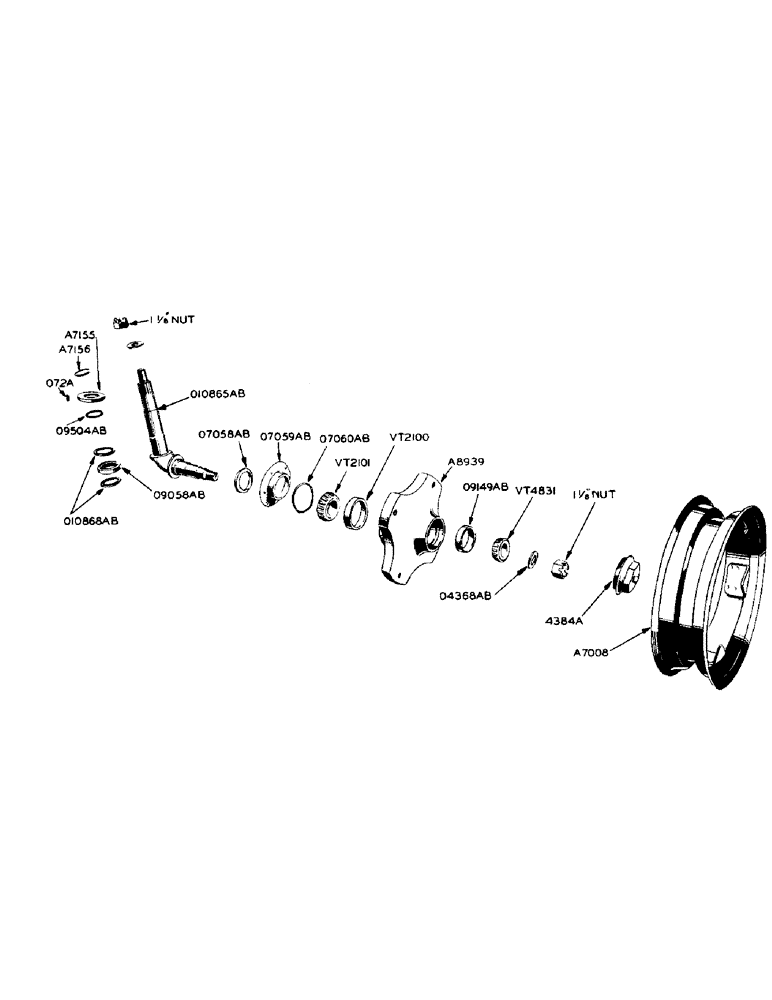

Запчасти Case 420 (109) - FRONT WHEEL AND SPINDLE (25) - FRONT AXLE SYSTEM

A7155

SHIELD

- dust, front wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - front wheel spindle dust shield

2шт.

A8937

WHEEL - (Use A8938)

1шт.

A8938

WHEEL - front, with O9149AB and VT2100 bearing cups for 6.00-16, 7.50-16 and 8.25-16 tires

2шт.

4384A

X

CAP - front wheel hub

2шт.

O72A

DOWEL PIN - front wheel spindle dust shield

2шт.

O4368AB

X

WASHER - front wheel spindle

2шт.

O7058AB

X

SEAL - front wheel

2шт.

O7059AB

X

RETAINER - front wheel seal

2шт.

1/4" x 5/8" N.C. flat ctsk. hd. mach. screw

10шт.

O7060AB

X

SEAL - front wheel retainer

2шт.

O7223AB

X

STUD - front wheel rim clamp

10шт.

O7243AB

X

NUT - front wheel rim clamp stud

10шт.

O8739AB

CLAMP - front wheel rim

10шт.

O8740AB

RIM - for A8938 front wheel (4.50E-16 semi-drop center rim-type LTS) (For 6.00-16 4 or 6 ply tires)

2шт.

O8741AB

RIM - for A8938 front wheel (6.00 G-16 semi-drop center rim, type LTS) (For 7.50-16 8 ply, 8.25-16 8 ply and 8.25-16 10 ply tires)

2шт.

O9058AB

X

BEARING - thrust, front wheel spindle (Timken no. T-199)

2шт.

O9149AB

X

CUP - front wheel outer bearing (Timken #25820)

2шт.

O9504AB

X

OIL SEAL - front wheel spindle, upper

2шт.

O10865AB

SPINDLE - front wheel

2шт.

1-1/8" N.F. hex. castle nut

2шт.

1-1/8" N.F. light thick slotted nut

2шт.

1-1/8" plain washer

2шт.

3/16" x 1-3/4" cotter pin

4шт.

O10868AB

X

WASHER - thrust, front wheel spindle

4шт.

VT2100

X

CUP - front wheel inner bearing (Timken #25520)

2шт.

VT2101

X

CONE - front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE - front wheel outer bearing (Timken no. 25877)

2шт.
