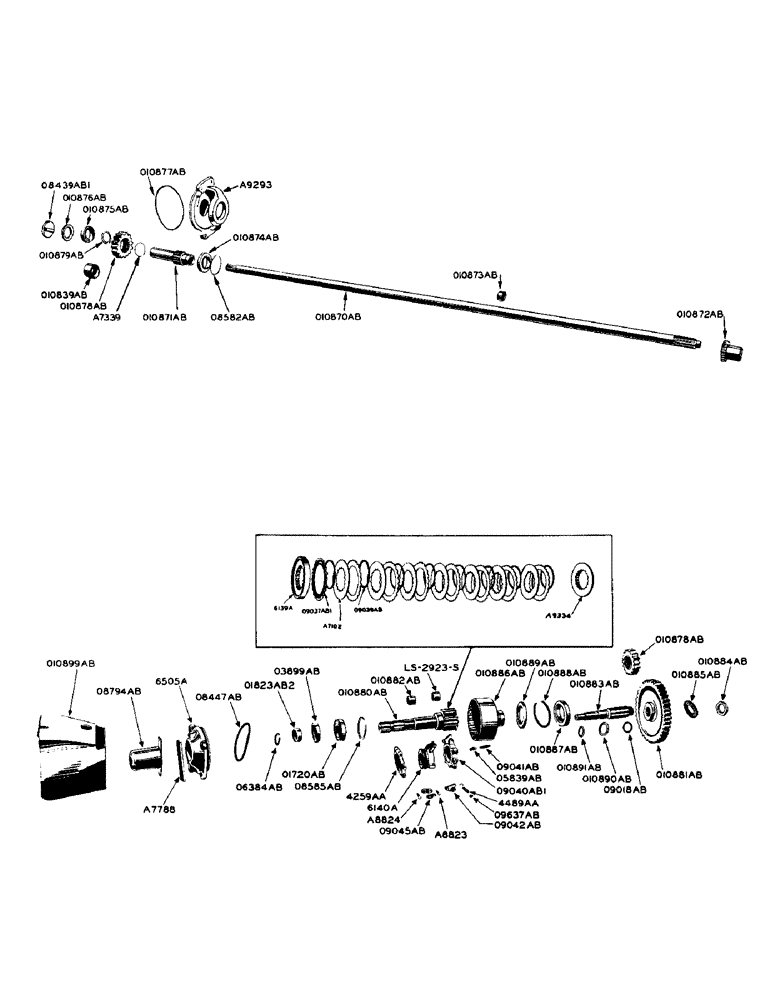

Запчасти Case 420 (116) - PTO AND HYDRAULIC DRIVE UPPER MAIN SHAFT (21) - TRANSMISSION

A7339

RING

SNAP RING - PTO pinion, on extension shaft

1шт.

A9293

CARRIER - extension shaft bearing

1шт.

1/8" sq. hd. pipe plug

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

O8582AB

X

SNAP RING - extension shaft front bearing (O10874AB)

1шт.

O10839AB

SPACER - extension shaft replaces PTO pinion on tractors without PTO (See O10878AB)

1шт.

O10870AB

SHAFT - PTO and hydraulic pump drive

1шт.

O10871AB

X

SHAFT - extension, PTO and hydraulic pump drive

1шт.

O10872AB

X

SLEEVE - PTO and hydraulic pump drive shaft, front end

1шт.

O10873AB

X

BUSHING - PTO and hydraulic pump drive shaft, at rear of range drive shaft

1шт.

O10874AB

X

BEARING - extension shaft, front (N.D. #73L08)

1шт.

O10875AB

X

BEARING - extension shaft, rear (N.D. #73L07)

1шт.

O10876AB

X

OIL SEAL - extension shaft, rear

1шт.

O10877AB

X

"O" RING - for A9293 bearing carrier

1шт.

O10878AB

PINION - PTO

1шт.

O10879AB

SPACER - between O10875AB bearing and pinion

1шт.

O10948AB

SNAP RING - for O10870AB shaft, at rear of range drive shaft (Discontinued)

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - PTO clutch driven (Steel ground finish surface) (6 used with A7107 backing plate and 7 used with A9334 backing plate) (See note)

6-7шт.

A7107

PLATE

- PTO clutch backing (Use A9334 plate with 1 additional A7102, O9037AB1 and O9039AB) (See note)

12шт.

A7111

SNAP RING,#25, Ext

Ring, Snap, , for A4490AA and A4491AA pins, PTO clutch #25, Ext

12шт.

A7788

SPACER - PTO bearing carrier, clutch

1шт.

A7942

TOOL

BAR - clutch adjusting, PTO

1шт.

A8224

STRAP - retaining, PTO bearing carrier, clutch

1шт.

3/8" x 1-1/4" N.C. hex. bolt, PTO clutch

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

- PTO clutch lever, Serial Range: link-finger

3шт.

3/32" x 1/2" cotter pin, PTO clutch

3шт.

A8824

PIN

- PTO clutch lever link, to sleeve

3шт.

3/32" x 1/2" cotter pin, PTO clutch

3шт.

A8904

PLATE - spacer, to space and press O10889AB oil seal into the hydraulic housing, PTO clutch

2шт.

A8909

THIMBLE - to assembly O10889AB oil seal on O10886AB PTO clutch drum

1шт.

A9031

ARBOR - for pressing O10882AB rear bearing into O10880AB shaft, PTO clutch

1шт.

A9032

ARBOR - for pressing LS-2923-S front bearing into O10880AB shaft, PTO clutch

1шт.

A9033

JAW - puller, to remove to O10882AB rear bearing, PTO clutch

1шт.

A9034

JAW - puller, to remove LS-2923-S front bearing, PTO clutch

1шт.

A9035

BOLT - puller, use with A9033 and A9034 jaws, PTO clutch

1шт.

A9036

CUP - puller, for removing O10882AB and LS-9293-S bearings, PTO clutch

1шт.

A9334

PLATE - PTO clutch backing

1шт.

6139A

X

PLATE - PTO clutch pressure

1шт.

6140A

X

SLEEVE - PTO clutch sliding

1шт.

6141A

X

COLLAR - (Use 4259AA), PTO clutch

1шт.

6505A

CARRIER - PTO shaft bearing, rear, clutch

1шт.

O1720AB

BEARING

- PTO shaft, rear (New Departure no. 1207), clutch

1шт.

O1823AB2

X

COLLAR - PTO shaft, rear clutch

1шт.

O3899AB

X

OIL SEAL - PTO shaft, rear, clutch

1шт.

O5839AB

X

SPRING - PTO clutch adjusting lock pin

2шт.

O6384AB

SNAP RING - PTO shaft, rear, clutch

1шт.

O8447AB

X

"O" RING - PTO shaft rear bearing carrier, clutch

1шт.

O8585AB

X

SNAP RING - PTO shaft rear bearing carrier, clutch

1шт.

O8794AB

GUARD - tubular, PTO shaft, clutch

1шт.

5/16" x 1/2" N.C. hex. bolt, PTO clutch

2шт.

5/16" Shakeproof ext. - int. tooth lockwasher #4018-24, PTO clutch

2шт.

O9018AB

X

"O" RING - PTO clutch drive shaft, clutch

1шт.

O9037AB1

X

PLATE - PTO clutch drive (Bronze with circular corrugations) (7 used with A7107 backing plate and 8 used with A9334 backing plate) (See note)

7-8шт.

O9039AB

SPRING

- PTO clutch drive plate separator (7 used with A7107 backing plate and 8 used with A9334 backing plate) (See note)

7-8шт.

O9040AB1

X

YOKE - PTO clutch adjusting

1шт.

O9041AB

X

PIN - PTO clutch adjusting lock

2шт.

O9042AB

X

FINGER - PTO clutch

3шт.

O9045AB

LINK - PTO clutch lever

6шт.

O9185AB

X

STUD - PTO shaft bearing carrier on hydraulic pump opening cover, clutch

2шт.

1/2" N.F. hex. nut, PTO clutch

2шт.

1/2" internal tooth Shakeproof lockwasher #1224-00, PTO clutch

2шт.

O9637AB

X

"E" RING - retaining, for 4489AA finger pin, PTO clutch

6шт.

O10837AB

STOP NUT - Elastic, 5/16" - 24, for bolts in 4259AA collar, PTO clutch

2шт.

O10878AB

PINION - PTO, on O10871AB shaft, clutch

1шт.

O10880AB

SHAFT - PTO, rear, 1-3/8" spline, clutch

1шт.

O10881AB

GEAR - PTO clutch drive shaft

1шт.

O10882AB

X

BEARING - pilot, PTO drive shaft, rear (Torrington no. V1416), clutch

1шт.

O10883AB

SHAFT - PTO clutch drive

1шт.

O10884AB

X

NUT - PTO clutch drive shaft

1шт.

O10885AB

X

LOCKWASHER - PTO clutch drive shaft nut

1шт.

O10886AB

DRUM - PTO clutch

1шт.

O10887AB

X

BEARING - PTO clutch drum (New Departure no. 73L11)

1шт.

O10888AB

X

SNAP RING - to retain O10887AB bearing, PTO clutch

1шт.

O10889AB

X

OIL SEAL - PTO clutch drum

1шт.

O10890AB

WASHER - PTO clutch drum retainer

1шт.

O10891AB

X

SNAP RING - for O10890AB retainer washer, PTO clutch

1шт.

O10898AB

STUD - PTO shaft rear bearing carrier, clutch

2шт.

5/8" N.F. hex. nut, PTO clutch

2шт.

5/8" internal Shakeproof lockwasher #1228-00, PTO clutch

2шт.

O10899AB

X

GUARD - master, PTO, clutch

1шт.

LS-2923-S

BEARING - pilot, PTO drive shaft, front (Torrington no. B-1816-OH), clutch

1шт.

4259AA

X

COLLAR - PTO clutch throwout (Consists of collar with 2 - 5/16" x 2" N.F. hex. bolts and 2 - O10837AB stop nuts)

1шт.

4489AA

X

PIN - PTO clutch finger to yoke (Includes pin with 2 - O9637AB "E" rings)

3шт.

A4490AA

X

PIN - (Use A8823), PTO clutch

1шт.

A4491AA

X

PIN - (Use A8824), PTO clutch

1шт.
