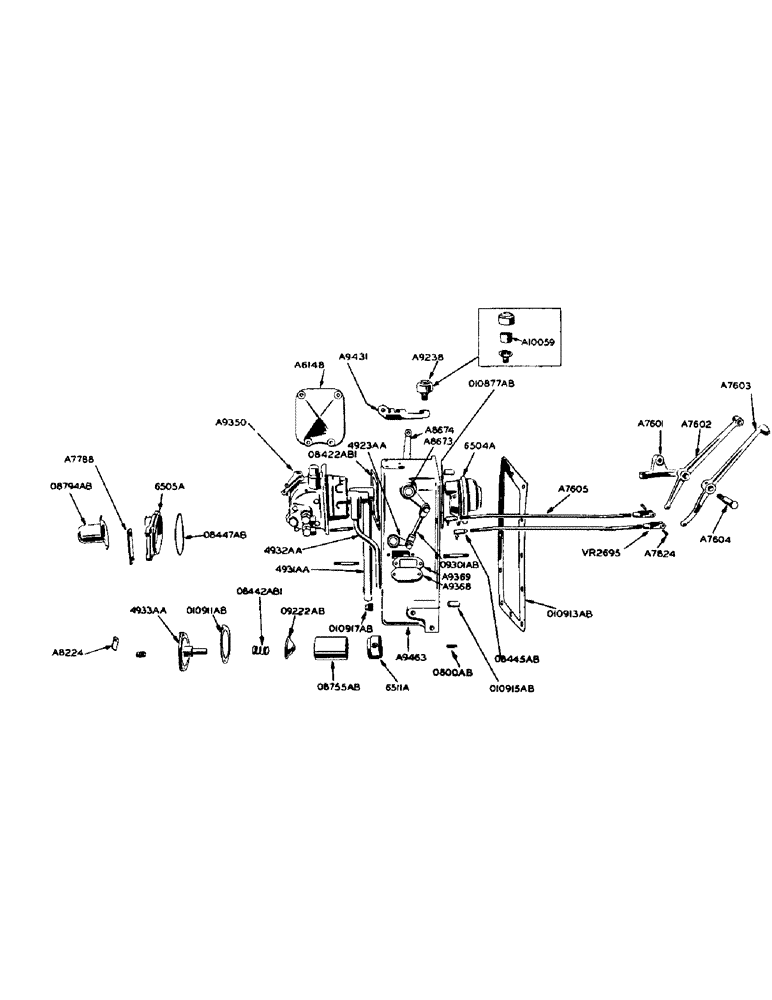

Запчасти Case 420 (114) - MAIN HOUSING FOR PTO AND HYDRAULIC PUMP (21) - TRANSMISSION

A7601

BRACKET - hydraulic valve control hand lever

1шт.

1/2" x 2" N.C. hex. bolt w/lockwasher

2шт.

A7602

LEVER - hand, hydraulic valve control, inner

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7603

LEVER - hand, hydraulic valve control, outer

1шт.

1/8" str. Lincoln fitting #5000

1шт.

A7604

STUD - valve control hand lever

1шт.

5/8" N.F. hex. jam nut and lockwasher

1шт.

A7605

ROD - hydraulic valve control

2шт.

5/16" N.F. hex. jam nut

4шт.

A7824

X

PIN - for VR2695 control rod yoke end

2шт.

3/32" x 3/4" cotter pin

2шт.

A9238

BREATHER

- hydraulic housing, outer

1шт.

A9368

CAP - PTO clutch adjusting hole, for hydraulic housing

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

A9369

GASKET

- PTO clutch adjusting hole cap (A9368)

1шт.

A9463

HOUSING - PTO and hydraulic pump (Consists for housing with 1 - A9368 cap, 1 - A9369 gasket and 2 - 3/8" x 3/4" N.C. hex. bolts w/lockwasher)

1шт.

5/8" x 1-1/2" N.C. hex. bolt w/lockwasher

4шт.

5/8" x 8-1/2" N.C. hex. bolt w/lockwasher

2шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

3/4" std. pipe elbow

1шт.

3/4" sq. hd. pipe plug

1шт.

1/8" sq. hd. pipe plug

1шт.

1/2" sq. hd. pipe plug

1шт.

1-3/16" Welch plug

1шт.

A9609

MANIFOLD - hydraulic pump

1шт.

1/8" pipe plug

2шт.

3/4" sq. hd. pipe plug

2шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

A6148A

COVER - hydraulic pump opening

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

6503A

HOUSING - (Use A9463)

1шт.

6505A

CARRIER - PTO shaft rear bearing

1шт.

6509A

ELBOW - (Use 4931AA)

1шт.

6510A

ELBOW - (Use 4932AA)

1шт.

6511A

ELBOW - hydraulic pump filter

1шт.

6512A

COVER - (Use 4933AA)

1шт.

O800AB

STUD - in housing, for hydraulic pump filter elbow

1шт.

3/8" N.F. hex. nut

1шт.

3/8" std. lockwasher

1шт.

O2983AB

STUD - PTO and hydraulic pump housing (Short)

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

O8422AB1

X

GASKET - hydraulic pump opening cover or hydraulic valve body

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8445AB

X

JOINT - ball, hydraulic valve control rod

2шт.

5/16" std. lockwasher

2шт.

O8447AB

X

"O" RING - PTO shaft opening cover

1шт.

O8755AB

X

FILTER - oil, hydraulic pump

1шт.

O9185AB

X

STUD - PTO shaft bearing carrier or hydraulic pump opening cover

2шт.

1/2" N.F. hex. nut

2шт.

1/2" int. tooth Shakeproof lockwasher #1224-00

2шт.

O9222AB

X

RETAINER - hydraulic pump filter

1шт.

O10910AB

GASKET

- hydraulic pump, for 4931AA and 4932AA elbows

2шт.

O10911AB

X

GASKET - for 4933AA filter cover

1шт.

O10913AB

X

GASKET - A9463 housing to transmission case

1шт.

O10914AB

STUD - PTO and hydraulic pump housing (5/8" x 9-1/2" long)

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

O10915AB

X

DOWEL PIN - A9463 housing to transmission case

2шт.

O10917AB

PLUG - pipe, 3/4" Lisle magnetic sq. hd., for PTO and hydraulic pump housing

1шт.

V22152

CAP

PLUG - Welch, hydraulic pump housing (1-1/2" dia.)

2шт.

VR2695

X

YOKE END - hydraulic valve control rod

2шт.

VT3476

STUD - hydraulic valve body or hydraulic pump opening cover

2шт.

1/2" N.F. hex. nut

2шт.

1/2" std. lockwasher

2шт.

4931AA

ELBOW - hydraulic pump inlet, with tube and screen

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

4932AA

ELBOW - hydraulic pump outlet, with tube

1шт.

5/16" x 2" N.C. hex. bolt w/lockwasher

1шт.

4933AA

COVER - hydraulic pump filter, with tube

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

3шт.

3/32" x 1-1/8" cotter pin

1шт.

1/2" sq. hd. pipe plug

1шт.
