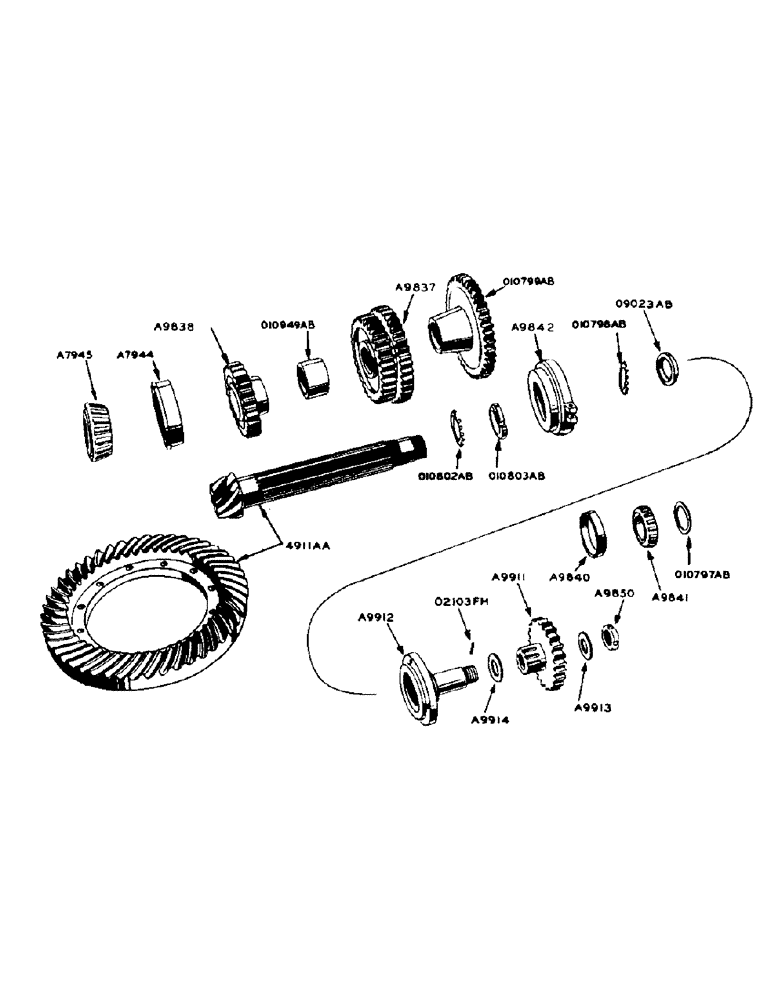

Запчасти Case 420 (093) - COUNTERSHAFT AND DIFFERENTIAL RING GEAR FOR SHUTTLE TRANSMISSION (21) - TRANSMISSION

A7944

CUP - bearing, countershaft, rear (Timken #65500B)

1шт.

A7945

CONE

- bearing, countershaft, rear (Timken #65225)

1шт.

A8345

WRENCH - spanner socket, for O9023AB and O10803AB locknuts on countershaft

1шт.

A9837

GEAR - 2nd and 3rd speeds

1шт.

A9838

GEAR - 4th speed

1шт.

A9840

BEARING CUP

CUP - countershaft front bearing (Timken #55437)

1шт.

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - countershaft front bearing (Timken #55187)

1шт.

A9842

CARRIER - countershaft front bearing

1шт.

A9850

NUT - adjusting, reverse idler gear and oil slinger gear lock

2шт.

A9906

X

SET SCREW - countershaft bearing carrier

1шт.

A9910

GEAR - (Use A9911)

1шт.

A9911

GEAR - oil slinger, w/bushings

1шт.

A9912

SHAFT - reverse idler and oil gear

1шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher

3шт.

A9913

WASHER - thrust, oil slinger gear front

1шт.

A9914

WASHER - thrust, oil slinger gear rear

1шт.

O9023AB

X

LOCKNUT - on countershaft, for front bearing

1шт.

O10797AB

X

LIP WASHER - countershaft front bearing

1шт.

O10798AB

X

LOCKWASHER - countershaft front bearing

1шт.

O10799AB

GEAR - 1st speed

1шт.

O10802AB

X

LOCKWASHER - countershaft gear

1шт.

O10803AB

X

LOCKWASHER - countershaft gear

1шт.

O10949AB

SPACER - countershaft gear

1шт.

4911AA

COUNTERSHAFT - with spiral bevel pinion and differential spiral bevel ring gear (11 and 48 teeth)

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

12шт.

O2103FH

X

ROLL PIN - (1/8" x 3/8") oil slinger gear front thrust washer

1шт.
