Запчасти Case 420 (092) - COUNTERSHAFT & DIFFERENTIAL RING GEAR AND REVERSE IDLER AND OIL, GEAR SHAFT FOR 8 SPEED TRANSMISSION (21) - TRANSMISSION

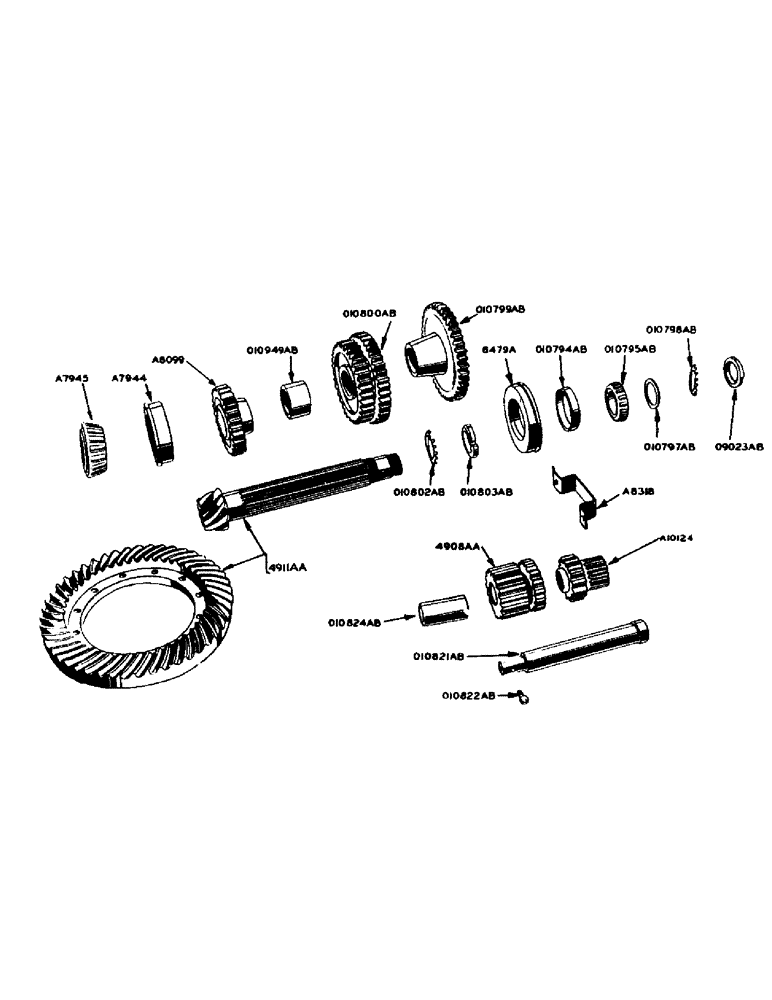

Схема запчастей Case 420 - (092) - COUNTERSHAFT & DIFFERENTIAL RING GEAR AND REVERSE IDLER AND OIL, GEAR SHAFT FOR 8 SPEED TRANSMISSION (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

A7944

CUP - bearing, countershaft, rear (Timken #65500B)

1шт.

A7945

CONE

- bearing, countershaft, rear (Timken #65225)

1шт.

A8099

GEAR - 4th and 8th speeds

1шт.

A8318

CLIP - countershaft front bearing carrier retainer

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

A8345

WRENCH - spanner socket, for O9023AB and O10803AB locknuts on countershaft

1шт.

6497A

CARRIER - countershaft front bearing

1шт.

O9023AB

X

LOCKNUT - on countershaft, for front bearing

1шт.

O10794AB

X

CUP - countershaft front bearing (Timken #362-A)

1шт.

O10795AB

X

CONE - countershaft, front bearing (Timken #369-S)

1шт.

O10797AB

X

LIP WASHER - countershaft front bearing

1шт.

O10798AB

X

LOCKWASHER - countershaft front bearing

1шт.

O10799AB

GEAR - 1st and 5th speeds

1шт.

O10800AB

GEAR - 2nd and 6th, 3rd and 7th speeds

1шт.

O10802AB

X

LOCKWASHER - countershaft gear

1шт.

O10803AB

X

LOCKNUT - countershaft gear

1шт.

O10949AB

SPACER - countershaft gear

1шт.

4911AA

COUNTERSHAFT - with spiral bevel pinion and differential spiral bevel ring gear (11 and 48 teeth)

1шт.

1/2" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

12шт.

A9521

PLUG

BUSHing - slinger (Use A10124), reverse idler & oil gear shaft for 8 speed trans

1шт.

A9523

GEAR

slinger w/A9521 bushing (Use A10124), reverse idler & oil gear shaft for 8 speed trans

1шт.

A10124

slinger, reverse idler & oil gear shaft for 8 speed trans

1шт.

6484A

BUSHING - (Use A10124), reverse idler & oil gear shaft for 8 speed trans

1шт.

O10821AB

reverse idler & oil gear shaft for 8 speed trans

1шт.

O10822AB

LOCK SCREW - reverse idler & oil gear shaft for 8 speed trans

1шт.

O10824AB

BUSHING - reverse idler & oil gear shaft for 8 speed trans

1шт.

4908AA

with O10824AB bushing, reverse idler & oil gear shaft for 8 speed trans

1шт.

Выбрано товаров: 27
