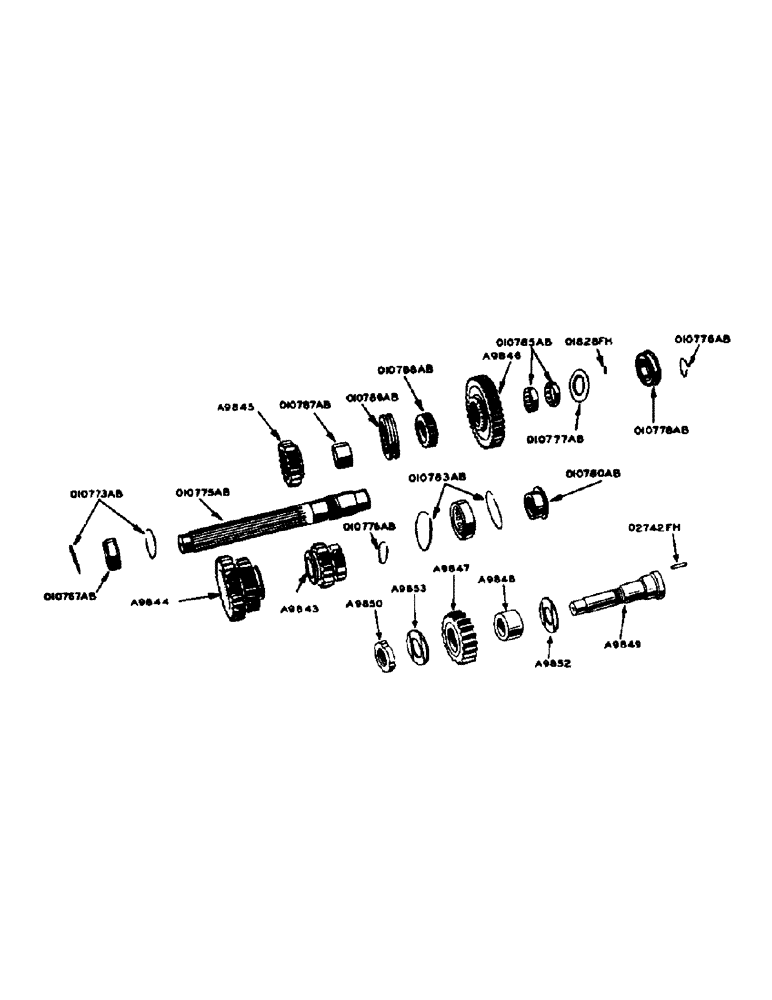

Запчасти Case 420 (091) - SLIDING GEAR SHAFT AND REVERSE IDLER SHUTTLE TRANSMISSION (21) - TRANSMISSION

A8347

TOOL

ARBOR - for pressing O10785AB into A9846 reverse driven gear

1шт.

A8356

ARBOR - for pressing O10787AB bearing into A9845 forward driven gear

1шт.

A9843

GEAR - 1st and 2nd speed sliding cluster

1шт.

A9844

GEAR - 3rd and 4th speed sliding cluster

1шт.

A9845

GEAR - forward driven

1шт.

A9846

GEAR - reverse driven

1шт.

A9847

GEAR - reverse idler

1шт.

A9848

BEARING - reverse idler gear

1шт.

A9849

SHAFT - reverse idler gear

1шт.

A9850

NUT - adjusting, reverse idler gear and oil slinger gear lock

2шт.

A9852

WASHER - thrust, reverse idler gear shaft, front

1шт.

A9853

WASHER - thrust, reverse idler gear, rear

1шт.

O10767AB

X

BEARING - sliding gear shaft, rear (Hyatt #1207-TAS)

1шт.

O10773AB

X

SNAP RING - sliding gear shaft rear bearing

2шт.

O10775AB

SHAFT - sliding gear

1шт.

O10776AB

SNAP RING - sliding gear shaft

2шт.

O10777AB

X

WASHER - shoulder, sliding gear shaft, front

1шт.

O10778AB

X

BEARING - sliding gear shaft, front (N.D. #47510)

1шт.

O10779AB

X

BEARING - sliding gear shaft, centr (Hyatt #1210-TBS)

1шт.

O10780AB

X

RACE - inner, sliding gear shaft center bearing

1шт.

O10783AB

X

SNAP RING - sliding gear shaft center bearing

2шт.

O10785AB

X

BEARING - needle, reverse driven gear (Torrington #B3612)

1шт.

O10787AB

X

BEARING - needle, forward driven gear (Torrington #BH-3324-OH)

1шт.

O10788AB

X

COLLAR - range clutch sliding sleeve spline

1шт.

O10789AB

SLEEVE - range clutch sliding

1шт.

O1828FH

X

ROLL PIN - (5/32" x 7/16") for O10777AB shoulder washer

1шт.

O2742FH

X

ROLL PIN - (1/4" x 3/4") reverse idler gear stop

1шт.
