Запчасти Case 420 (089) - RANGE DRIVE SHAFT, SHUTTLE TRANSMISSION (21) - TRANSMISSION

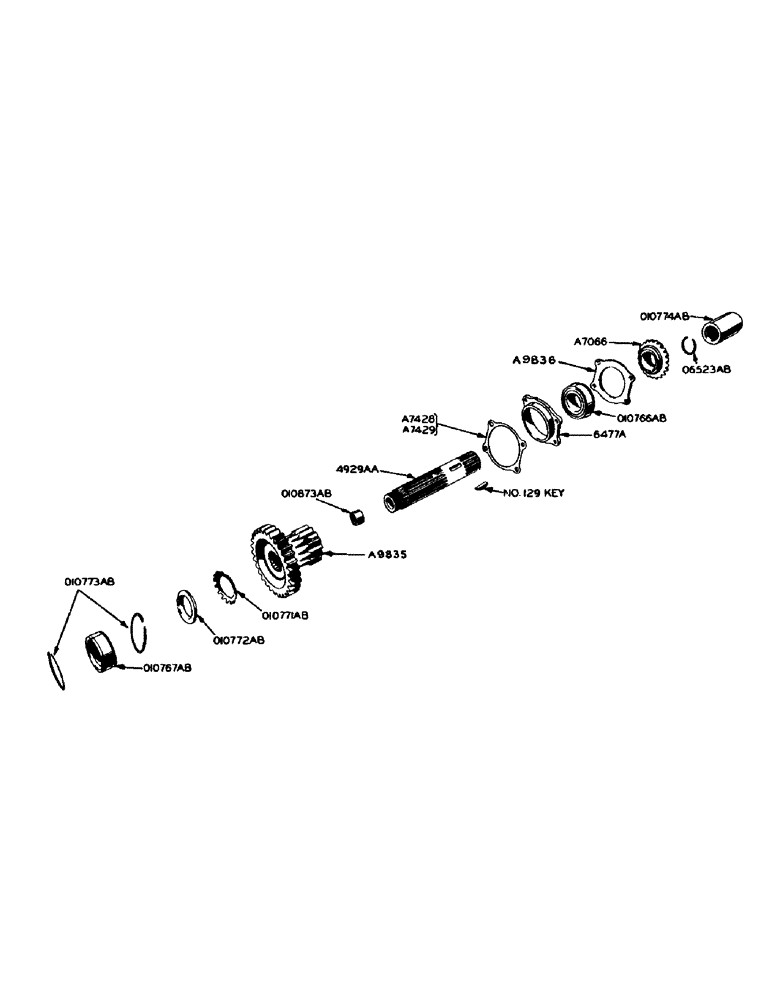

Схема запчастей Case 420 - (089) - RANGE DRIVE SHAFT, SHUTTLE TRANSMISSION (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

A7066

PINION - belt pulley drive, on range drive shaft

1шт.

No. 129 Woodruff key

1шт.

A7428

SHIM - for 6477A bearing carrier (.003")

4шт.

A7429

SHIM - for 6477A bearing carrier (.005")

6шт.

A8344

WRENCH - spanner, for O10772AB range drive shaft gear locknut

1шт.

A9835

GEAR - forward and reverse cluster

1шт.

A9836

PLATE - range drive shaft front bearing retainer

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

6477A

CARRIER - bearing, range drive shaft, front

1шт.

O6523AB

X

SNAP RING - range drive shaft

1шт.

O10766AB

X

BEARING - range drive shaft, front (N.D. #45510)

1шт.

O10767AB

X

BEARING - range drive shaft, rear (Hyatt #1207-TAS)

1шт.

O10771AB

X

LOCKWASHER - range drive shaft gear

1шт.

O10772AB

X

LOCKNUT - range drive shaft gear

1шт.

O10773AB

X

SNAP RING - range drive shaft rear bearing

2шт.

O10774AB

COUPLING - range drive shaft, front

1шт.

O10873AB

X

BUSHING - in rear of range drive shaft, for PTO and hydraulic pump drive shaft

1шт.

4929AA

SHAFT - range drive, with O10873AB bushing

1шт.

Выбрано товаров: 18
