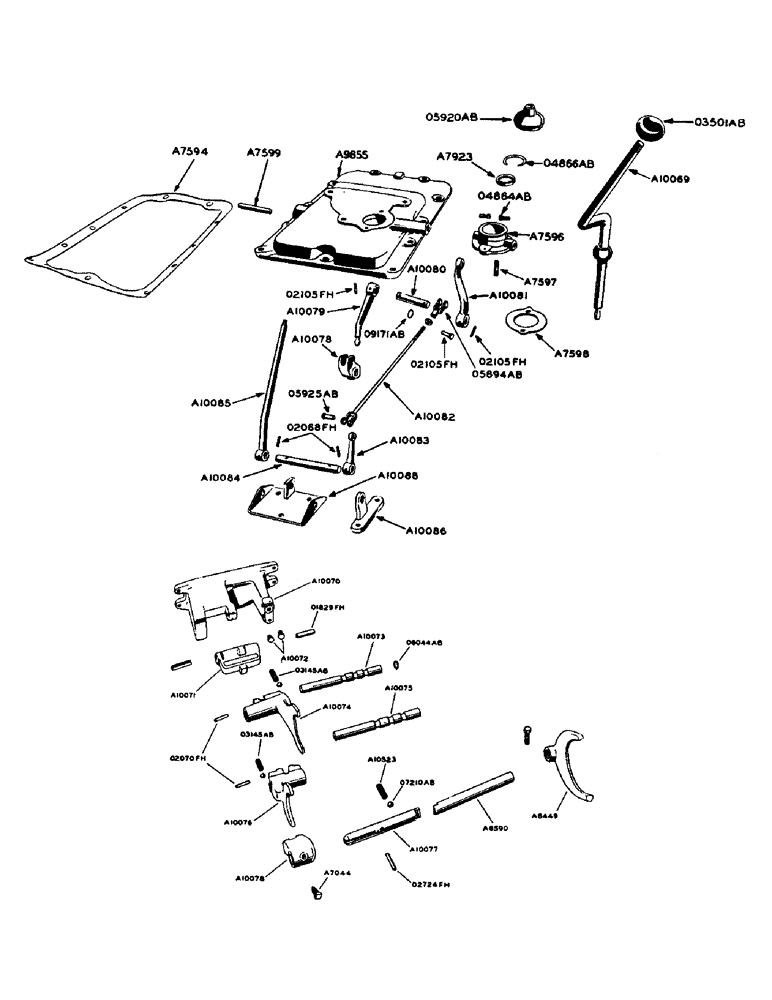

Запчасти Case 420 (086) - GEAR SHIFT PARTS, SHUTTLE TRANSMISSION (21) - TRANSMISSION

A7044

SET SCREW,3/8" - 16 x 7/8"

SET SCREW - gear shifter fork

2шт.

A7594

GASKET

- for A9855 top cover

1шт.

A7596

SOCKET

- gear shift hand lever ball

1шт.

3/8" x 1/2" N.C. hex. bolt

1шт.

A7597

STUD - gear shift hand lever socket

2шт.

3/8" N.F. hex. nut and lockwasher

2шт.

A7598

GASKET

- gear shift hand lever ball socket

1шт.

A7599

PIN - clutch foot pedal stop, in A9855 cover

1шт.

A7923

SEAT

- gear shift lever socket ring

1шт.

A8449

X

FORK - range gear shifter

1шт.

7/16" x 1-1/4" N.F. hex. bolt w/lockwasher

1шт.

A8590

SHAFT

- range gear shifter sliding, front

1шт.

A9855

COVER - top, transmission case, front

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher (Diesel)

9шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher (Gasoline)

11шт.

A10069

LEVER - ger shift hand

1шт.

A10070

BRACKET - gear shifter

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

A10071

GATE - gear shifter lock

1шт.

A10072

BOLT,3/8" - 16 x 3/4"

SCREW - stop, gear shifter lock gate

2шт.

A10073

SHAFT - gear shifter, 1st and 2nd speeds

1шт.

A10074

FORK - gear shifter, 1st and 2nd speeds

1шт.

A10075

SHAFT - gear shifter, 3rd and 4th speeds

1шт.

A10076

FORK - gear shifter, 3rd and 4th speeds

1шт.

A10077

SHAFT - range gear shifter, rear

1шт.

A10078

BLOCK - shuttle control gear shifter

1шт.

A10079

LEVER - shuttle control gear shifting block

1шт.

A10080

SHAFT - shuttle control gear shift lever

1шт.

A10081

LEVER - shuttle control front

1шт.

A10082

ROD - shuttle control

1шт.

A10083

LEVER - shuttle control rear

1шт.

A10084

SHAFT - shuttle control hand lever

1шт.

A10085

LEVER - shuttle control hand

1шт.

A10086

BRACKET - shuttle control hand lever shaft

1шт.

A10088

BRACKET - seat channel

1шт.

A10523

SPRING - rear range gear shifter shaft detent ball

1шт.

O3145AB

X

SPRING - gear shifter shaft detent ball

2шт.

O3501AB

X

BALL - gear shift lever

2шт.

O4864AB

X

PIN - gear shift lever socket

2шт.

O4866AB

X

SNAP RING - gear shift lever socket

1шт.

O5894AB

YOKE

END - shuttle control rod yoke

1шт.

O5920AB

X

CAP - gear shift lever socket (Rubber)

1шт.

O5925AB

X

PIN - shuttle control rod yoke end

2шт.

O6044AB

X

SNAP RING - 3rd and 4th speed gear shifter shaft

1шт.

O7210AB

X

BALL - gear shift detent (1/2" dia.)

3шт.

O9171AB

X

"O" RING - shuttle control gear shifter lever shaft

1шт.

O1829FH

X

ROLL PIN - (1/2" x 2") gear shift interlock gate

2шт.

O2068FH

X

ROLL PIN - (1/4" x 1-1/4") shuttle control shaft lever

2шт.

O2070FH

X

ROLL PIN - (1/4" x 1-1/2") for A10074 and A10076 forks

2шт.

O2105FH

X

ROLL PIN - (5/16" x 1-1/4") front and rear control levers

2шт.

O2724FH

ROLL PIN - (3/16" x 5/8") gear shifter bracket

1шт.
