Запчасти Case 420 (083) - BELT PULLEY (21) - TRANSMISSION

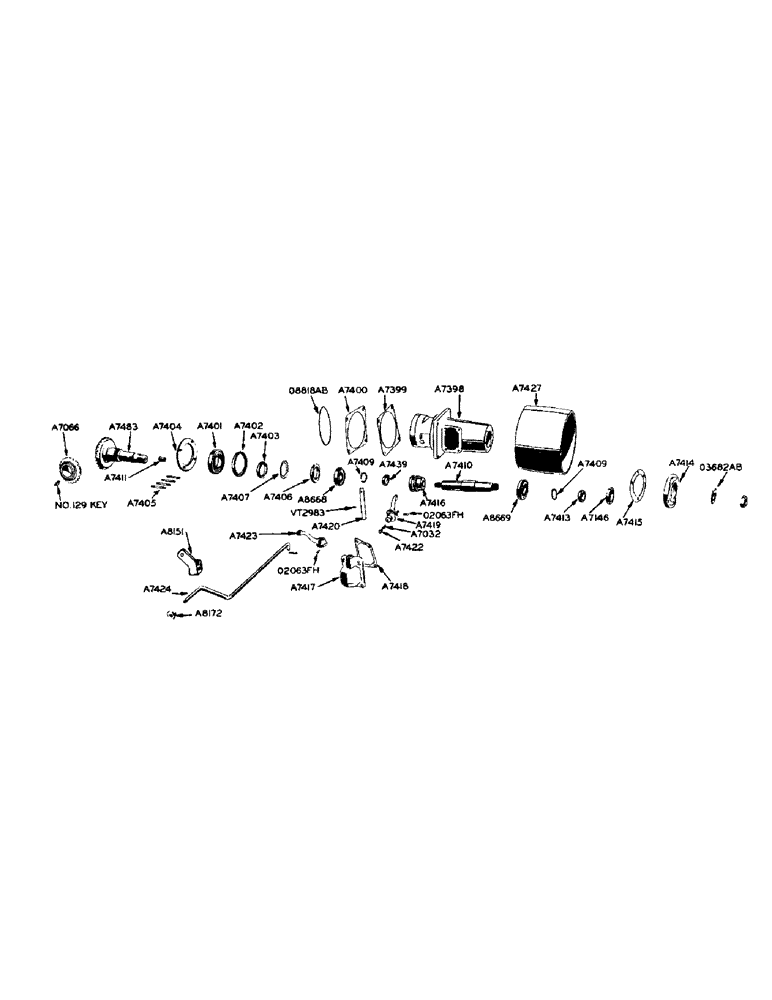

Схема запчастей Case 420 - (083) - BELT PULLEY (21) - TRANSMISSION

Артикул

Название

Примечание

Количество

A7032

SPRING

- belt pulley clutch detent plunger

1шт.

A7066

PINION - belt pulley drive, on range drive shaft

1шт.

No. 129 Woodruff key

1шт.

A7146

OIL SEAL

- belt pulley shaft outer

1шт.

A7398

HOUSING - belt pulley drive

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

4шт.

A7399

SHIM - belt pulley housing (.003")

4шт.

A7400

SHIM - belt pulley housing (.005")

9шт.

A7401

BEARING - belt pulley inner (N.D. #77511)

1шт.

A7402

SPACER - belt pulley inner bearing, large

1шт.

A7403

SPACER - belt pulley shaft inner bearing, small

1шт.

A7404

PLATE - belt pulley inner bearing retaining

1шт.

A7405

STUD - belt pulley inner bearing retainer

4шт.

5/16" N.F. hex. nut and lockwasher

4шт.

A7406

LOCK NUT

LOCKNUT - belt pulley inner bearing

1шт.

A7407

X

LOCKWASHER - belt pulley inner bearing

1шт.

A7408

BEARING - belt pulley center (N.D. no. 77507) Use A8668 when present stocks are exhausted)

1шт.

A7409

SNAP RING,#137, Ext

Ring, Snap, , belt pulley shaft center and outer bearings #137, Ext

2шт.

A7410

SHAFT - belt pulley, outer

1шт.

1" N.F. hex. jam nut

1шт.

A7411

BUSHING - belt pulley shaft pilot

1шт.

A7412

BEARING - belt pulley shaft outer (N.D. no. 477207) Use A8669 when present stocks are exhausted

1шт.

A7413

SLEEVE - belt pulley outer shaft

1шт.

A7414

CAP - end, belt pulley housing

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

3шт.

A7415

GASKET - belt pulley housing end cap

1шт.

A7416

SLEEVE - belt pulley clutch sliding

1шт.

A7417

HOUSING - belt pulley clutch

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

4шт.

A7418

GASKET - belt pulley clutch housing

1шт.

A7419

FORK - belt pulley clutch

1шт.

A7420

SHAFT - belt pulley clutch fork

1шт.

A7422

PLUNGER - belt pulley clutch detent

1шт.

A7423

LEVER - belt pulley clutch

1шт.

A7424

ROD - belt pulley clutch

1шт.

1/8" x 3/4" cotter pin

1шт.

A7427

PULLEY - belt

1шт.

A7439

COLLAR - belt pulley clutch stop

1шт.

A7483

SHAFT - and gear - belt pulley, inner, with A7411 bushings

1шт.

A8151

SUPPORT - belt pulley clutch control rod

1шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher

1шт.

A8172

KNOB - belt pulley clutch hand control

1шт.

1/4" Shakeproof internal tooth lockwasher #1214-00

1шт.

A8343

GAUGE - for setting belt pulley drive gears

1шт.

A8348

ARBOR - for pressing in A7411 bushings into belt pulley inner shaft

1шт.

A8668

BEARING - belt pulley shaft center (N.D. no. 7507)

1шт.

A8669

BEARING - belt pulley shaft outer (N.D. no. 47207)

1шт.

O3682AB

LOCKWASHER - belt pulley outer shaft

1шт.

O8818AB

X

"O" RING - belt pulley drive housing

1шт.

O2063FH

X

ROLL PIN - 1 for belt pulley clutch lever and 1 for belt pulley clutch fork (3/16" x 1-1/8")

2шт.

VT2983

X

"O" RING - belt pulley clutch fork shaft

1шт.

Выбрано товаров: 51
