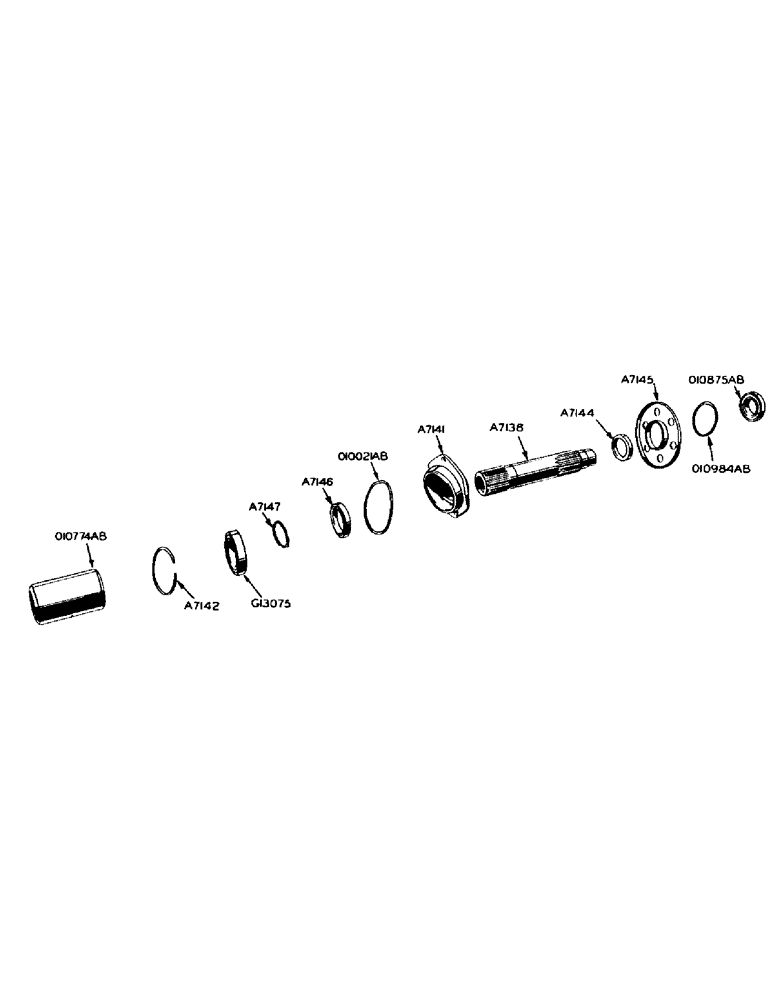

Запчасти Case 420 (077) - CLUTCH SHAFT (18) - CLUTCH

A7138

SHAFT - clutch

1шт.

A7141

CARRIER

- clutch shaft rear bearing

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

A7142

RING, SNAP

SNAP RING - clutch shaft rear bearing (In carrier)

1шт.

A7144

OIL SEAL

OIL SEAL - clutch shaft (Front - flywheel end)

1шт.

A7145

RETAINER

- clutch shaft front oil seal (A7144)

1шт.

A7146

OIL SEAL

- clutch shaft, rear

1шт.

A7147

SNAP RING,#177, Ext

Ring, Snap, , clutch shaft, rear bearing #177, Ext

1шт.

A8729

THIMBLE - to assemble A7146 oil seal on A7138 clutch shaft

1шт.

O10021AB

X

"O" RING - clutch shaft rear bearing carrier

1шт.

O10875AB

X

BEARING - clutch shaft front end (New Departure no. 73L07)

1шт.

O10984AB

X

"O" RING - clutch shaft front oil seal retainer (A7145)

1шт.

G13075

BEARING, BALL

BEARING - clutch shaft, rear (New Departure no. 3L09)

1шт.
