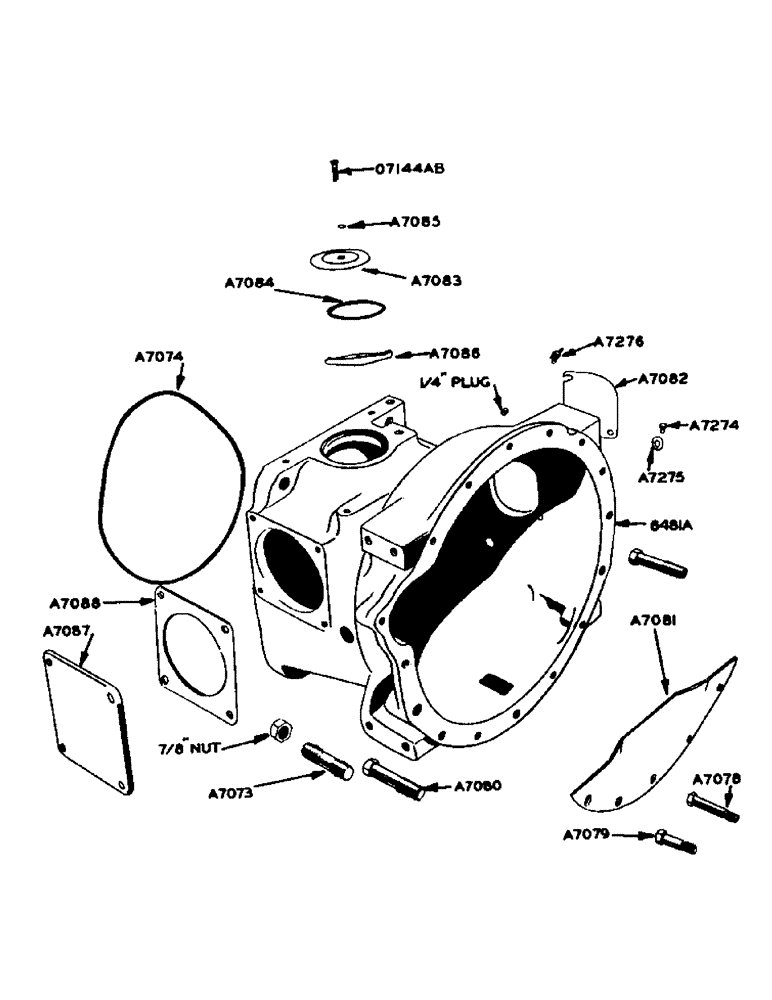

Запчасти Case 420 (076) - CLUTCH HOUSING (18) - CLUTCH

A7073

STUD

- transmission, Serial Range: case-clutch

4шт.

7/8" N.F. hex. nut

4шт.

7/8" std. lockwasher

4шт.

A7074

GASKET

- clutch housing to transmission case

1шт.

A7078

STEP BOLT

- dowel, clutch housing to cylinder block, long

1шт.

1/2" N.F. hex. nut and lockwasher

1шт.

A7079

TUBE

BOLT - dowel, clutch housing to cylinder block, short

1шт.

1/2" N.F. hex. nut and lockwasher

1шт.

A7080

BRACKET

BOLT - clutch housing to cylinder block

2шт.

3/4" N.F. hex. nut and lockwasher

2шт.

A7081

BEARING

SHIELD - dust, clutch housing

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A7082

COVER

- clutch housing hand hole

1шт.

A7083

COVER

- clutch housing top

1шт.

A7084

GASKET

- clutch housing top cover

1шт.

A7085

WASHER

- clutch housing top cover screw

1шт.

A7086

PIN

CLAMP - clutch housing top cover

1шт.

A7087

SPINDLE

COVER - belt pulley housing

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

4шт.

A7088

GASKET

- belt pulley housing cover (A7087)

1шт.

A7274

BOLT - shoulder, for A7082 cover

1шт.

A7275

WASHER - spring, for A7082 cover

1шт.

A7276

SCREW - wing, for A7082 cover

1шт.

6481A

X

HOUSING - clutch

1шт.

1/4" sq. hd. pipe plug

1шт.

1/2" x 2" N.F. hex. bolt w/nut and lockwasher

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

4шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher

1шт.

O7144AB

SCREW - clutch housing top cover

1шт.
