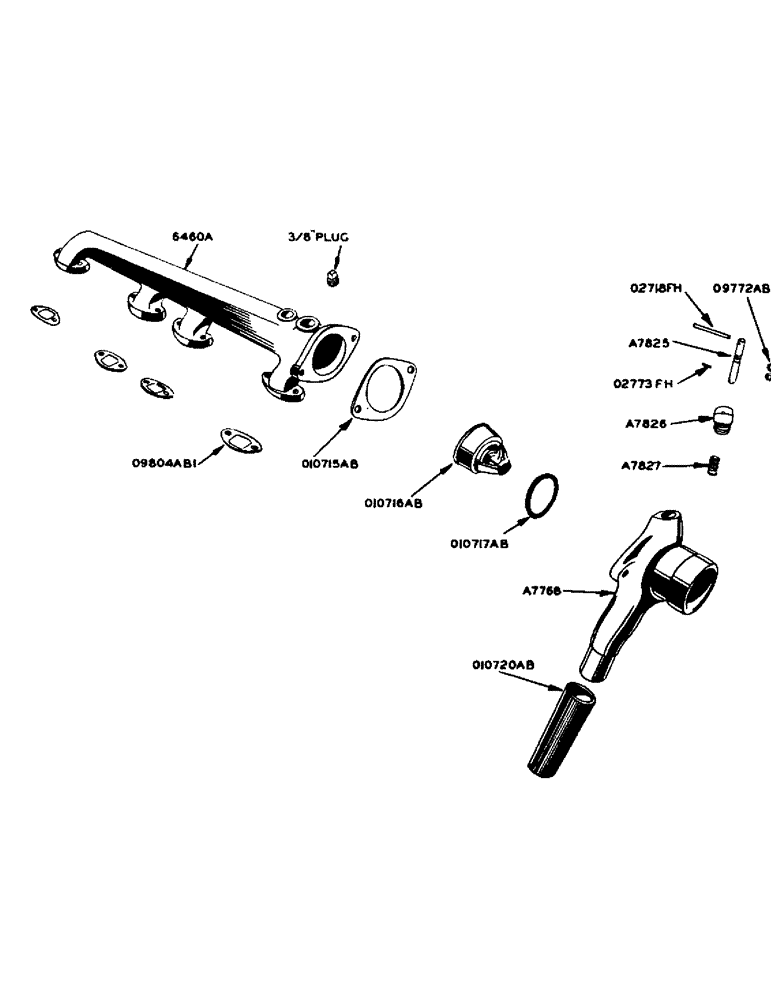

Запчасти Case 420 (072) - THERMOSTAT AND WATER MANIFOLD (10) - ENGINE

A7768

HOUSING - thermostat

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

2шт.

A7825

STEM - thermostat bleed valve

1шт.

A7826

SLEEVE - thermostat bleed valve stem

1шт.

A7827

SPRING

- thermostat bleed valve

1шт.

6460A

MANIFOLD - water

1шт.

5/16" x 1-1/8" N.C. hex. bolt w/lockwasher

8шт.

3/8" sq. hd. pipe plug

1шт.

O9772AB

X

"O" RING - thermostat bleed valve

21шт.

O9804AB1

X

GASKET - water manifold

4шт.

O10715AB

X

GASKET - thermostat housing

1шт.

O10716AB

X

THERMOSTAT - 175 degree - 180 degree opening

1шт.

O10717AB

X

GASKET - thermostat

1шт.

O10720AB

X

HOSE - water by-pass

1шт.

No. 9 hose clamp (1-5/8" O.D. hose)

2шт.

O2718FH

X

ROLL PIN (5/32" x 1-3/4") - for A7825 stem

1шт.

O2773FH

X

ROLL PIN (3/32" x 1/2") - A7825 stem

1шт.
