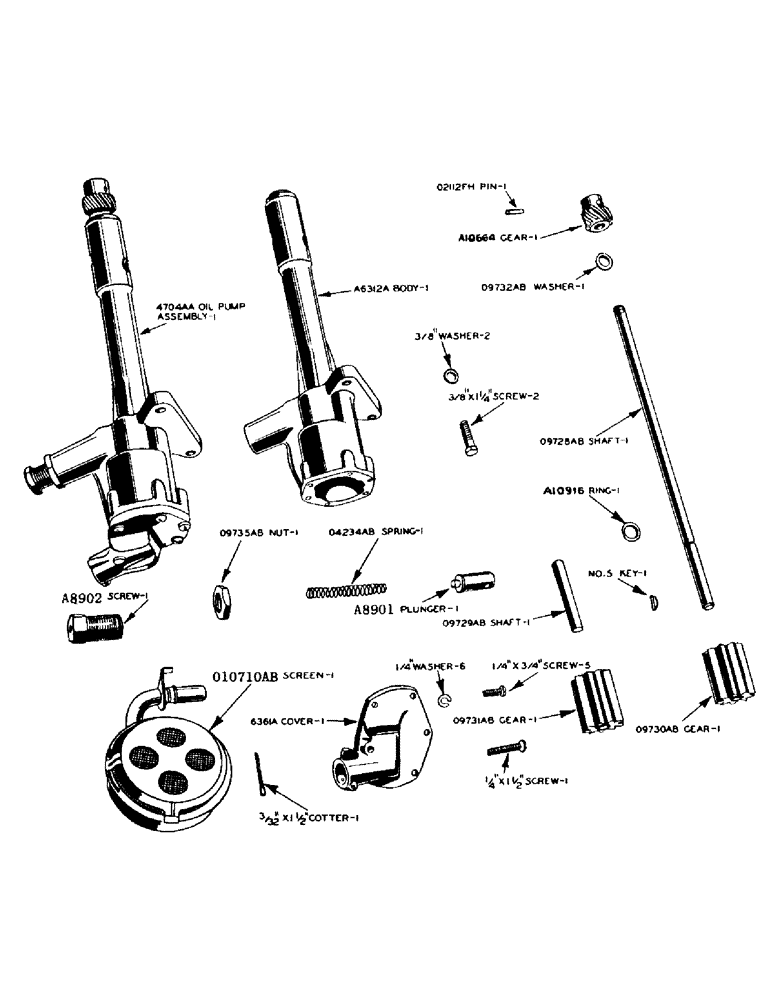

Запчасти Case 420 (039) - POWRCEL DIESEL ENGINE, OIL PUMP (10) - ENGINE

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10664

X

GEAR - oil pump drive (Serial #8105479 and after) see 6313A

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft (Serial no. 8105479 and after) (See O10323AB)

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

6313A

GEAR - oil pump drive (Prior to serial #8105479) see A10664

1шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/lockwasher

1шт.

O4234AB

X

SPRING - oil pump relief plunger

1шт.

O9728AB

X

SHAFT - drive, oil pump

1шт.

O9729AB

SHAFT - stub, oil pump

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

No. 5 Woodruff key

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - thrust, oil pump drive gear

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

O10323AB

RING

SNAP RING - oil pump drive shaft (Prior to serial no. 8105479) (See A10916)

1шт.

O10710AB

SCREEN - oil pump, float-O-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

O2112FH

X

ROLL PIN - (3/16" x 7/8") oil pump drive gear

1шт.

4704AA

X

PUMP - oil assembly, less screen

1шт.
