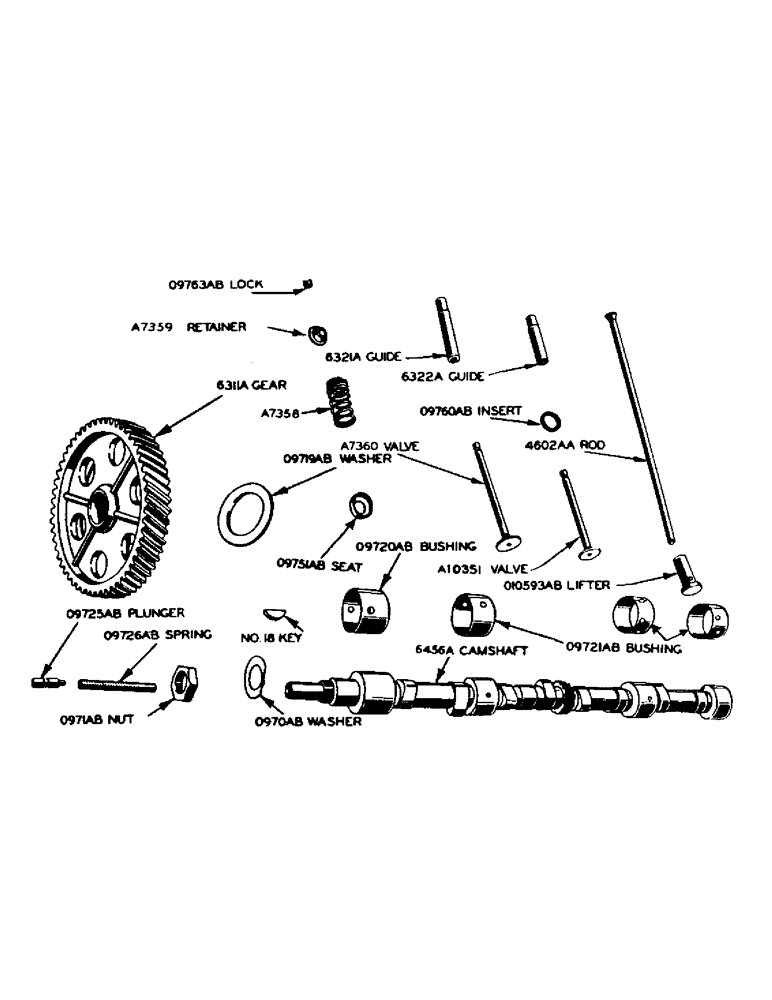

Запчасти Case 420 (038) - POWRCEL DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (10) - ENGINE

A7205

LIFTER - push rod (.010" oversize) see O10593AB

8шт.

A7358

SPRING

- inlet and exhaust valve

8шт.

A7359

RETAINER - inlet and exhaust valve spring (See O9762AB)

8шт.

A7360

VALVE,ENGINE,INLET,S

VALVE - inlet

4шт.

A7361

X

VALVE - exhaust (Use A10351)

1шт.

A10351

VALVE, ENG EXHAUST,

VALVE - exhaust (Scraper type) see O9759AB2

4шт.

6311A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

6321A

GUIDE - inlet valve

4шт.

6322A

GUIDE - exhaust valve

4шт.

6456A

CAMSHAFT

1шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft, front

1шт.

O9721AB

BUSHING - camshaft, second, third and rear

3шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhuast valve spring

8шт.

O9758AB

X

VALVE - inlet, for use with O9762AB retainer (Can use A7360 and A7359 retainer)

4шт.

O9759AB2

X

VALVE - exhaust for use with O9762AB retainer scraper type C (Can use A10351 valve and A7359 retainer)

4шт.

O9760AB

INSERT - exhaust valve seat

4шт.

O9761AB

SPRING - inlet and exhaust valve (Use A7358)

1шт.

O9762AB

RETAINER - valve spring, for O9758AB and O9759AB2 valves (See A7359)

8шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard size) see A7205

8шт.

4602AA

ROD

- push

8шт.
