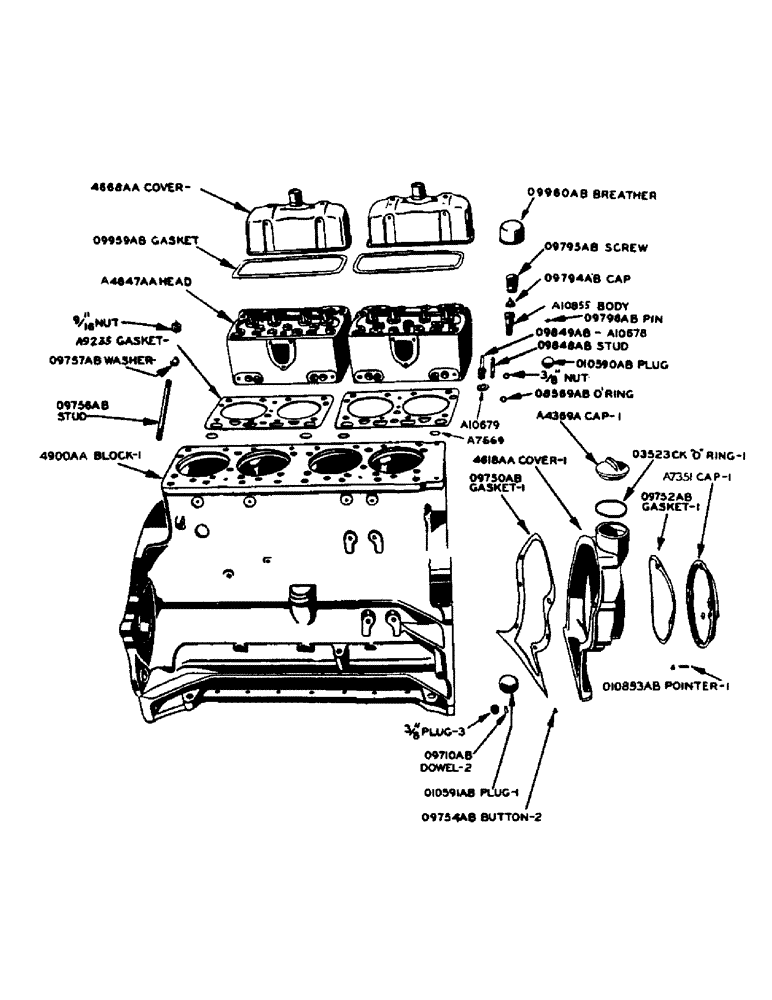

Запчасти Case 420 (032) - POWRCEL DIESEL ENGINE, CYLINDER HEAD AND CYLINDER BLOCK, CYLINDER HEAD (10) - ENGINE

A7669

RING

- rubber, for A9235 cylinder head gasket

4шт.

A7670

GASKET - cylinder head (Use A9235)

1шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

A9239

CYLINDER HEAD GASKET

- for 6320A cylinder head (See A9235)

2шт.

A10678

STUD

- nozzle holder, large (7/8" across flats for wrench) See O9849AB

4шт.

3/8" N.F. light hex. nut

4шт.

A10679

GASKET

- for A10678 nozzle holder stud

4шт.

6320A

HEAD - cylinder (Use A4647AA)

1шт.

A6320A

HEAD - cylinder (Use A4647AA)

1шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

2шт.

O9755AB1

X

GASKET - for 6320A cylinder head (Use A9235)

1шт.

O9756AB

X

STUD - cylinder head

18шт.

9/16" N.F. hex. nut

18шт.

O9757AB

X

WASHER - cylinder head stud

18шт.

O9848AB

X

STUD - nozzle holder, small

4шт.

3/8" N.F. hex. light nut

4шт.

O9849AB

STUD - nozzle holder, large (3/4" across flats for wrench) See A10678

4шт.

3/8" N.F. light hex. nut

4шт.

O9959AB

X

GASKET - cylinder head cover

2шт.

O9960AB

X

BREATHER - cylinder head cover

2шт.

O10590AB

X

WELCH PLUG - for cylinder head (Cadmium plated) (1-5/8" dia.)

4шт.

4647AA

HEAD - cylinder, with valve guides and valve inserts. For repairs furnish 1 - A4647AA with 1 - A9235 gasket and 2 - A7669 "O" rings

1шт.

A4647AA

HEAD - cylinder, with valve guides and valve inserts

2шт.

4668AA

COVER - cylinder head

2шт.

A10855

X

BODY - powrcel

4шт.

O9794AB

X

CAP - powrcel

4шт.

O9795AB

X

SCREW - powrcel clamp

4шт.

O9796AB

PIN - locating powrcel body (1/8" dia. x 5/16" long)

4шт.

4601AA

X

BODY - powrcel (Use A10855)

1шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" dia.), powrcel

1шт.

A7532

CONDUIT - fastens to cylinder block, for wires, powrcel

1шт.

5/16" x 1/2" N.C. hex. bolt, powrcel

2шт.

6400A

BLOCK (Use 4900AA), powrcel

1шт.

O9738AB

FELT WASHER - lube oil level gauge, powrcel

1шт.

O9739AB

X

VALVE - water drain, for cylinder block (1/4" P.T.), powrcel

1шт.

O10591AB

X

WELCH PLUG - for cylinder block (Cadmium plated) (1-13/16" dia.), powrcel

1шт.

V22152

CAP

PLUG - Welch, distributor hole in block (1-1/2" dia.), powrcel

1шт.

4642AA

X

DIPSTICK - lube oil level, with felt washer, powrcel

1шт.

4900AA

BLOCK - cylinder, with bearing caps, camshaft bushings and plugs, powrcel

1шт.

3/8" ctsk. headless pipe plug, powrcel

4шт.

1" ctsk. headless pipe plug, powrcel

1шт.

2-3/8" Welch plug, powrcel

1шт.

1/8" slotted hd. pipe plug, powrcel

3шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

4903AA

PAN - oil

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, oil pan

26шт.

A7351

CAP - timing gear cover, with thrust button

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, timing gear cover

3шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6316A

COVER - timing gear (Use 4618AA)

1шт.

6469A

CAP - timing gear cover (Use A7351)

1шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing gear cover

1шт.

1/4" x 1/2" N.C. hex. bolt, timing gear cover

2шт.

1/4" Shakeproof ext. - int. tooth lockwasher no. 4014-20, timing gear cover

2шт.

O3523CK

X

"O" RING - for A4369A oil filler cap, timing gear cover

1шт.

4618AA

COVER - timing gear, with O9708AB oil seal, dowel pin and thrust button

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" N.C. hex. bolt w/lockwasher, timing gear cover

8шт.
