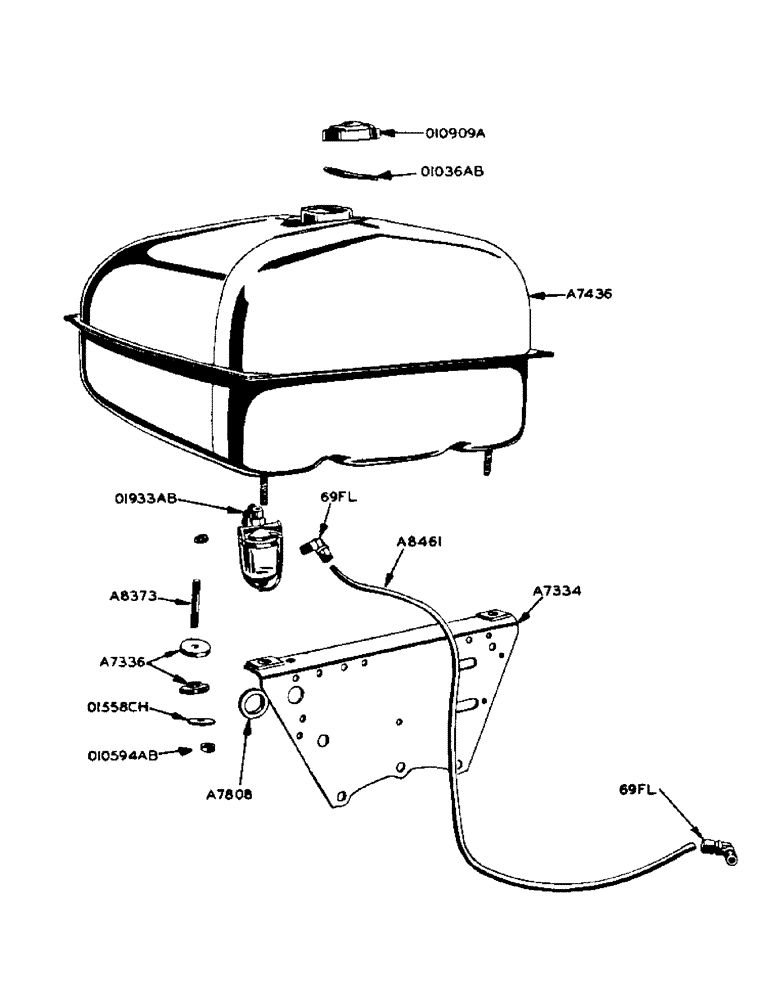

Запчасти Case 420 (028) - POWRDYNE GAS ENGINE, FUEL TANK (10) - ENGINE

A7334

SUPPORT - fuel tank, front

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

3шт.

A7336

CUSHION

BUSHING - fuel tank support

6шт.

A7436

X

TANK - fuel

1шт.

A7807

TUBE - fuel strainer to carburetor (For tractors with hand throttle) (See A8461)

1шт.

Imperial flex. elbow no. 69FL (5/16" tube size x 1/8" pipe thrd.)

2шт.

Imperial flex. connector no. 68FL (5/16" tube size x 1/8" pipe thrd.)

1шт.

Imperial flex. tee no. 72FL (5/16" tube size x 1/8" pipe thrd.) (For low cost fuel)

1шт.

A7808

GROMMET

- fuel tube, on fuel tank front support

1шт.

A8373

STUD

- fuel tank mounting

3шт.

A8461

TUBE - fuel strainer to carburetor (For tractors with foot throttle) (See A7807)

1шт.

Imperial flex. elbow no. 69FL (5/16" tube size x 1/8" pipe thrd.)

2шт.

Imperial flex. tee no. 72FL (5/16" tube size x 1/8" pipe thrd.) (For low cost fuel)

1шт.

O10909A

X

CAP - fuel tank

1шт.

O1036AB

X

GASKET - fuel tank cap

1шт.

O1933AB

X

STRAINER - fuel

1шт.

1/8" sq. hd. pipe plug

1шт.

O10594AB

X

STOP NUT - fuel tank mounting stud (3/8" - 24 N.F. thrd.)

3шт.

O1558CH

X

WASHER - fuel tank mounting stud

3шт.
