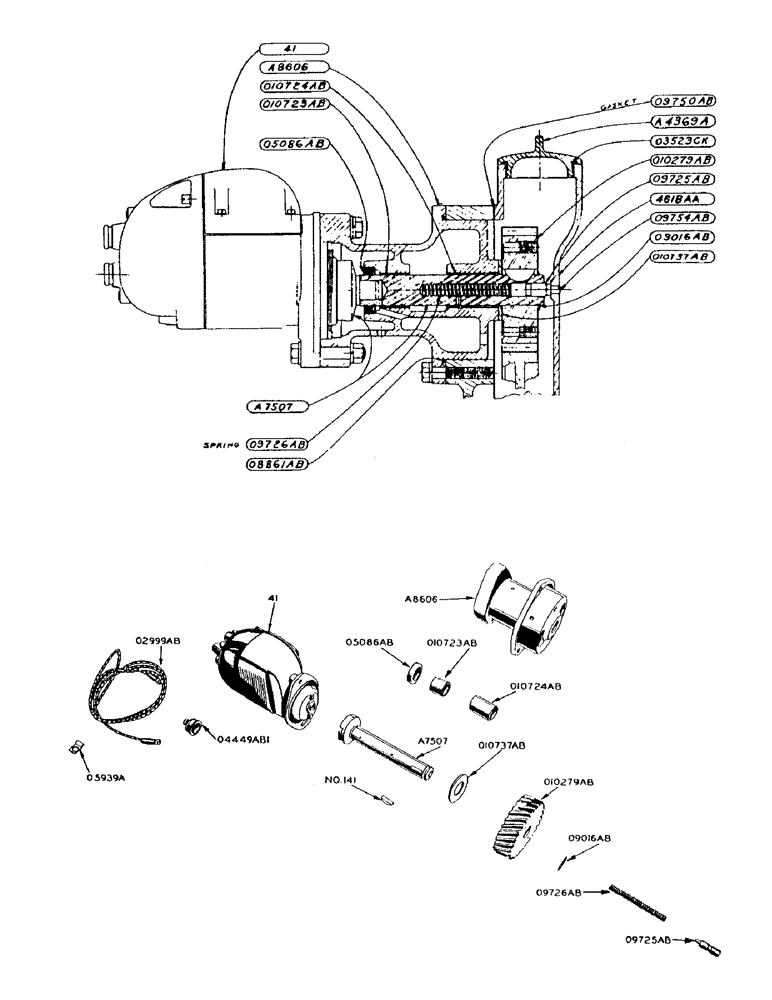

Запчасти Case 420 (027) - POWRDYNE GAS ENGINE, MAGNETO IGNITION (10) - ENGINE

41

SCREW

MAGNETO - "Case" flange mounted (See Magneto Parts Catalog)

1шт.

3/8" x 2-1/4" N.F. hex. bolt w/hex. nut

1шт.

3/8" std. lockwasher

2шт.

3/8" plain washer

2шт.

A7507

SHAFT - magneto drive, with coupling

1шт.

No. 141 Woodruff key

1шт.

A7819

KNOB

- magneto ignition switch

1шт.

A8437

KIT

SWITCH - magneto ignition, with A7819 knob (See O8297AB)

1шт.

A8606

BRACKET - magneto drive, with O10723AB and O10724AB bushings

1шт.

3/8" x 1-5/8" N.C. hex. bolt

1шт.

6466A

BRACKET - magneto drive (Use A8606)

1шт.

O5939A

CLIP - for O2999AB wire (On cylinder block)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw w/lockwasher

1шт.

O2999AB

WIRE - ignition switch to magneto (80" long)

1шт.

O4449AB1

X

NIPPLE - magneto wire

4шт.

O5086AB

X

OIL SEAL - magneto drive shaft

1шт.

O8297AB

SWITCH - lock, magneto ignition (Special) (See A8437)

1шт.

O9016AB

X

SNAP RING - magneto drive shaft

1шт.

O9725AB

X

PLUNGER - thrust, magneto drive shaft

1шт.

O9726AB

X

SPRING - magneto drive shaft thrust plunger

1шт.

O10279AB

X

GEAR - magneto drive

1шт.

O10723AB

BUSHING - magneto bracket, short

1шт.

O10724AB

BUSHING - magneto bracket, long

1шт.

O10737AB

WASHER - thrust, magneto drive gear

1шт.
