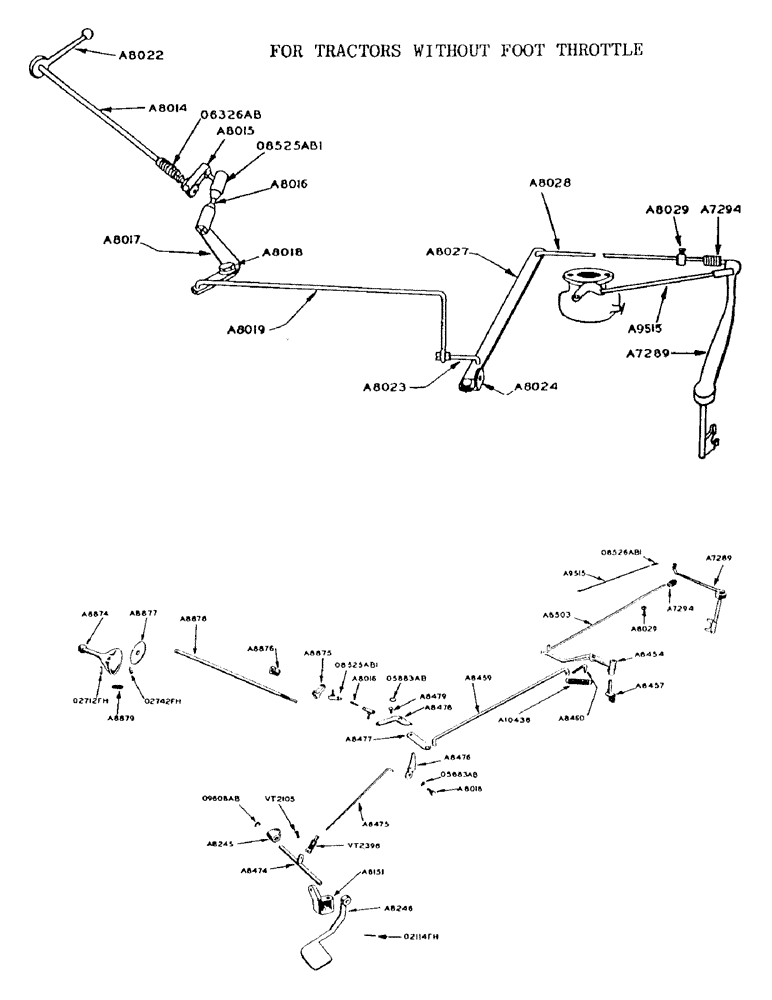

Запчасти Case 420 (022) - POWRDYNE GAS ENGINE, THROTTLE CONTROL (10) - ENGINE
№
Артикул
Название
Примечание
Количество
A7289
SHAFT - governor, with lever and finger
1шт.
3/32" x 3/4" cotter pin
1шт.
A7294
SPRING
- governor
1шт.
A8014
SHAFT - throttle control (3/8" dia.) (In steering column) (Prior to tractor no. 8067630) see A8878
1шт.
3/8" N.F. hex. nut
2шт.
3/8" plain washer
1шт.
A8015
LEVER - throttle, lower end of A8014 shaft (Prior to tractor no. 8067630) see A8875
1шт.
1/4" x 3/4" N.C. sq. hd. cup pt. set screw w/hex. jam nut
1шт.
A8016
ROD
- throttle lever ball joint (1/4" x 1-7/16")
1шт.
A8018
STEP BOLT
STUD - A8476 lever (For tractors with foot throttle)
1шт.
A8018
STEP BOLT
STUD - throttle bell crank (For tractors with hand throttle only)
2шт.
A8019
ROD - throttle control, rear (For tractors not equipped with foot throttle) see A8459
1шт.
3/32" x 3/4" cotter pin
1шт.
A8022
LEVER - hand throttle control (Prior to tractor no. 8067630) see A8874
1шт.
A8023
LINK - adusting, throttle rear rod (For tractors not equipped with foot throttle) see A8460
1шт.
3/8" N.F. hex. nut
2шт.
3/32" x 3/4" cotter pin
1шт.
3/8" plain washer
3шт.
A8024
BRACKET - pivot, throttle control front lever (For tractors equipped with foot throttle) see A8457
1шт.
5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher
2шт.
A8027
LEVER - throttle control, front (For tractors not equipped with foot throttle) see A8454
1шт.
A8028
ROD - throttle control, front (For tractors not equipped with foot throttle) see A8503
1шт.
3/32" x 5/8" cotter pin
1шт.
A8029
COLLAR - throttle front rod stop
1шт.
1/4" x 3/8" N.C. sq. hd. cup pt. set screw
1шт.
A8151
SUPPORT - foot throttle shaft
1шт.
1/2" x 2-3/4" N.C. hex. bolt
1шт.
A8245
SUPPORT - foot throttle shaft bearing, L.H.
1шт.
1/2" x 2-3/4" N.C. hex. bolt
1шт.
A8246
PEDAL - foot throttle
1шт.
A8454
LEVER - throttle control front (For tractors equipped with foot throttle) see A8027
1шт.
5/16" Lincoln drive fitting #5030
1шт.
A8457
PIVOT - throttle control front lever (For tractors equipped with foot throttle) see A8024
1шт.
5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher
2шт.
A8459
ROD - throttle control, rear (For tractors equipped with foot throttle) see A8019
1шт.
3/32" x 3/4" cotter pin
1шт.
A8460
LINK - throttle rear rod adjusting (For tractors equipped with foot throttle) see A8023
1шт.
3/8" N.F. hex. nut
2шт.
3/32" x 3/4" cotter pin
1шт.
A8474
SHAFT - foot throttle and lever
1шт.
A8475
ROD - foot throttle control
1шт.
1/16" x 1/2" cotter pin
1шт.
A8476
LEVER - foot throttle control rod, upper
1шт.
A8477
LEVER - throttle rods intermediate (For tractors equipped with foot throttle)
1шт.
A8478
BELL CRANK - throttle control (For tractors equipped with foot throttle)
1шт.
A8479
STUD - throttle control bell crank and intermediate lever (For tractors equipped with foot throttle)
1шт.
3/8" plain washer
1шт.
5/16" plain washer
1шт.
3/32" x 5/8" cotter pin
1шт.
A8874
LEVER - hand, throttle control (Tractor no. 8067630 and after) see A8022
1шт.
A8875
LEVER
- throttle, lower end of A8878 shaft (Tractors no. 8067630 and after) see A8015
1шт.
1/4" x 3/4" N.C. sq. hd. cup pt. set screw w/hex. jam nut
1шт.
A8876
SPRING
- throttle hand lever, on A8878 shaft (Tractor no. 8067630 and after) see O6326AB
1шт.
A8877
X
DISC - friction, throttle hand lever (Tractor no. 8067630 and after) see O6320AB
1шт.
A8878
SHAFT - throttle control (1/2" dia.) (In steering column) (Tractor no. 8067630 and after) see A8014
1шт.
1/2" N.F. hex. jam nut
2шт.
1/2" plain washer
1шт.
A8879
SCREW ADJUSTING, throttle control idle stop (Tractor no. 8067630 and after)
1шт.
1/4" N.C. hex. jam nut
1шт.
A9515
ROD - governor, Serial Range: lever-carburetor
1шт.
1/16" x 1/2" cotter pin
1шт.
#10 hex. mach. screw nut
1шт.
A10436
VALVE SPRING
SPRING - foot throttle return
1шт.
3/32" x 1" cotter pin
1шт.
O5883AB
WASHER - spring throttle bell crank stud (For tractors not equipped with foot throttle)
1шт.
O5883AB
WASHER - spring, for A8018 and A8479 (For tractors equipped with foot throttle)
2шт.
O6320AB
X
DISC - friction, throttle hand lever (Prior to tractor no. 8067630) see A8877
1шт.
O6326AB
X
SPRING - throttle hand lever, on A8014 shaft (Prior to tractor no. 8067630) see A8876
1шт.
O8525AB1
X
JOINT - ball, throttle bell crank
2шт.
1/4" N.F. hex. nut
1шт.
1/4" std. lockwasher
2шт.
O8526AB1
X
JOINT - ball, governor lever
1шт.
No. 10 std. lockwasher
1шт.
O9608AB
X
"E" RING - retaining, foot throttle shaft
1шт.
O2114FH
X
ROLL PIN - foot throttle pedal (1/8" x 1")
1шт.
O2712FH
X
ROLL PIN - for throttle control hand lever (5/32" x 3/4")
1шт.
O2742FH
X
ROLL PIN - throttle control hand lever idle stop (1/4" x 3/4") (Tractor no. 8067630 and after)
2шт.
VT2105
X
PIN - foot throttle control rod clevis yoke
1шт.
1/16" x 1/2" cotter pin
1шт.
VT2398
X
YOKE - foot throttle control rod clevis
1шт.
Выбрано товаров: 81
