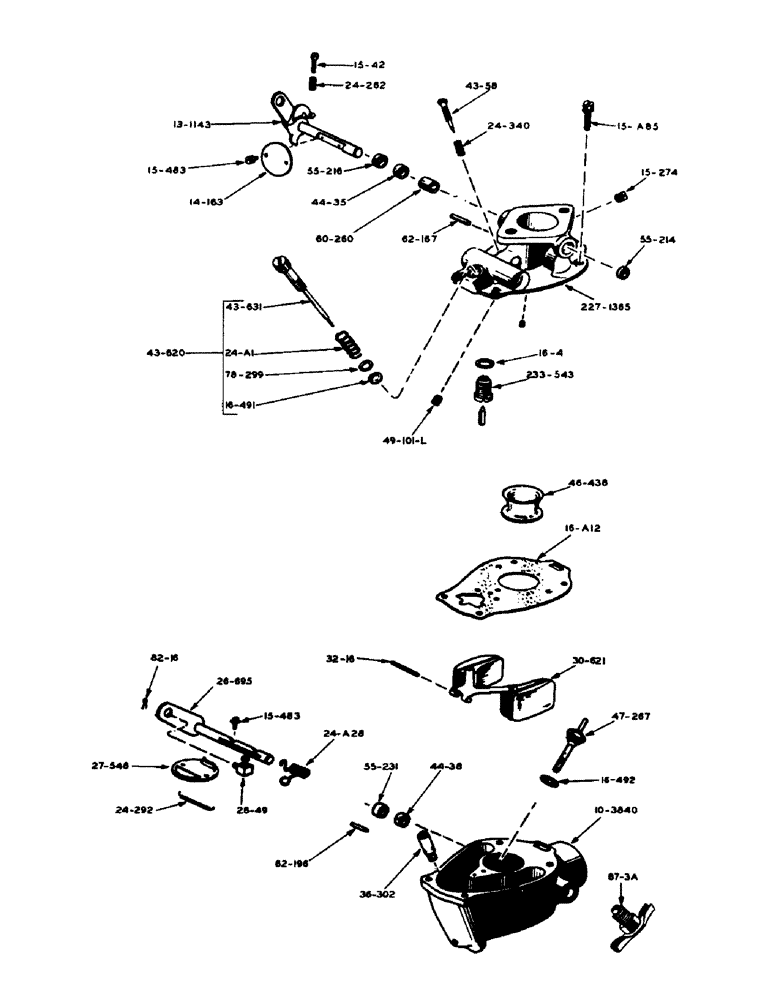

Запчасти Case 420 (018) - POWRDYNE GAS ENGINE, A7777 MARVEL-SCHEBLER CARBURETOR, MODEL TSX-616 (10) - ENGINE

10-3840

BODY ASSEMBLY

1шт.

13-1143

SHAFT - throttle and lever assembly

1шт.

All parts are included in 286-1076 service parts list.

1шт.

14-163

SHAFT

FLY - throttle

1шт.

15-42

SCREW - throttle adjusting (#8-32 x 3/4" fill. head)

1шт.

15-A85

SCREW - throttle, Serial Range: body-bowl

4шт.

15-274

SCREW - (5/16" - 24 headless plug)

1шт.

15-343

SCREW - name plate (#2 x 1/4" drive)

1шт.

15-483

SCREW - choke fly (#6 - 32 x 1/4" binding head)

2шт.

All parts are included in 286-1076 service parts list.

1шт.

15-483

SCREW - throttle fly (#6 - 32 x 1/4" binding head)

2шт.

All parts are included in 286-1076 service parts list.

1шт.

16-4

GASKET - float valve seat

1шт.

All parts are included in 16-594 gasket set.

1шт.

16-A12

GASKET - throttle, Serial Range: body-bowl

1шт.

All parts are included in 16-594 gasket set.

1шт.

16-491

GASKET - main adjusting needle

1шт.

All parts are included in 16-594 gasket set.

1шт.

16-492

X

GASKET - nozzle

1шт.

All parts are included in 16-594 gasket set.

1шт.

16-594

GASKET SET (See note)

1шт.

24-A1

SPRING - main adjusting needle packing

1шт.

24-A28

SPRING - choke return

1шт.

All parts are included in 286-1076 service parts list.

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-292

SPRING - choke fly flapper

1шт.

24-340

SPRING - idle needle

1шт.

All parts are included in 286-1076 service parts list.

1шт.

26-695

SHAFT - choke, and lever assembly

1шт.

27-548

FLY - choke, assembly

1шт.

28-49

SWIVEL - choke

1шт.

30-621

FLOAT AND LEVER ASSEMBLY

1шт.

32-16

SHAFT - float lever

1шт.

All parts are included in 286-1076 service parts list.

1шт.

36-302

SEAT - main adjusting needle

1шт.

All parts are included in 286-1076 service parts list.

1шт.

43-58

NEEDLE - idle adjusting

1шт.

All parts are included in 286-1076 service parts list.

1шт.

43-620

NEEDLE - main adjusting, assembly, complete

1шт.

43-631

NEEDLE - main adjusting, assembly

1шт.

44-35

PACKING - throttle shaft

1шт.

All parts are included in 286-1076 service parts list.

1шт.

44-38

PACKING - choke shaft

1шт.

All parts are included in 286-1076 service parts list.

1шт.

46-438

VENTURI (29/32" dia. throat)

1шт.

47-267

NOZZLE - main

1шт.

49-101-L

JET - idle

1шт.

All parts are included in 286-1076 service parts list.

1шт.

55-214

CUP - throttle shaft

1шт.

All parts are included in 286-1076 service parts list.

1шт.

55-216

RETAINER - throttle shaft packing

1шт.

All parts are included in 286-1076 service parts list.

1шт.

55-231

RETAINER - choke shaft packing

1шт.

All parts are included in 286-1076 service parts list.

1шт.

60-260

BUSHING - throttle shaft

2шт.

All parts are included in 286-1076 service parts list.

1шт.

62-167

PIN - throttle stop

1шт.

62-196

PIN - choke stop

1шт.

78-299

WASHER - main adjusting needle

1шт.

82-16

COTTER - hair pin, choke swivel

1шт.

87-3A

COCK - drain

1шт.

227-1365

BODY AND BOWL COVER ASSEMBLY - throttle

1шт.

233-543

VALVE AND SEAT ASSEMBLY - float

1шт.

All parts are included in 286-1076 service parts list.

1шт.

286-1076

KIT - service parts (See note)

1шт.

A7612

CHOKE CONTROL

1шт.

A7777

CARBURETOR - Marvel-Schebler Model TSX-616

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

No. 8 - 32 x 3/8" rhd. mach. screw (For choke control)

1шт.

O889AB1

X

GASKET -, Serial Range: carburetor-manifold

1шт.

O4591AB

CLIP - choke control

1шт.

No. 10 x 3/4" N.C. rhd. mach. screw w/nut and lockwasher

1шт.

O8813AB

LOOM - choke control (48" long)

1шт.

FOOTNOTE

1шт.

There is a cross reference for these nos to Case nos in Marv Krahn's office

1шт.
