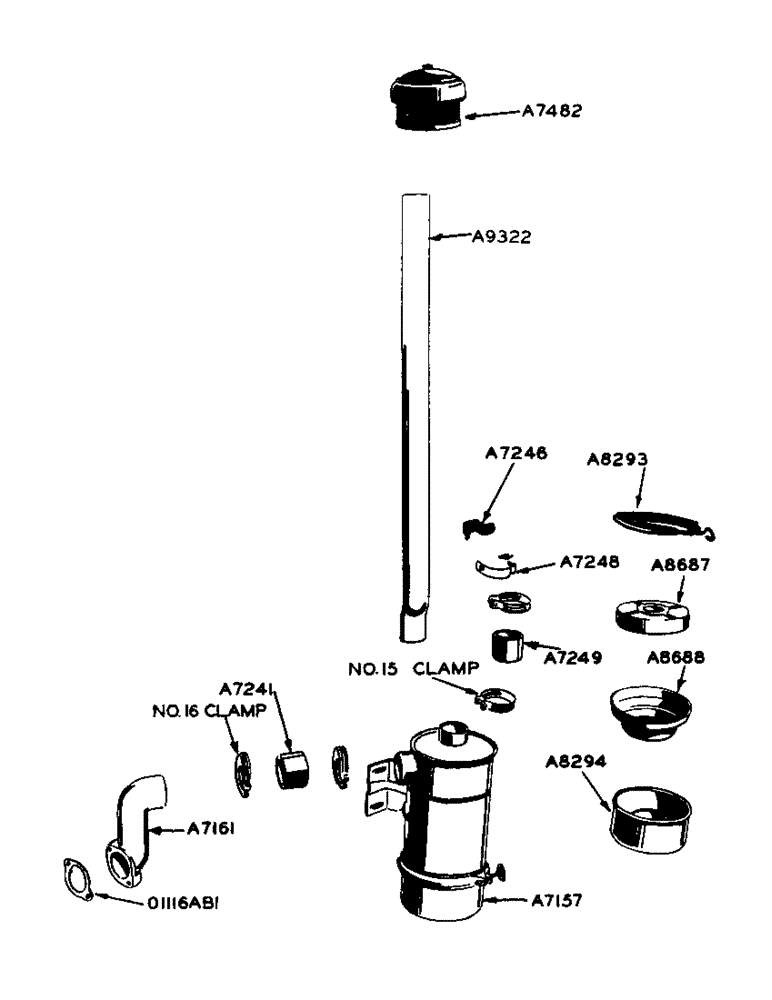

Запчасти Case 420 (016) - POWRDYNE GAS ENGINE, AIR CLEANER (10) - ENGINE

A7157

SPRING

AIR CLEANER (6")

1шт.

3/8" x 3/4" N.C. hex. hd. cap screw

4шт.

3/8" Shakeproof ext. - int. lockwasher #4020-26

4шт.

A7161

ELBOW

- air cleaner

1шт.

A7241

HOSE - air cleaner

1шт.

No. 16 hose clamps (2-5/8" O.D. hose)

2шт.

A7246

SUPPORT - air intake pipe

1шт.

5/16" x 3/4" N.C. carr. bolt w/hex. nut

1шт.

5/16" Shakeproof ext. - int. tooth lockwasher #4018-24

1шт.

A7248

STRAP - air intake pipe, with "T" bolt

1шт.

1/4" N.C. wing nut - zinc plated

1шт.

A7249

HOSE

- air intake pipe

1шт.

No. 15 hose clamps (2-3/8" O.D. hose)

2шт.

A7482

PRESCREENER

PRE-SCREENER - air intake (2")

1шт.

A9322

PIPE - air intake

1шт.

O1116AB1

X

GASKET - carburetor to air cleaner elbow

1шт.

A8293

CLAMP - oil cup retaining, parts for a7157 air cleaner

1шт.

A8294

CUP

- oil, parts for a7157 air cleaner

1шт.

A8687

SCREEN, parts for a7157 air cleaner

1шт.

A8688

BAFFLE - screen, parts for a7157 air cleaner

1шт.
