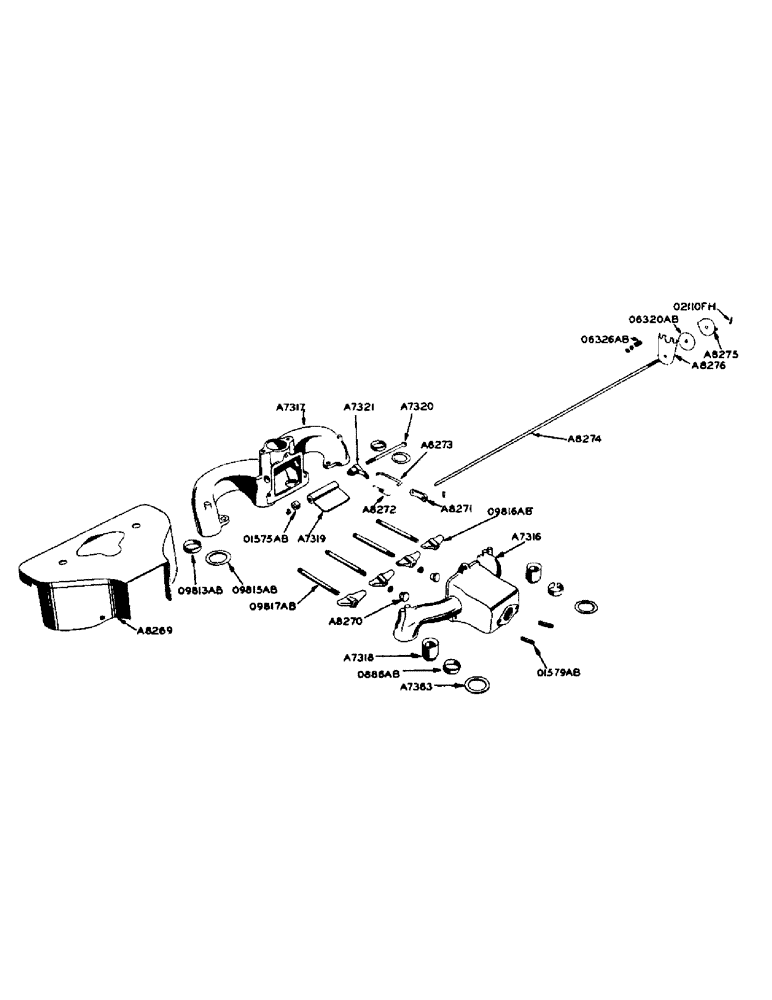

Запчасти Case 420 (014) - POWRDYNE GAS ENGINE, LOW COST FUEL MANIFOLD (10) - ENGINE

A7316

MANIFOLD - intake

1шт.

3/8" x 7/8" N.C. hex. bolt

1шт.

3/8" x 2-1/4" N.C. hex. bolt

2шт.

1/8" sq. hd. pipe plug

2шт.

A7317

MANIFOLD - exhaust

1шт.

A7318

VENTURI - intake manifold

2шт.

A7319

VALVE - head regulator

1шт.

A7320

BOLT - heat regulator valve

1шт.

3/8" N.C. hex. slotted nut

1шт.

3/32" x 7/8" cotter pin

1шт.

A7321

LEVER - heat regulator

1шт.

A7363

MANIFOLD GASKET

- intake manifold

2шт.

A8269

COVER - manifold

1шт.

A8270

NUT - inlet and exhaust manifold stud (7/16" N.F. thrd.)

2шт.

A8271

LEVER - heat regulator control, lower

1шт.

1/4" N.C. hex. jam nut

1шт.

1/4" x 1/2" N.C. sq. hd. cup pt. set screw

1шт.

A8272

SPRING - heat regulator control lever

1шт.

A8273

LINK - heat regulator control lever

1шт.

3/32" x 5/8" cotter pin

2шт.

1/4" plain washer

2шт.

A8274

ROD - heat regulator control

1шт.

3/8" N.F. hex. jam nut

2шт.

A8275

DIAL - heat regulator

1шт.

A8276

SUPPORT - heat regulator dial

1шт.

3/8" x 3/4" N.C. truss hd. mach. screw w/hex. nut

2шт.

3/8" Shakeproof ext. tooth lockwasher #1120-11

1шт.

3/8" Shakeproof ext. - int. tooth lockwasher #4020-26

2шт.

O886AB

X

FERRULE - intake manifold

2шт.

O1575AB

SPACER - heat regulator valve

1шт.

O1579AB

STUD -, Serial Range: carburetor-manifold

2шт.

O6320AB

X

DISC - friction, heat regulator dial

1шт.

O6326AB

X

SPRING - heat regulator control

1шт.

O9813AB

X

FERRULE - exhaust manifold

1шт.

O9815AB

X

GASKET - exhaust manifold

4шт.

O9816AB

CLAMP - intake and exhaust manifold

4шт.

09817AB

STUD - intake and exhaust manifold

4шт.

7/16" N.F. hex. jam nut

2шт.

O2110FH

X

ROLL PIN - heat regulator dial (3/16" x 3/4")

1шт.
