Запчасти Case 420 (012) - POWRDYNE GAS ENGINE, OIL FILTER (10) - ENGINE

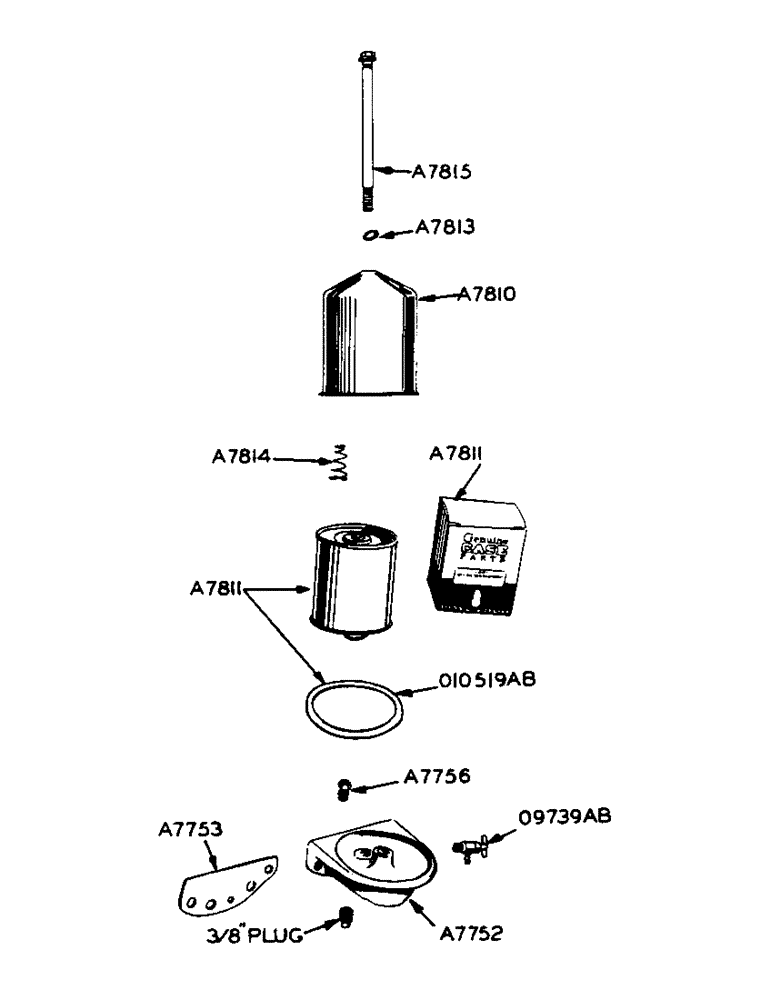

Схема запчастей Case 420 - (012) - POWRDYNE GAS ENGINE, OIL FILTER (10) - ENGINE

Артикул

Название

Примечание

Количество

A7752

BASE - oil filter

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

A7753

GASKET

- oil filter base

1шт.

A7756

VALVE

- check, oil filter

1шт.

A7810

SHELL

1шт.

A7811

ENGINE OIL FILTER

ELEMENT - with O10519AB gasket

1шт.

A7813

GASKET

- oil filter shell

1шт.

A7814

SPRING

- oil filter

1шт.

A7815

PIPE - clean oil outlet

1шт.

O9739AB

X

VALVE - water drain, 1/4" pipe thrd.

1шт.

O10519AB

GASKET - oil filter

1шт.

Выбрано товаров: 11
