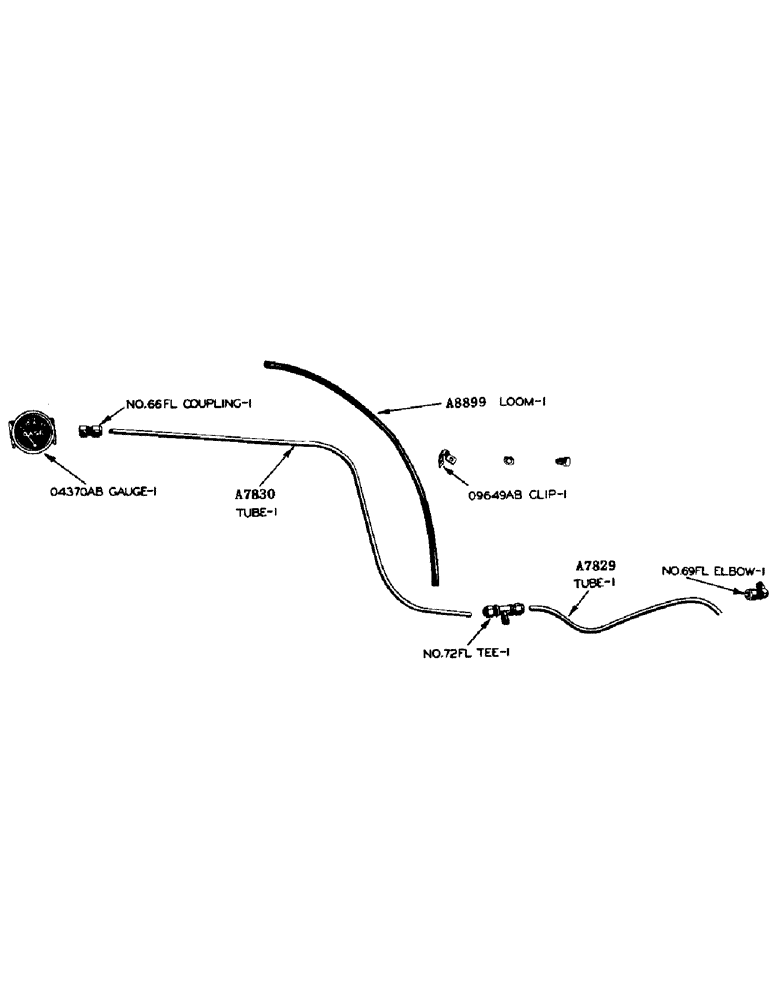

Запчасти Case 420 (010) - POWRDYNE GAS ENGINE, LUBRICATING OIL PRESSURE GAUGE (10) - ENGINE

A7829

TUBE - oil gauge front (14-1/2" long)

1шт.

Imperial flex. union no. 62FL (1/4" tube size) (Connects A7829 and A7830 tubes) (For tractors without hour meter)

1шт.

Imperial flex. elbow no. 69FL (1/4" tube size x 1/8" P.T.) (Connects tube to cylinder block)

1шт.

Imperial flex. tee no. 72FL (1/4" tube size x 1/8" P.T.) (Connects tube with A7830 and O10208AB pressure switch connector) (For tractors with hour meter)

1шт.

A7830

TUBE - oil, gauge, rear (44" long)

1шт.

Imperial flex. union no. 62FL (1/4" tube size) (Connects A7829 and A7830 tubes) (For tractors without hour meter)

1шт.

Imperial flex. female coupling no. 66FL (1/4" tube size x 1/8" P.T.) (Connects tube to oil gauge)

1шт.

Imperial flex. tee no. 72FL (1/4" tube size x 1/8" P.T.) (Connects tube with A7829 and O10208AB pressure switch connector) (For tractors with hour meter)

1шт.

A8899

LOOM - for A7830 rear tube

1шт.

O4370AB

X

GAUGE - oil pressure

1шт.

O9649AB

CLIP - oil gauge tube (On fuel tank front support)

1шт.

1/4" x 1/2" N.C. hex. bolt w/lockwasher

1шт.
