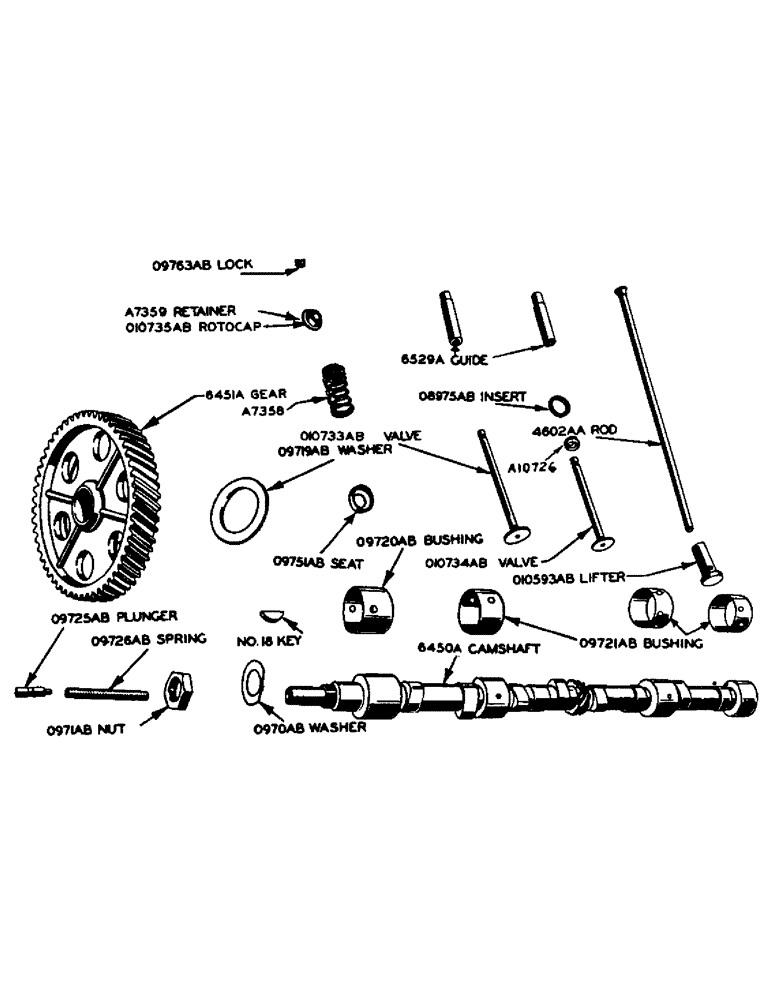

Запчасти Case 420 (009) - POWRDYNE GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT, VALVES, PUSH RODS AND CAMSHAFT (10) - ENGINE

A7205

LIFTER - push rod (.010" oversize) (See O10593AB)

8шт.

A7358

SPRING

- inlet and exhaust valve

8шт.

A7359

RETAINER - inlet valve spring

4шт.

A8121

VALVE - inlet (For low cost fuel)

4шт.

A8122

VALVE - exhaust (For low cost fuel)

4шт.

A8491

VALVE - exhaust (Stellite face) (For A8493 cylinder head for gasoline at high altitudes)

4шт.

A8492

INSERT - exhaust valve seat (For A8493 cylinder head for gasoline at high altitudes)

4шт.

6450A

CAMSHAFT

1шт.

6451A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

6529A

GUIDE - inlet and exhaust valve

8шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O8975AB

INSERT - exhaust valve seat (For A8123, A8933 and 4968AA cylinder head)

4шт.

O9719AB

WASHER - camshaft thrust

1шт.

O9720AB

BUSHING - camshaft, front

1шт.

O9721AB

BUSHING - camshaft, second, third and rear

3шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

8шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (Standard size) (See A7205)

8шт.

O10733AB

VALVE - inlet (For gasoline)

4шт.

O10734AB

VALVE - exhaust (For gasoline with 4968AA cylinder head)

4шт.

O10735AB

ROTOCAP - exhaust valve

4шт.

4602AA

ROD

- push

8шт.
