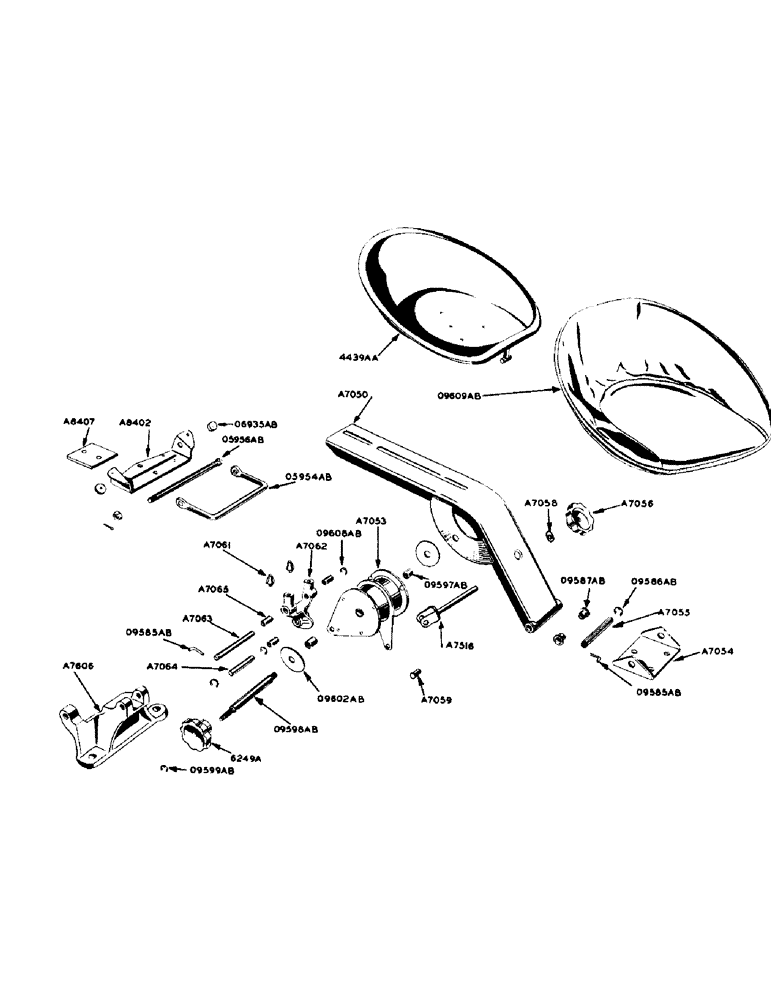

Запчасти Case 420 (112) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

A7050

CHANNEL - seat, with O9578AB bushings

1шт.

A7053

SPRING

- rubber, torsion, and side arm assembly

1шт.

A7054

SPARE PART

BRACKET - seat channel (For diesel) see A10088

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

3шт.

A7055

PIN - pivot, seat channel

1шт.

A7056

NUT

- hand wheel, to adjust seat spring

1шт.

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

A7059

PIN - seat spring mounting adjusting rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7060

BRACKET

LINK - (Use A7062)

1шт.

A7061

BUMPER

- seat, on A7062

2шт.

A7062

LINK - seat mounting support, with 3 - A7065 bushings and 2 - A7061 bumpers

1шт.

A7063

PIN - seat mounting support link, upper

1шт.

A7064

FRAME

PIN - seat mounting support link, lower

1шт.

A7065

BUSHING

- for A7062 support link

3шт.

A7516

ROD AND YOKE END - seat spring adjusting

1шт.

A7606

BRACKET - seat mounting

1шт.

5/8" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

A8402

BRACKET - seat rear support

1шт.

A8407

PLATE - seat channel reinforcement

1шт.

A10088

BRACKET - seat channel (For spark ignition) see A7054

1шт.

A10298

BACK REST - for operator's seat (Special)

1шт.

6249A

NUT - hand wheel, to adjust seat mounting

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

1/2" N.F. light castellated nut

1шт.

3/32" x 7/8" cotter pin

1шт.

O6953AB

BUMPER - seat rear support

2шт.

No. 10 x 3/4" rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9585AB

X

LOCK - for A7063 and A7055 pins

2шт.

O9586AB

X

SNAP RING - retaining, seat channel pivot pin

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9597AB

BUSHING - for O9598AB pivot bolt

2шт.

O9598AB

X

BOLT - pivot, seat mounting

1шт.

1/2" N.F. hex. jam nut

1шт.

1/2" std. lockwasher

1шт.

O9599AB

X

"E" RING - retaining, for O9598AB pivot bolt

1шт.

O9602AB

X

DISC - friction, for torsion spring assembly

2шт.

O9608AB

X

RING - retaining, for A7063 and A7064 link pins

3шт.

O9609AB

CUSHION - seat

1шт.

4439AB

SEAT - operator's

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut

2шт.

1/2" ext. - int. tooth Shakeproof lockwasher #4024-32-00

2шт.
