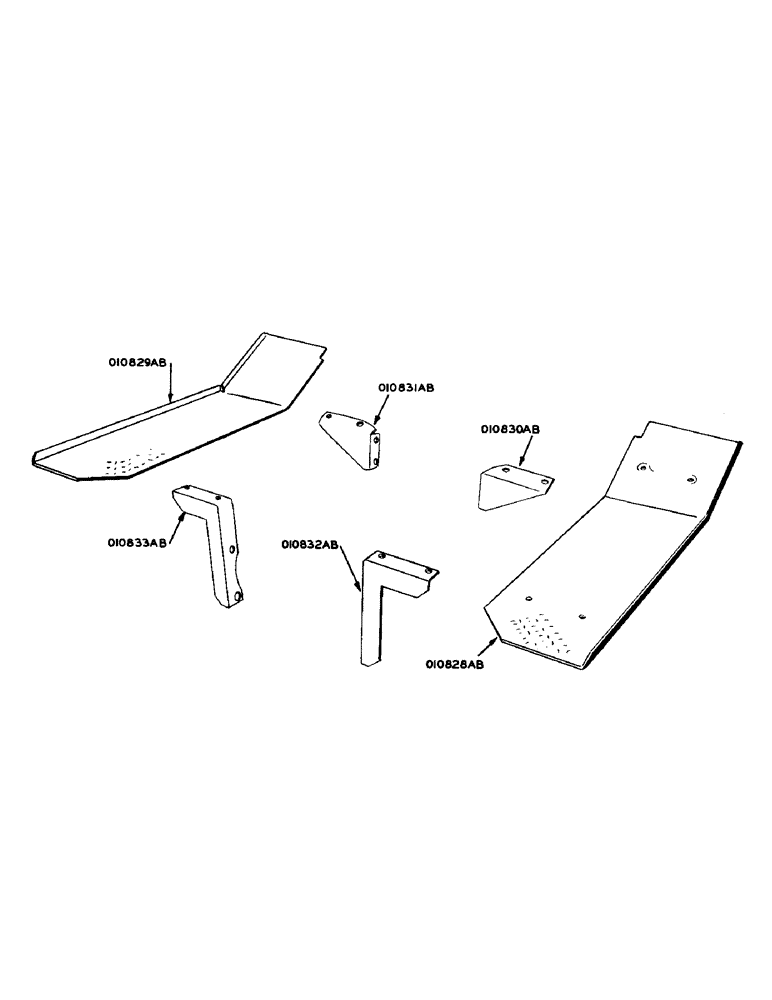

Запчасти Case 420 (111) - PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

A10304

PLATFORM - R.H. (For use with tractor cab) see O10828AB

1шт.

A10305

PLATFORM - L.H. (For use with tractor cab) see O10829AB

1шт.

A10306

SHEET - tractor cab filler, R.H.

1шт.

A10307

SHEET - tractor cab filler, L.H.

1шт.

A10308

COVER - hydraulic control opening (For use with tractor cab)

1шт.

O10828AB

PLATFORM - R.H. (See A10304)

1шт.

3/8" x 1" N.C. truss hd. mach. screw w/hex. nut and lockwasher

3шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

4шт.

O10829AB

PLATFORM - L.H. (See A10305)

1шт.

3/8" x 1" N.C. truss hd. mach. screw w/hex. nut and lockwasher

3шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

4шт.

O10830AB

SUPPORT - platform front, R.H.

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

O10831AB

SUPPORT - platform front, L.H.

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

O10832AB

SUPPORT - platform rear, R.H.

1шт.

O10833AB

SUPPORT - platform rear, L.H.

1шт.
