Запчасти Case 420 (145) - TOOLS AND TOOL BOX (88) - ACCESSORIES

A7487

FIXTURE - with necessary tools, for replacing or reaming connecting rod bushings (Consists of 1 - A7488 fixture, 1 - A7489 reamer, 1 - A7490 driver and 1 - A7491 driver sleeve)

1шт.

A7942

TOOL

BAR - to adjust PTO clutch and hand operated traction clutch

1шт.

A8340

JAW - hydraulic pump drive shaft bearing puller (To be used with 3913AA puller by removing O8662Ab jaws)

2шт.

Set of service tools A8358

1шт.

A8341

THIMBLE - to assemble O10816AB and O10817AB oil seals on differential gear and sleeve

1шт.

Set of service tools A8358

1шт.

A8342

PLATE - to adjust steering worm bearings on tractors with power steering

1шт.

Set of service tools A8358

1шт.

A8343

GAUGE - for setting belt pulley drive gears

1шт.

Set of service tools A8358

1шт.

A8344

WRENCH - spanner, for O10772AB range drive shaft gear lock nut

1шт.

Set of service tools A8358

1шт.

A8345

WRENCH - spanner socket, for O9023AB and O10803AB lock nuts on countershaft

1шт.

Set of service tools A8358

1шт.

A8346

ARBOR - for pressing A7851 needle bearing into steering gear housing

1шт.

Set of service tools A8358

1шт.

A8346

ARBOR - for pressing A7851 needle bearing for upper front axle king pin

1шт.

Set of service tools A8358

1шт.

A8347

TOOL

ARBOR - for pressing O10785AB low range gear bearing

1шт.

Set of service tools A8358

1шт.

A8348

ARBOR - for pressing A7411 bushing into belt pulley inner shaft

1шт.

A8349

ARBOR - for pressing in A7290 governor lever shaft needle bearings

1шт.

Set of service tools A8358

1шт.

A8351

ARBOR - for pressing O10867AB needle bearing into front axle

1шт.

Set of service tools A8358

1шт.

A8352

ARBOR - for pressing in O10972AB needle bearing into 6525A and A7973

1шт.

Set of service tools A8358

1шт.

A8354

ARBOR - for pressing O10971AB needle bearing into 6523A and A7970 housings

1шт.

Set of service tools A8358

1шт.

A8354

ARBOR - for pressing O10866AB needle bearing into front axle

1шт.

Set of service tools A8358

1шт.

A8355

ARBOR - for pressing O10848AB needle bearing in A8133 cover

1шт.

Set of service tools A8358

1шт.

A8356

ARBOR - for pressing O10787AB bearing into high range gear

1шт.

Set of service tools A8358

1шт.

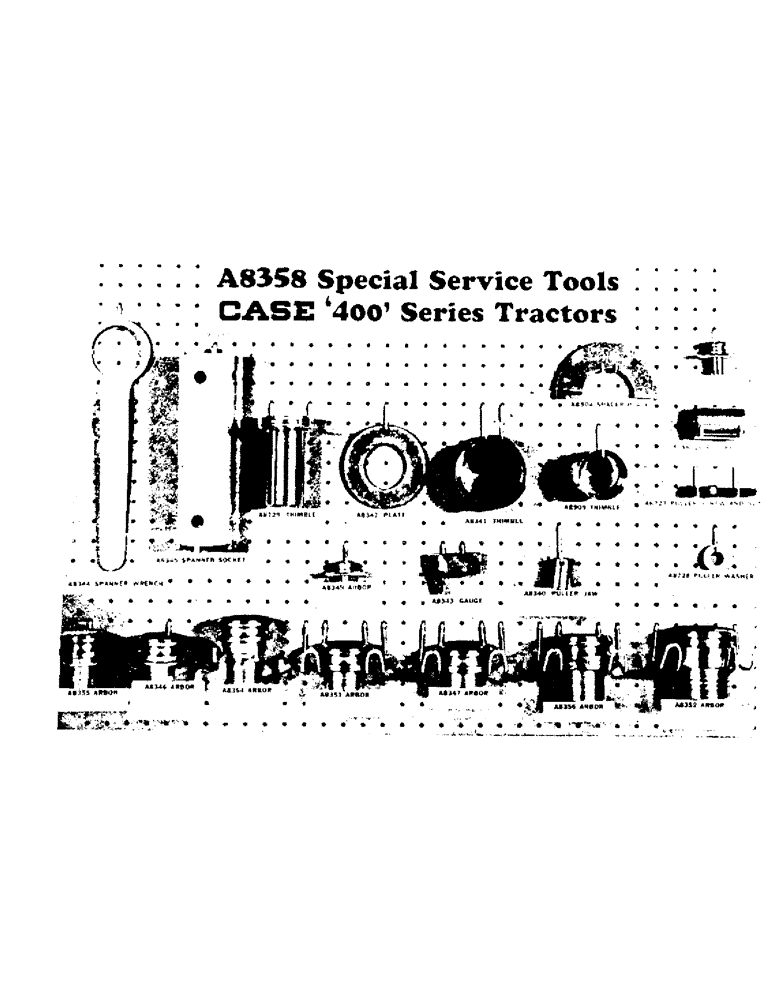

A8358

Set of service tools, Consists of P/N A8340, A8341, A8342, A8343, A 8344, A8345, A8346, A8346, A8347, A8349, A8351, A8352, A8354, A8354, A8355, A8356, A8726, A8727, A8728, A8729, A8940, A8909

1шт.

A8696

WRENCH - socket, for rear wheel hub and rim clamp nuts

1шт.

A8726

BODY - puller, for A8348 arbor

1шт.

Set of service tools A8358

1шт.

A8727

SCREW - puller, for A8348 arbor

1шт.

Set of service tools A8358

1шт.

3/4" N.F. hex. nut

1шт.

A8728

WASHER - puller, for A8348 arbor

1шт.

Set of service tools A8358

1шт.

A8729

THIMBLE - to assemble A7146 oil seal on A7138 clutch shaft

1шт.

Set of service tools A8358

1шт.

A8904

PLATE - spacer, to space and press O10889AB oil seal into the hydraulic housing

2шт.

Set of service tools A8358

1шт.

A8909

THIMBLE - to assemble O10889AB oil seal on O10886AB PTO clutch arms

1шт.

Set of service tools A8358

1шт.

A9031

ARBOR - for pressing O10882AB rear needle bearing into O10880AB shaft

1шт.

A9032

ARBOR - for pressing LS-2923-S front needle bearing into O10880AB shaft

1шт.

A9033

JAWS - puller, to remove O10882AB rear pilot bearing from O10880AB PTO shaft

2шт.

A9034

JAW - puller, to remove LS-2923-S front pilot bearing from O10880AB PTO shaft

2шт.

A9035

BOLT - puller, used with A9033 and A9034 jaws and A9036 cup

1шт.

A9036

CUP - puller, for removing O10882AB and LS-2923-S bearings from O10880AB PTO shaft

1шт.

A9491

WRENCH - power adjustable tread rear wheel jack screw

1шт.

A9817

ARBOR - for pressing A7985 power steering worm shaft needle bearing into carrier

1шт.

A9818

ARBOR - for pressing A7986 power steering worm shaft needle bearing into housing

1шт.

A9834

THIMBLE - to protect O9074AB1 oil seal when installing A9002 bearing carrier over the worm shaft

1шт.

5366A

WRENCH - rear axle lock nut

1шт.

O6019A

HANDLE - spark plug wrench

1шт.

O1982AB

WRENCH - hub cap

1шт.

O3317AB

WRENCH - socket, rear axle shaft outer nut

1шт.

O6785AB

TOOL - tire

1шт.

O7421AB

WRENCH - spark plug

1шт.

O10315AB

WRENCH - 3/4" hex. crowfoot, for injector tube nut (High pressure lines on fuel pump) (Diesel only)

1шт.

O10316AB

WRENCH - 7/8" hex., for cylinder head stud nut (Under rocker arms)

1шт.

2884AA

BOX - tool 5/16" x 5/8" N.C. hex bolt w/lockwasher

1шт.
