Запчасти Case 420 (143) - JACK PAD AND BASE FOR PORTABLE HYDRAULIC CYLINDER (88) - ACCESSORIES

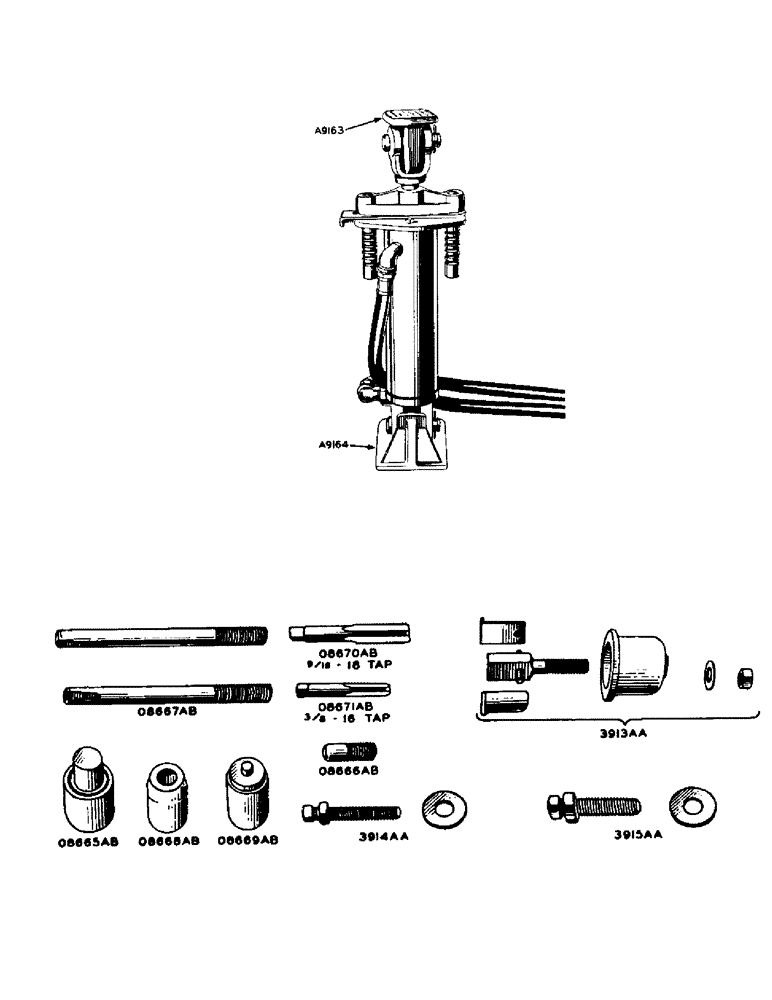

Схема запчастей Case 420 - (143) - JACK PAD AND BASE FOR PORTABLE HYDRAULIC CYLINDER (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

A9163

PAD - jack

1шт.

A9164

BASE

- jack

1шт.

A9165M

Jack pad and base for portable cylinder (Mchy. item)

1шт.

A8340

JAW - hydraulic pump drive shaft bearing pulley. (To be used with 3913AA puller by removing O8662AB jaws), 3920AA special tools for servicing hyd control unit

2шт.

6083A

CUP - bearing puller (Use 3913AA), 3920AA special tools for servicing hyd control unit

1шт.

O8662AB

JAW - for 3913AA puller, 3920AA special tools for servicing hyd control unit

2шт.

O8665AB

TOOL - bearing pressing, 3920AA special tools for servicing hyd control unit

1шт.

O8666AB

STUD - dowel, short, 3920AA special tools for servicing hyd control unit

1шт.

O8667AB

STUD - dowel, long, 3920AA special tools for servicing hyd control unit

2шт.

O8668AB

THIMBLE - to assemble oil seal on piston rod, 3920AA special tools for servicing hyd control unit

1шт.

O8669AB

TOOL - valve seat pressing (Relief valve), 3920AA special tools for servicing hyd control unit

1шт.

O8670AB

TAP - hand, 9/16" - 18 standard plug, 3920AA special tools for servicing hyd control unit

1шт.

O8671AB

TAP - hand, 3/8" - 16 standard plug, 3920AA special tools for servicing hyd control unit

1шт.

3913AA

PULLER - pump shaft bearing, 3920AA special tools for servicing hyd control unit

1шт.

3914AA

PULLER - relief valve seat (Consists of 1 - O8685AB washer with 3/8" x 3" N.C. C.P. set screw and hex. nut), 3920AA special tools for servicing hyd control unit

1шт.

3915AA

PULLER - ball check seat (Consists of 9/16" x 2-1/2" N.F. hex. bolt - min. thrd. lgth. 2-1/4" - with hex. nut and 1/2" plain washer), 3920AA special tools for servicing hyd control unit

1шт.

3920AA

KIT - service, consists of above listed items. This is a set of special tools required for servicing the hydraulic control unit.

1шт.

Выбрано товаров: 17
