Запчасти Case 420 (067) - PARTS FOR A7642 AND A7656 DASH LAMPS (55) - ELECTRICAL SYSTEMS

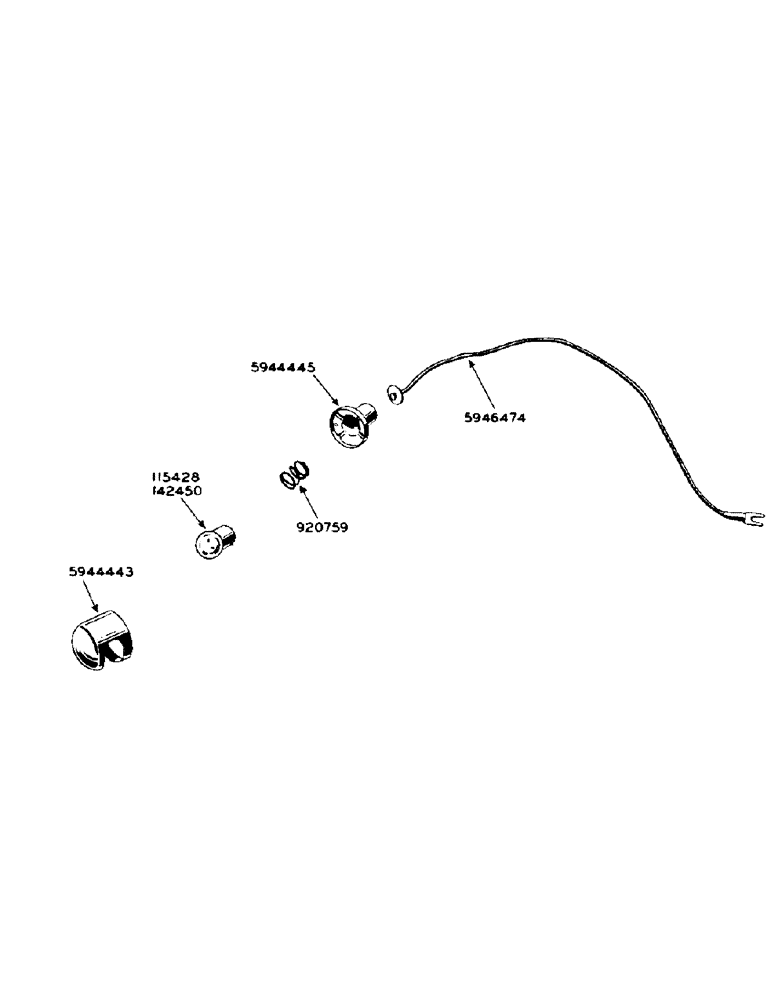

Схема запчастей Case 420 - (067) - PARTS FOR A7642 AND A7656 DASH LAMPS (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

115428

BULB - 3 C.P. - 6 volt (Mfg. #63) (For spark ignition engines)

1шт.

142450

BULB,C2R, #67, 13.5V

- 3 C.P. - 12 volt (Mfg. #67) (For diesel engines)

1шт.

920759

SPRING

1шт.

5944443

COVER

1шт.

5944445

SOCKET

1шт.

5946474

WIRE ASSEMBLY

1шт.

A9543

SWITCH - (6 volt) turn signal (Spark ignition) see A10457

1шт.

A9544

BRACKET - turn signal switch mounting

1шт.

5/16" x 1/2" N.C. hex. bolt w/lockwasher, turn signal

2шт.

A01457

SWITCH - turn signal (12 volt) (Diesel) see A9543

1шт.

A01458

FLASHER - (12 volt) (Diesel) see A10464, turn signal

1шт.

A10459

LIGHT - two face amber red (12 volt) (Diesel) see A10463, turn signal

2шт.

A10460

BRACKET - lamp mounting, turn signal

2шт.

A10463

LIGHT - (6 volt) two face amber red (Spark ignition) (See A10459), turn signal

2шт.

A10464

FLASHER - (6 volt) spark ignition, see A10458, turn signal

1шт.

A10465

WIRE - turn signal

1шт.

A9975

BRACKET - horn mounting, 6-V

1шт.

1/4" x 1" N.F. hex. hd. cap screw w/hex. nut, horn 6-V

2шт.

1/4" #4014-20 internal-external Shakeproof lockwasher, horn 6-V

2шт.

A9976

HORN - 6 volt

1шт.

1/4" N.F. hex. nut w/lockwasher, horn 6-V

2шт.

O2457AB

CLIP - button to wire (On trans. top cover), horn 6-V

1шт.

O4277AB1

CLIP - wires (On seat channel), horn 6-V

1шт.

5/16" x 5/8" N.C. rhd. mach. screw w/hex. nut and lockwasher, horn 6-V

1шт.

O6194AB

CLIP - wires (1 on fuel tank rear support stud and 1 on foot throttle shaft lug), horn 6-V

2шт.

O7019AB

X

WIRE - horn to ground, 6-V

1шт.

O7020AB

WIRE - ammeter to horn button and tail lamp, horn 6-V

1шт.

O7657AB

LOOM - horn button wires, 6-V

1шт.

O7740AB

BUTTON - horn, 6-V

1шт.

#10 x 5/8" N.C. rhd. mach. screw w/nut and lockwasher, horn 6-V

2шт.

VT4978

WIRE - horn button to , windshield wiper

1шт.

O6528AB

WIRE - ammeter to switch, , windshield wiper

1шт.

O6616AB

WIRE - switch to wiper, windshield

1шт.

A7818

SWITCH

- windshield wiper

1шт.

A10888

WIPER - windshield (12 volt) (Diesel tractors)

1шт.

A10889

KNOB - windshield wiper switch

1шт.

A10891

WIPER - windshield (6 volt) (Ignition tractors)

1шт.

A10893

ARM

- windshield wiper

1шт.

A10894

WINDSHIELD WIPER

BLADE - windshield wiper

1шт.

Выбрано товаров: 39
