Запчасти Case 420 (065) - PARTS FOR O9668AB AND O9898AB FRONT TRACTOR LAMPS (55) - ELECTRICAL SYSTEMS

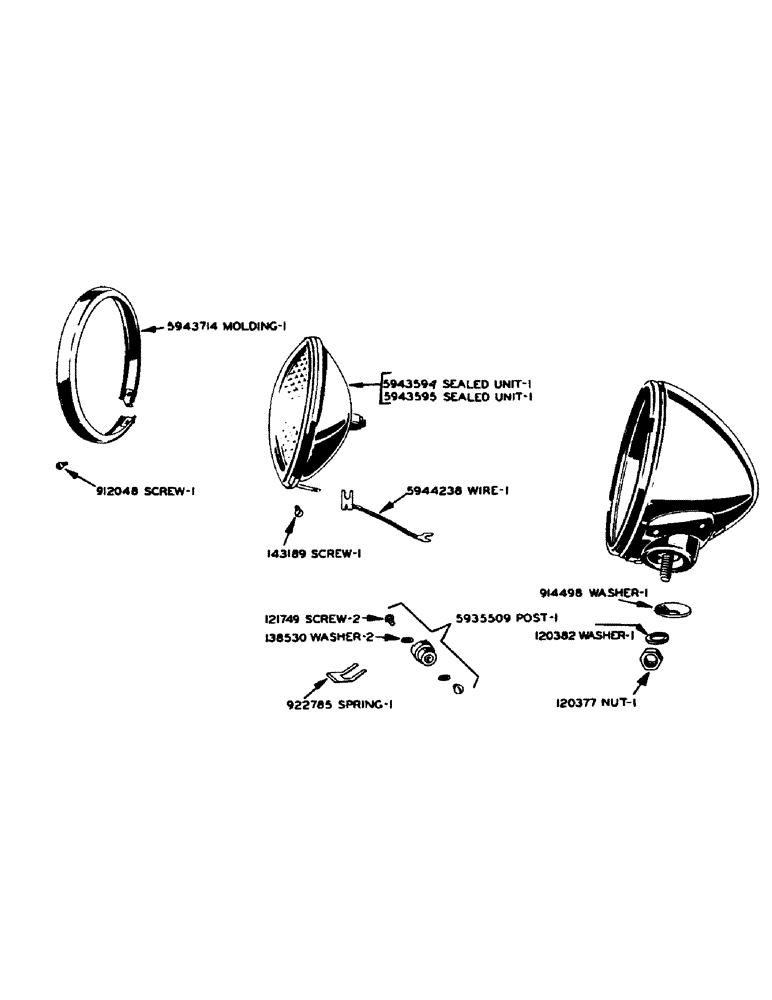

Схема запчастей Case 420 - (065) - PARTS FOR O9668AB AND O9898AB FRONT TRACTOR LAMPS (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

120377

NUT,3/8" - 16, Gr 5

Mounting bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Mounting bolt 3/8"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof, for terminal screw Int Tooth, #8

2шт.

143189

WHEEL ASSY

SCREW - terminal unit

1шт.

912048

SCREW - molding

1шт.

914498

WASHER - bearing, mounting plate

1шт.

922785

SUPPORT

SPRING - terminal post

1шт.

5935509

TERMINAL POST COMPLETE

1шт.

5943594

SEALED UNIT ASSEMBLY - for 6 volt lamp

1шт.

5943595

SEALED UNIT ASSEMBLY - for 12 volt lamp

1шт.

5943714

MOLDING

1шт.

5944238

WIRING ASSEMBLY

1шт.

Выбрано товаров: 13
