Запчасти Case 420 (064) - FRONT TRACTOR LAMP (55) - ELECTRICAL SYSTEMS

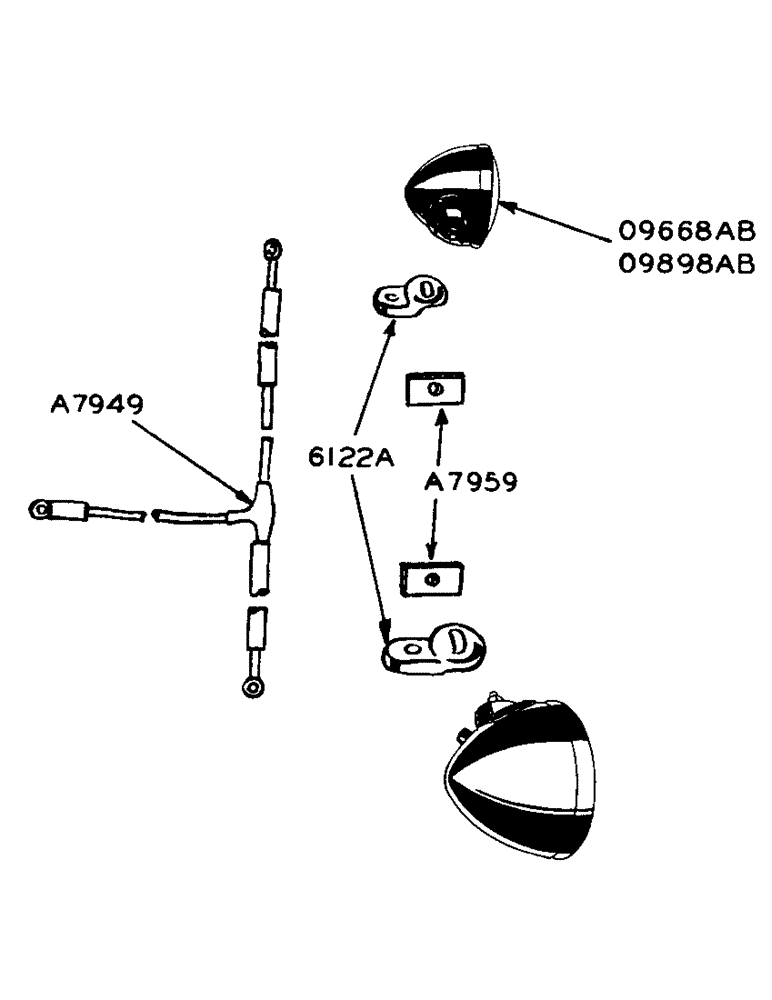

Схема запчастей Case 420 - (064) - FRONT TRACTOR LAMP (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A7949

WIRE - head lamp to light switch

1шт.

A7959

REINFORCEMENT - head lamp

2шт.

6122A

X

BRACKET - head lamp

2шт.

3/8" x 1-3/8" N.F. hex. bolt w/hex. nut and lockwasher (Cadmium plated)

2шт.

O2825AB

X

CLIP - head lamp to light switch wire (On radiator upper shroud)

2шт.

1/4" x 1/2" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9668AB

LAMP - head, sealed unit, 6 volt, side mounting, R.H. or L.H. (For spark ignition tractors)

2шт.

O9898AB

X

LAMP - head, sealed unit, 12 volt, side mounting, R.H. or L.H. (For diesel tractors)

2шт.

Выбрано товаров: 8
