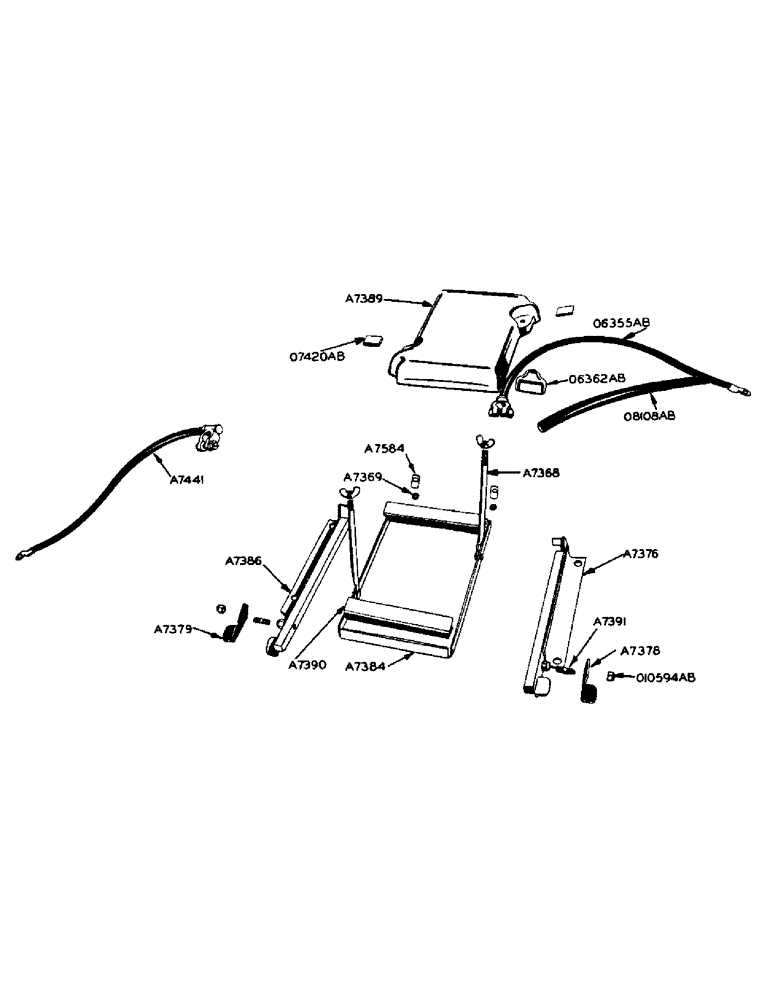

Запчасти Case 420 (062) - BATTERY FOR SPARK IGNITION TRACTORS (55) - ELECTRICAL SYSTEMS

BATTERY - storage, 6 volt (Exide #XF-19) (Not furnished by J.I. Case Company)

1шт.

A7368

BOLT - battery hold down

2шт.

5/16" x 5/8" truss hd. rivet

2шт.

3/8" N.C. wing nut - zinc plated

2шт.

A7369

BUMPER - rubber, for A7384 battery tray

2шт.

A7376

RAIL - battery tray, front, with latch and stud

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

A7378

LATCH - battery tray, front (For A7376 rail)

1шт.

A7379

LATCH - battery tray, rear (For A7386 rail)

1шт.

A7384

TRAY - battery, with hold down bolts and bumpers

1шт.

5/16" x 3/4" carr. bolt with N.C. hex. nut and lockwasher

2шт.

3/8" N.C. wing nut - zinc plated

2шт.

A7386

RAIL - battery tray, rear, with latch and stud

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

A7389

COVER

- battery

1шт.

A7390

PAD - rubber, for battery

2шт.

A7391

STUD

- battery tray latch

2шт.

A7441

CABLE

- battery ground

1шт.

A7584

STRAP - battery tray stop

2шт.

A9956

FUNNEL - for adding electrolyte (For dry charged battery)

1шт.

A9957

RING - code date stamping (For dry charged battery)

1шт.

O6355AB

X

CABLE - battery to starting motor

1шт.

O6362AB

X

COVER - battery positive terminal

1шт.

O7420AB

X

PAD - rubber, for A7389 battery cover

2шт.

O8108AB

LOOM - battery to starting motor cable (14" long)

1шт.

O10594AB

X

STOP NUT - battery tray latch stud (3/8" - 24 N.F. thrd.)

2шт.
