Запчасти Case 420 (059) - INSTRUMENT PANEL AND WIRES FOR DIESEL TRACTORS, INSTRUMENT PANEL, SPARK IGNITION, DIESEL (55) - ELECTRICAL SYSTEMS

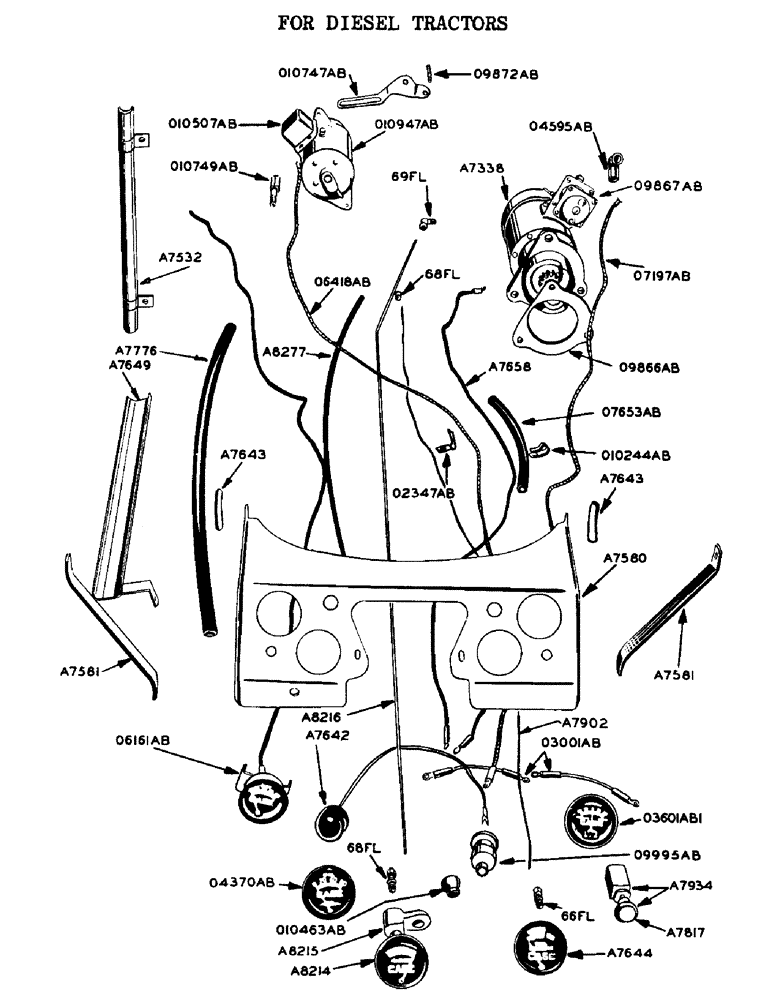

Схема запчастей Case 420 - (059) - INSTRUMENT PANEL AND WIRES FOR DIESEL TRACTORS, INSTRUMENT PANEL, SPARK IGNITION, DIESEL (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A7532

CONDUIT - for wires, fastens to cylinder block

1шт.

5/16" x 1/2" N.C. hex bolt

2шт.

A7580

PANEL - instrument

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" x 3/4" N.C. truss hd. mach. with hex. nut (Cadmium plated)

2шт.

1/4" Shakeproof int. - ext. tooth lockwasher #4014-20-00 (Cadmium plated)

4шт.

A7581

STRAP - instrument panel support

2шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher (Cadmium plated)

2шт.

A7642

LAMP

- dash (12 volt - 15" wire) (Diesel)

1шт.

#6 - 32 x 5/16" Parker-Kalon self tapping rhd. sheet metal screw (Diesel)

2шт.

A7643

MOLDING - rubber, instrument panel

2шт.

A7644

GAUGE

- fuel oil pressure (Diesel)

1шт.

A7649

CONDUIT - rear (L.H. side - bolts to fuel tank support)

1шт.

3/8" x 3/4" N.C. hex. bolt

1шт.

3/8" Shakeproof ext. - int. tooth lockwasher #4020-26-00 (Cadmium plated)

1шт.

5/16" x 5/8" N.C. truss hd. mach. screw w/hex. nut

1шт.

5/16" Shakeproof ext. - int. tooth lockwasher #4018-24-00

1шт.

A7656

X

LAMP - dash (6 volt - 15" wire) (Spark ignition)

1шт.

#6 - 32 x 5/16" Parker-Kalon self tapping rhd. sheet metal screw type F (Spark ignition)

2шт.

A7776

LOOM - master, for wires underneath fuel tank

1шт.

A7817

KNOB

- light switch

1шт.

A7819

KNOB

- distributor ignition switch (Spark ignition)

1шт.

A7819

KNOB

- magneto ignition switch

1шт.

A7902

TUBE - fuel oil pressure gauge (1/8" tube x 58-1/2" long) (Diesel)

1шт.

Imperial no. 68FL connector (1/8" tube size x 1/8" pipe thrd.) (Diesel)

1шт.

Imperial no. 66FL female coupling (1/8" tube size x 1/8" pipe thrd.) (Connects tube to gauge) (Diesel)

1шт.

A7934

SWITCH

- light, with A7817 knob

1шт.

A7935

SWITCH

- distributor ignition, with A7819 knob (See A9532) (Spark ignition)

1шт.

A8214

GAUGE

- fuel vacuum (Diesel)

1шт.

A8215

SUPPORT - fuel vacuum gauge (Diesel)

1шт.

1/2" x 1-3/4" N.C. hex. bolt (Diesel)

1шт.

A8216

TUBE

- fuel vacuum gauge (73" long) (Diesel)

1шт.

Imperial flex. connector no. 68FL (1/8" tube size x 1/8" pipe thrd.) (From tube to vacuum gauge support) (Diesel)

1шт.

Imperial elbow no. 69FL (1/8" tube size x 1/8" pipe thrd.) (From tube to first stage filter tee) (Diesel)

1шт.

A8277

LOOM - fuel oil gauge tube and vacuum gauge tube (Diesel)

1шт.

A8437

KIT

SWITCH - magneto ignition, with A7819 knob (See O8297AB) (Spark ignition)

1шт.

A9532

SWITCH - lock, distributor ignition (Special) (See A7935) (Spark ignition)

1шт.

O2347AB

CLIP - vacuum gauge tube, on cylinder block (Diesel)

1шт.

O3001AB

WIRE - ammeter to light switch (5" long)

1шт.

O3001AB

WIRE - ammeter to starter switch (5" long)

1шт.

O3601AB1

X

AMMETER

1шт.

O4370AB

X

GAUGE - lube oil pressure

1шт.

O6161AB

X

GAUGE - temperature

1шт.

O6168AB

CLIP - ignition switch to magneto wire (On cylinder block) (Spark ignition)

1шт.

O6361AB

CLIP - temperature gauge tube (On water manifold)

1шт.

O6418AB

WIRE - ammeter to generator (76" long)

1шт.

O7524AB

WIRE - ammeter to ignition switch (17-1/4" long) (Spark igntion)

1шт.

O8297AB

SWITCH - lock, magneto ignition (Special) (See A8437) (Spark ignition)

1шт.

O9995AB

X

SWITCH - starter, with O10463AB boot

1шт.

A10151

X

REGULATOR - voltage, for O10748AB 6 volt generator (Electric Auto-Lite no. VRR-4104A)

1шт.

O6418AB

WIRE - generator to ammeter (76" long) (For diesel) See O7197AB

1шт.

O7197AB

WIRE - generator to ammeter (57" long) for spark ignition (See O6418AB)

1шт.

O9872AB

STUD - generator belt adjusting strap

1шт.

3/8" N.F. hex. jam nut w/lockwasher

1шт.

O10507AB

X

REGULATOR - voltage, for O10947AB 12 volt generator (Electric Auto-Lite no. VRT-4104A)

1шт.

O10747AB

STRAP - adjusting, for generator and power steering pump

1шт.

5/16" x 3/4" N.C. hex. hd. cap screw

1шт.

5/16" no. 4018-24 Shakeproof external-internal lockwasher

1шт.

O10748AB

GENERATOR - 14-1/2" amps, 6 volt, 1/2" pulley (Electric Auto-Lite no. GHD-6001AF) (For spark ignition engines)

1шт.

O10749AB

CARRIER - generator

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

5/16" light N.F. hex. w/lockwasher

1шт.

O10947AB

GENERATOR - 10 amps., 12 volt, 1/2" pulley (Electric Auto-Lite no. GHH-6001J) (For diesel engines only)

1шт.

A7338

MOTOR - starting, 12 volt (Electric Auto-Lite no. MCK-4005) (For diesel engines only), starting motor

1шт.

A7338

MOTOR - starting, 12 volt (Electric Auto-Lite no. MCK-4005) (For diesel engines only), starting motor

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher, starting motor

2шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher, starting motor

1шт.

A7342

MOTOR - starting, 6 volt (Electric Auto-Lite no. MAX-4095) (For spark ignition engines)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher, starting motor

2шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher, starting motor

1шт.

A7658

WIRE - starter switch to starting motor (60" long) (For spark ignition) see O7197AB

1шт.

A10846

X

SWITCH - starter solenoid, for A7342 starting motor (Electric Auto-Lite no. SST-4012)

1шт.

O3001AB

WIRE - starter switch to ammeter (5" long), motor

1шт.

A21753

CAP

NIPPLE - starting cable terminal, motor

1шт.

O7197AB

WIRE - ground, starting button to starting motor (57" long) (For diesel)

1шт.

O7653AB

LOOM - starter button to starting motor wires (10" long)

1шт.

O9866AB

X

GASKET - starting motor

1шт.

O9867AB

X

SWITCH - starter solenoid, for A7338 starting motor (Electric auto-lite no. WSM-4101A)

1шт.

O9995AB

X

SWITCH - starter, with O10463AB boot

1шт.

O10244AB

CLIP - for starter switch wires, on fuel tank front support, motor

1шт.

1/4" x 5/8" N.C. truss hd. mach. screw w/hex. nut (Cadmium plated), starting motor

1шт.

O10463AB

BOOT

- rubber, for O9995AB starter switch, starting motor

1шт.

Выбрано товаров: 83
