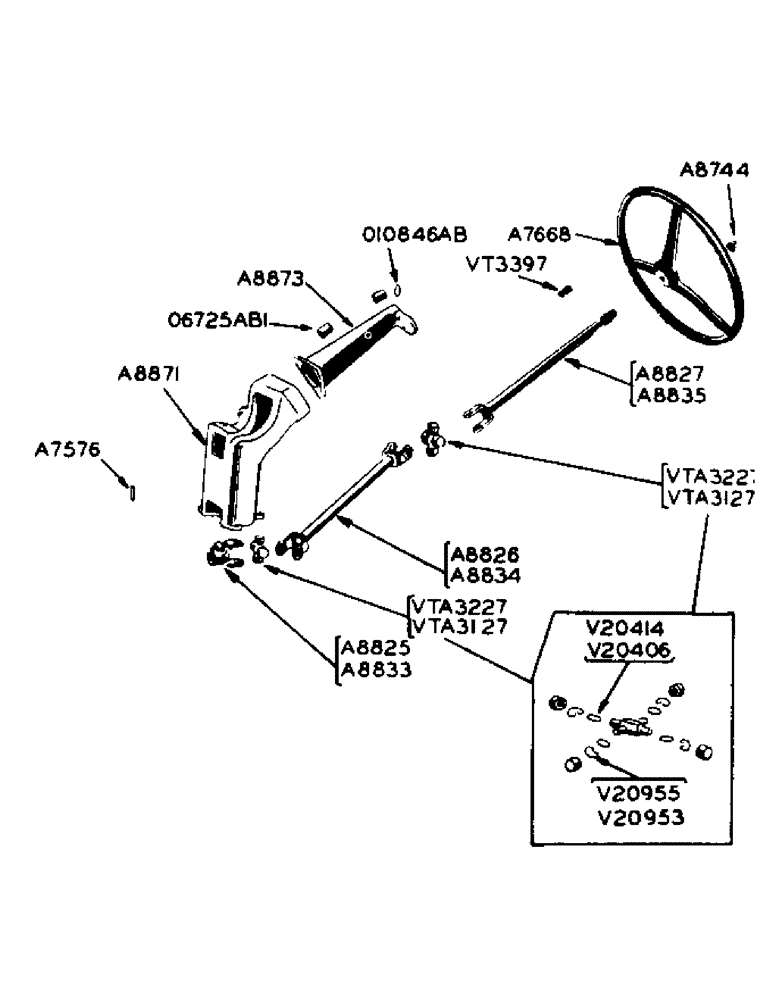

Запчасти Case 420 (102) - STEERING WHEEL AND COLUMN (41) - STEERING

A7574

COLUMN - (Use A7577)

1шт.

A7575

SUPPORT - steering column and fuel tank (Prior to tractor no. 8067630) see A8871

1шт.

A7576

STUD - steering column and fuel tank support

3шт.

1/2" N.F. hex. nut and lockwasher

3шт.

A7577

COLUMN - steering shaft, with 2 - O6725AB1 bushings (Prior to tractor no. 8067630) see A8873

1шт.

1/8" str. Lincoln fitting #5000

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher (Diesel)

2шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher (Diesel)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher (Gasoline)

3шт.

A7668

WHEEL

- steering

1шт.

A8744

NUT

- acorn, steering wheel

1шт.

A8871

SUPPORT - steering column and fuel tank (Tractor no. 8067630 and after) see A7575

1шт.

A8872

COLUMN - (Use A8873)

1шт.

A8873

COLUMN - steering shaft, with 2 - O6725AB1 bushings (Tractor no. 8067630 and after) see A7577

1шт.

1/8" str. Lincoln fitting #5000

2шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher (Diesel)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher (Diesel)

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher (Gasoline)

3шт.

O6725AB1

X

BUSHING - steering shaft column

2шт.

O10846AB

X

OIL SEAL - steering shaft column

1шт.

VT3397

KEY - Woodruff, steering, Serial Range: wheel-shaft

1шт.

A8825

YOKE - clamp type, steering wheel shaft (blood bros. joint)

1шт.

3/8" x 1-3/4" N.C. hex. bolt w/hex. nut and lockwasher, steering wheel shaft (blood bros. joint)

1шт.

A8826

YOKE (17-5/8" to center of yokes), steering wheel shaft (blood bros. joint)

1шт.

A8827

includes yoke for upper joint, steering wheel shaft (blood bros. joint)

1шт.

V20414

WASHER - cork, for universal joint cross shaft (See VTA3227), steering wheel shaft (blood bros. joint)

8шт.

V20955

X

SNAP RING - universal joint cross (See VTA3227), steering wheel shaft (blood bros. joint)

8шт.

VTA3227

X

Universal joint spider and bearing kit (Includes 1 spider, 4 bearings, 4 - V20414 and 4 - V20955), steering wheel shaft (blood bros. joint)

2шт.

A8833

YOKE - steering shaft, clamp type, steering wheel shaft (blood bros. joint)

1шт.

3/8" x 1-3/4" N.C. hex. bolt w/hex. nut and lockwasher, steering wheel shaft (blood bros. joint)

1шт.

A8834

YOKE - (17-5/8" to center of yokes), steering wheel shaft (blood bros. joint)

1шт.

A8835

includes yoke for upper joint, steering wheel shaft (blood bros. joint)

1шт.

V20406

BUSHING

WASHER - cork, for universal joint cross (See VTA3127), steering wheel shaft (blood bros. joint)

8шт.

V20953

ROD

SNAP RING - universal joint cross (See VTA3127), steering wheel shaft (blood bros. joint)

8шт.

VTA3127

X

Universal joint spider and bearing kit (Includes 1 spider, 4 bearings 4 - V20406 and 4 - V20953), steering wheel shaft (blood bros. joint)

2шт.
