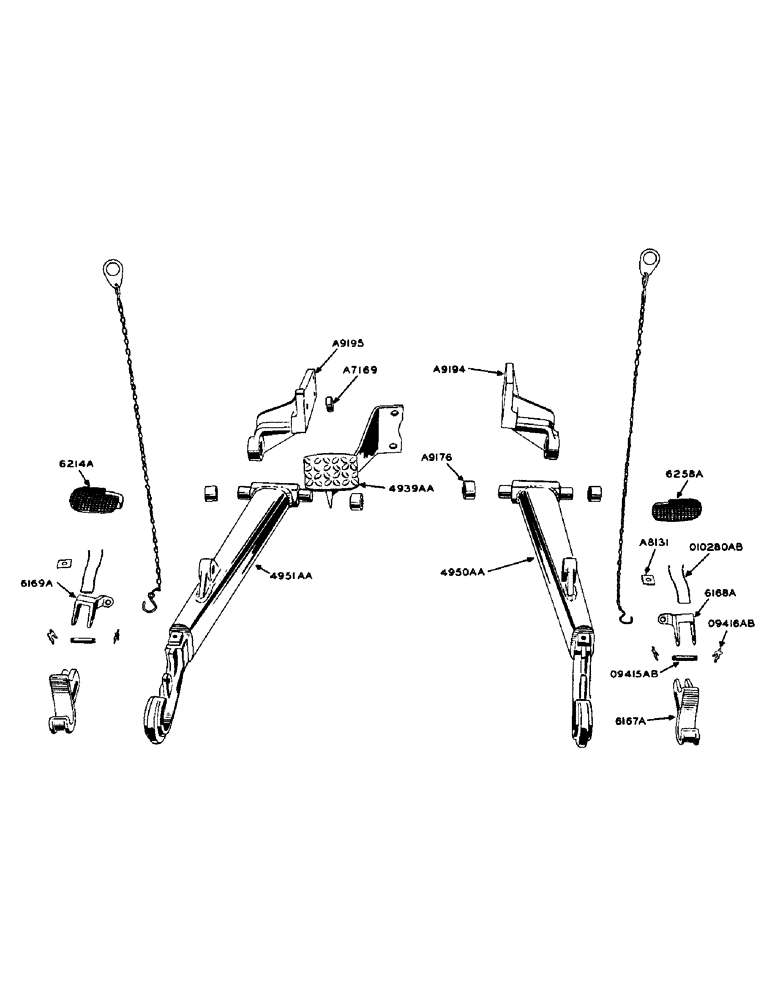

Запчасти Case 420 (142) - EAGLE HITCH DRAFT ARMS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

A7966

CHAIN - latch, eagle hitch (31-5/8" long)

2шт.

A8131

X

PLATE - eagle hitch latch spring

2шт.

A9176

BUSHING

- (1.361" O.D.) draft arm pivot pin (Use with A9194 and A9195 brackets)

4шт.

A9192

BRACKET - (Use A9194)

1шт.

A9193

BRACKET - (Use A9195)

1шт.

A9194

BRACKET - draft arm pivot, with A9176 bushings R.H.

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

2шт.

A9195

BRACKET - draft arm pivot, with A9176 bushing, L.H.

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

2шт.

6167A

X

LATCH EAGLE HITCH

2шт.

6168A

X

LOCK - eagle hitch latch, R.H.

1шт.

6169A

X

LOCK - eagle hitch latch, L.H.

1шт.

6214A

X

STEP - latch, L.H.

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

6258A

X

STEP - latch, R.H.

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

O9415AB

X

PIN - latch, eagle hitch

2шт.

O9416AB

X

RING - retaining, latch pin

4шт.

O10280AB

X

SPRING - latch

2шт.

4939AA

STEP - upper L.H.

1шт.

4950AA

ARM - draft, eagle hitch, R.H.

1шт.

4951AA

ARM - draft, eagle hitch, L.H.

1шт.
