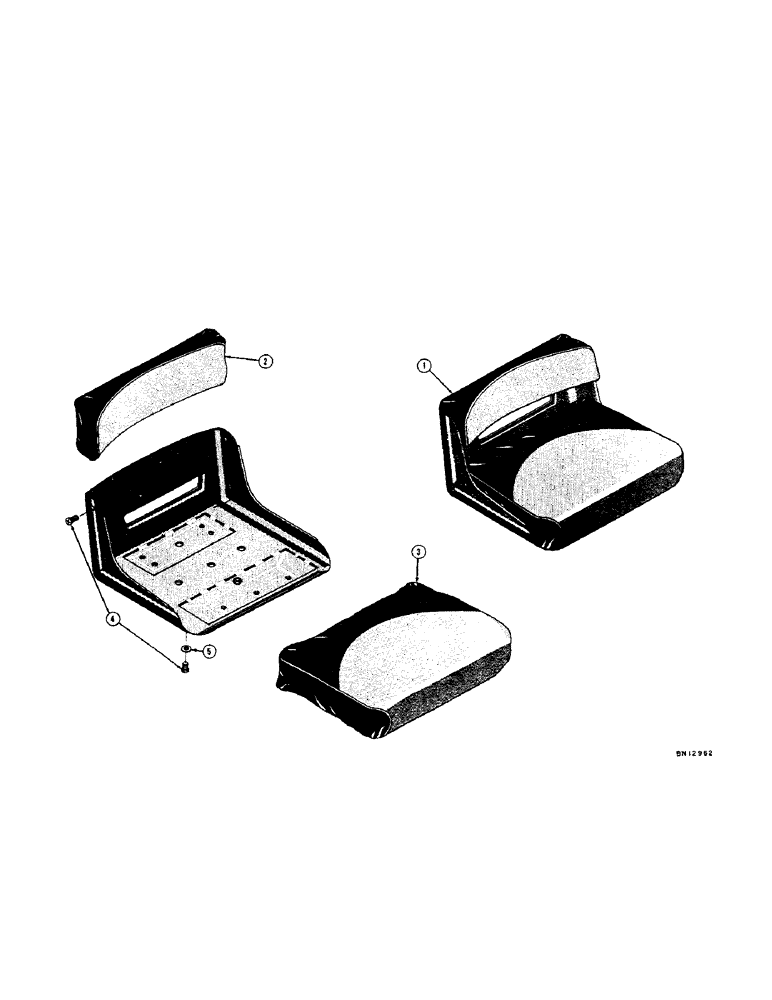

Запчасти Case 42 (08[A]) - SEAT

1

D28501

SEAT - complete (With yellow shell), Inlcudes: Ref. 2 - 5

1шт.

D29157

X

SEAT - complete (With desert sunset shell), Inlcudes: Ref. 2 - 5

1шт.

2

D28821

X

BACKREST - seat (Silver and black)

1шт.

3

D28822

X

CUSHION - seat (Silver and black)

1шт.

4

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- machine, Phillips round head (zinc) 1/4" - 20 NC x 1/2"

5шт.

5

195-518

WASHER,1/4", SAE

- plain, zinc plated (9/32" I.D. x 5/8" O.D. x 1/16" thick)

2шт.
